AIR BLOWING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 17, 2016
app pub date -
May 17, 2013
filing date -
May 17, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

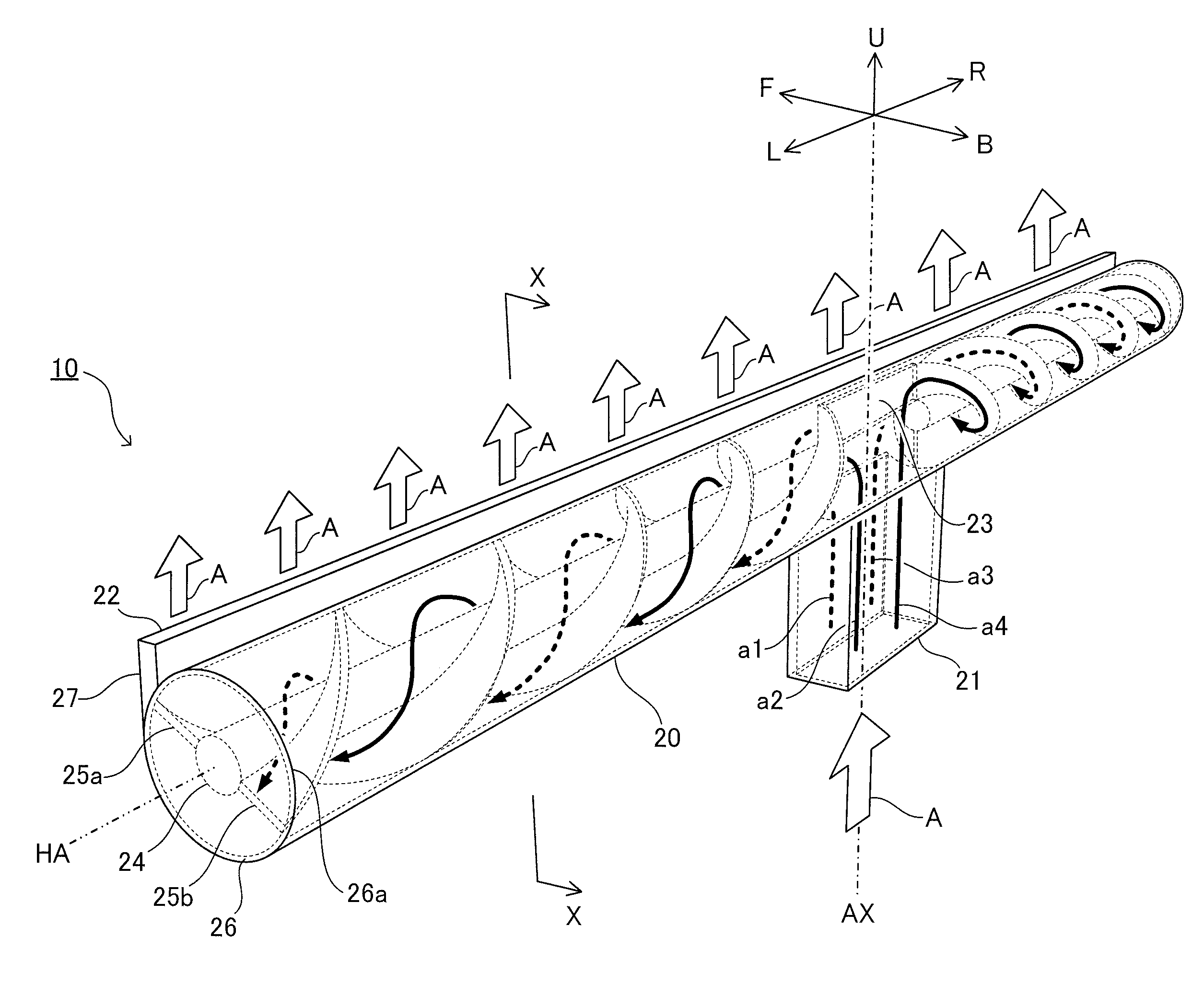

Air blowing device including: an air inlet: an airflow path configured to allow air introduced from the air inlet to flow therethrough; and an air outlet configured to blow out the air flowing in the airflow path. In this air blowing device, the airflow path includes a helical flow path that is a helical airflow path extending as separating from the air inlet. Further, the helical flow path includes an opening formed in an outer circumferential surface of the helical flow path. Further, the opening is connected to the air outlet through a discharge path configured to guide the air passing through the opening to the air outlet. In addition, the discharge path is formed to extend from the opening in a forward direction of a turning direction of the air flowing in the helical flow path.
First Claim
Other Claims data not available
