POWER TRANSMITTER, POWER SUPPLY DEVICE, POWER CONSUMPTION DEVICE, POWER SUPPLY SYSTEM AND METHOD FOR PRODUCING POWER TRANSMITTER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 10, 2016
app pub date -
Jun 26, 2014
filing date -
Jun 27, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

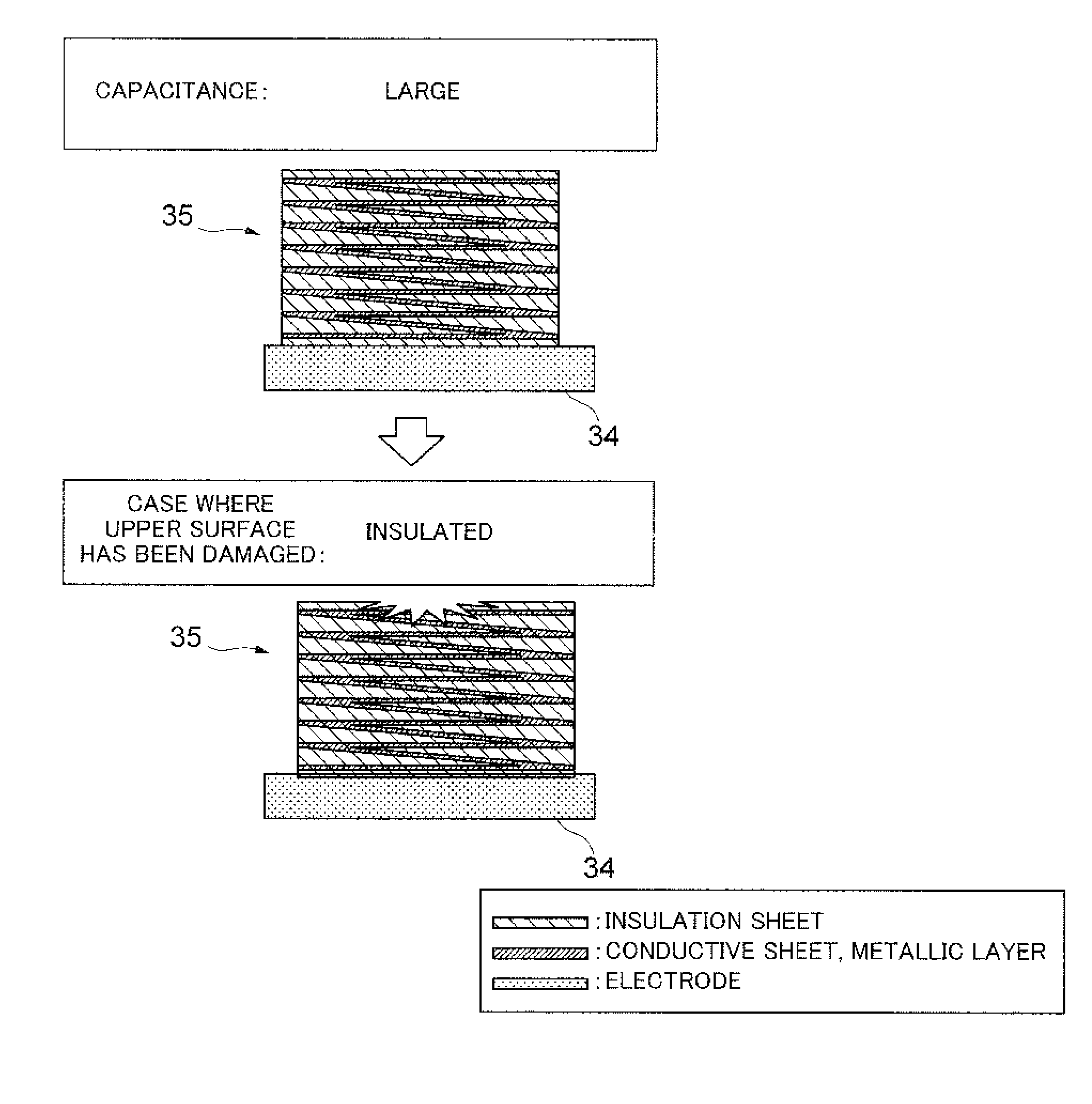

The power transmitter used for wireless power supply, includes a structure in which a sheet of a conductive body forming plural layers stacked in a thickness direction in a dielectric body. The dielectric body is also located between the plural layers, and different layers of the sheet of the conductive body are electrically connected. The power transmitter easily ensures the insulation properties at a position where the electrode is disposed while improving the power transmission efficiency in the case of the wireless power supply with the electric field coupling system.
