EXPLOSION-PROTECTED ARRANGEMENT OF ELECTRICAL AND/OR ELECTRONIC COMPONENTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 10, 2016
app pub date -
Apr 15, 2014
filing date -
Apr 26, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

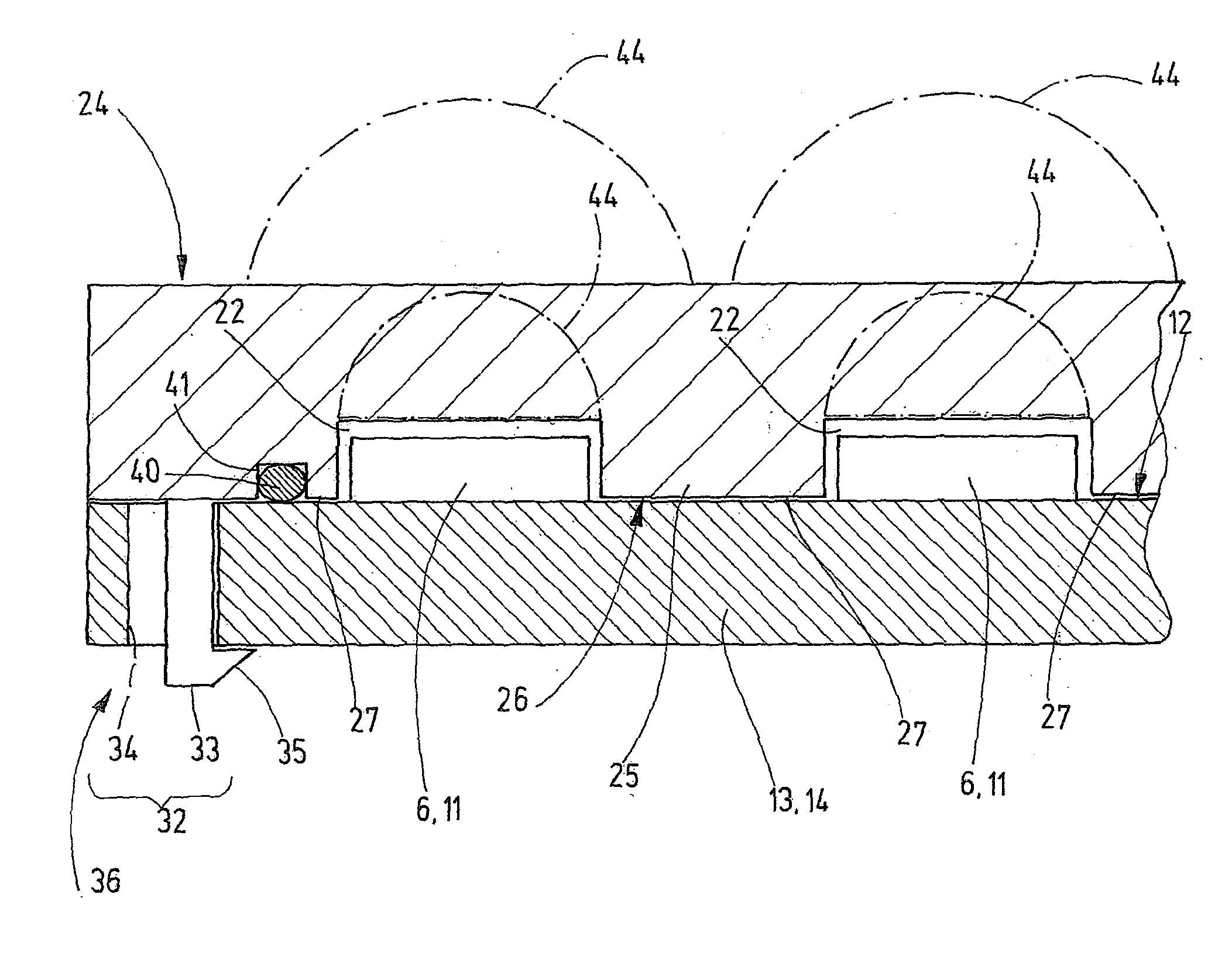

An explosion-protected arrangement (5) is provided that can be formed of a plurality of modules (49). Each module (49) has at least one covering part (20) and at least one carrier (13). The carrier (13) has a carrier face (12) on which electrical and/or electronic components (6) are arranged and in electrical contact. The covering body (20) has an underside (21) facing the carrier face (12) in which a plurality of receiving chambers (22) is formed. Each receiving chamber (22) is open via an opening (23) only on the underside (21) and is otherwise closed by the covering body (20). Webs (25) having web faces (26) surround the openings (23) and receiving chambers (22). When a connection is made between the covering body (20) and the carrier (13), each component (6) is surrounded by a web (25) with the web face (26) thereof forming a flame-proof gap (27) with an associated section of the carrier face (12).
First Claim
Other Claims data not available
