REFLECTOR ASSEMBLY HAVING A PLURALITY OF REFLECTORS AND SEMICONDUCTOR LIGHT SOURCES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 10, 2016
app pub date -
Apr 24, 2014
filing date -
Apr 25, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

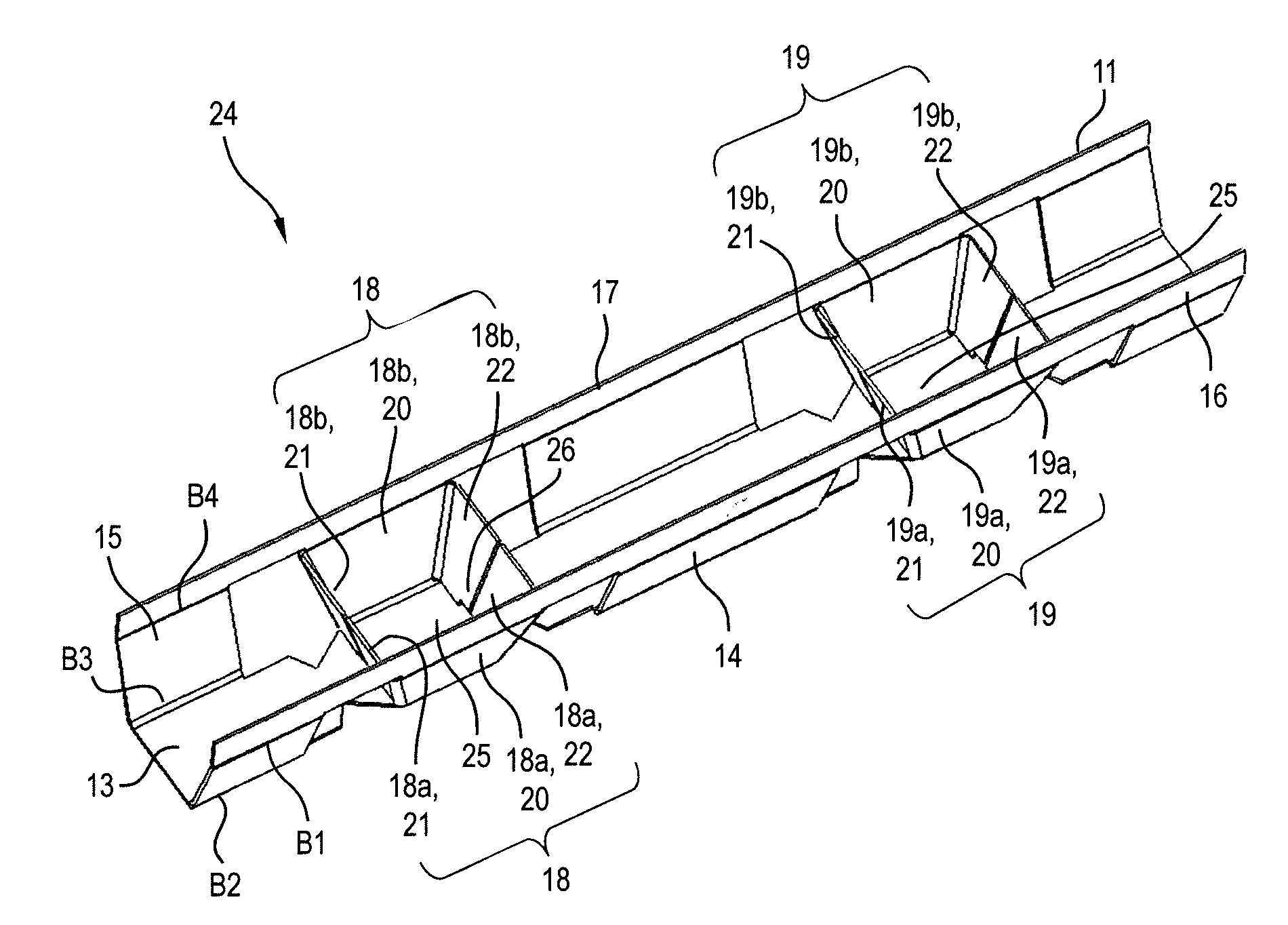

A reflector assembly for a lighting device including a plurality of reflectors for at least one semiconductor light source each, wherein the reflectors are reflector sub-regions of a common, continuous sheet-metal part and the reflector sub-regions have wing regions bent at least partially from the sheet-metal part. A lighting device includes at least one reflector assembly, wherein at least one semiconductor light source is arranged on the sheet-metal part. A method may be used to produce a reflector assembly, wherein the method includes at least the following steps: introducing slits into a sheet-metal part in order to provide wing regions that can be bent from the sheet-metal part; and bending over the sheet-metal part including bending out the wing regions in order to form at least one reflector. The above can be applied in particular to lamps for general lighting, in particular for area lighting.
First Claim
Other Claims data not available
