DEVICE FOR THE SUPPORT AND SAFE MOVEMENT OF CABINET DOORS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 10, 2016
app pub date -
Jul 29, 2015
filing date -
Sep 9, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

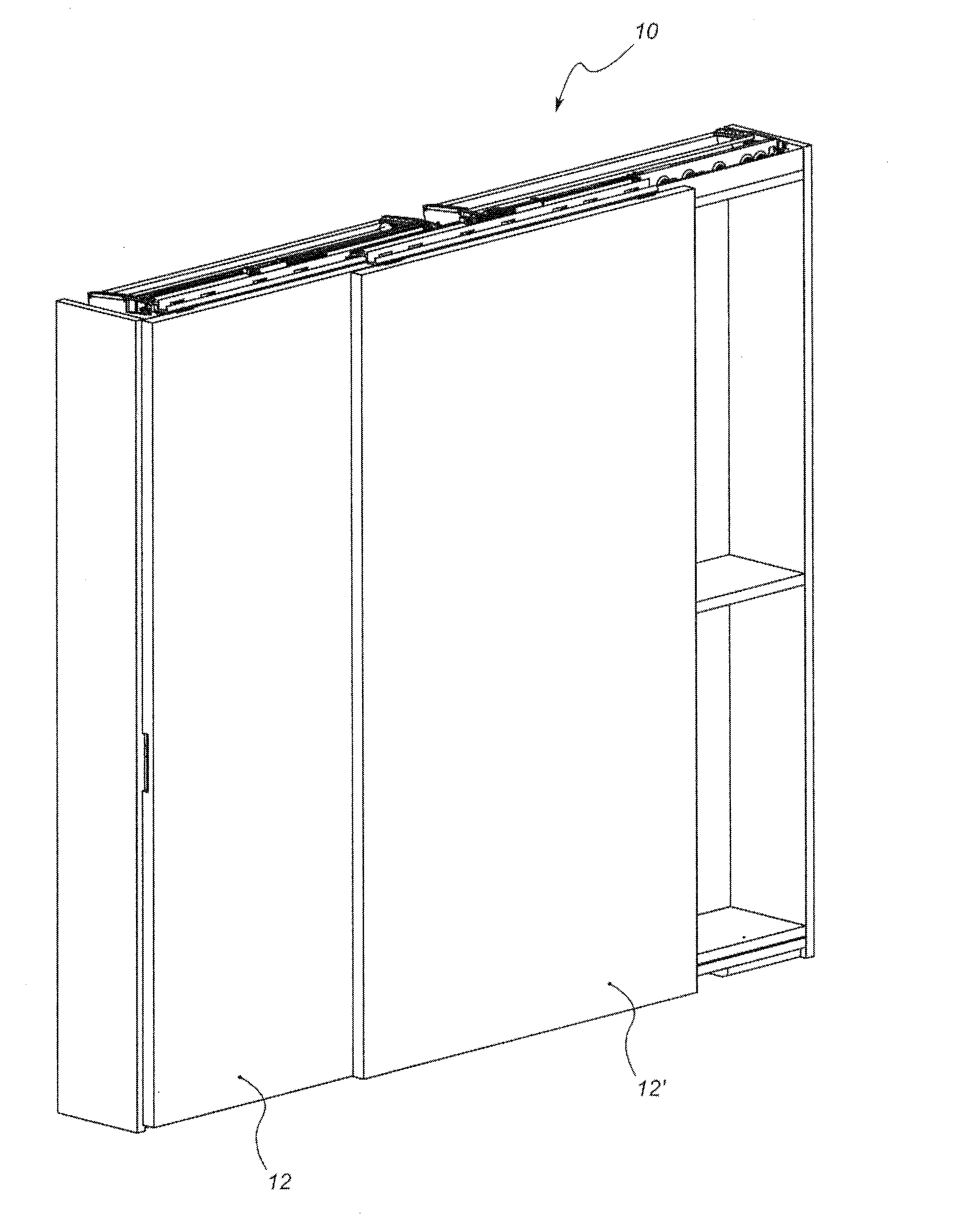

The invention relates to an improved device for the support and safe movement of doors (12-12) of cabinets (10), wherein such doors are movable from a closed condition which defines the total alignment thereof, to an open position in which they are, alternatively conducted to protrude forward to then be moved open by longitudinal sliding surmounting those adjacent to them. Said device is coupled to the top of the cabinet (10) and comprises, for each of said doors, a plurality of wheels or bearings with a vertical orientation (14,16), arranged on two different horizontal lines defined by metal sections, with the wheels (14) arranged so as to freely rotate inside a fixed frame or drum (18) and the wheels (16) rotatably fixed to a section (20) belonging to a carriage fixed to each door (12, 12′). Said section and relative carriage are movable in a transverse direction to conduct said wheels (14) to align with the wheels (16) on a single sliding line.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP2995759 | Jul 30, 2015 |
International Classification(s)
- 2015 Application Filing Year
- A47B Class
- 1135 Applications Filed
- 954 Patents Issued To-Date
- 84.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A47B Class
- 17.14 % this patent is cited more than
- 9 Age
