Battery Balancing with Resonant Converter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 9, 2015
filing date -
Jun 3, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

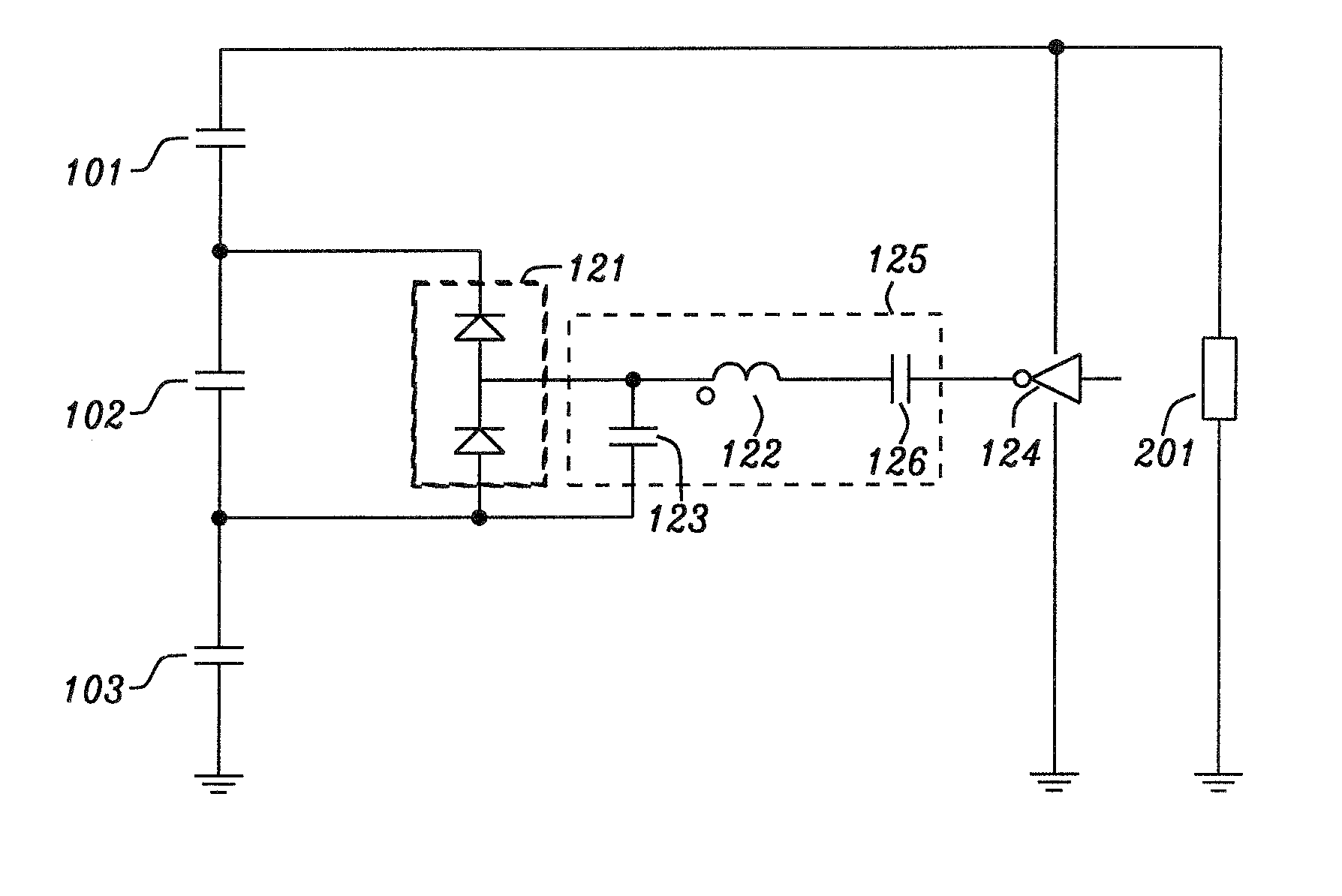

A system and a method for charging of rechargeable batteries is presented. In particular, The charging of battery stacks comprising a plurality of battery cells or storage cells is presented. The system is configured to charge a first subset of storage cells from a storage comprising a serial arrangement of storage cells. The system comprises a driver circuit configured to generate an AC voltage comprising a frequency component at an AC frequency from an electric energy source at a DC voltage. Furthermore, the system comprises a first resonance circuit configured to amplify and/or attenuate the AC voltage as a function of the AC frequency, to yield a modified AC voltage. In addition, the system comprises a first rectifying unit configured to generate a modified DC voltage from the modified AC voltage, and configured to provide electric energy at the modified DC voltage to the first subset of storage cells.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP2811609 | Jun 03, 2013 |
| WO | A1 | WO2014195212 | May 28, 2014 |
International Classification(s)
- 2015 Application Filing Year
- H02J Class
- 4445 Applications Filed
- 3538 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02J Class
- 11.45 % this patent is cited more than
- 9 Age
