PRINTED BOARD CONNECTING STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 25, 2016
app pub date -
Aug 6, 2015
filing date -
Aug 25, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

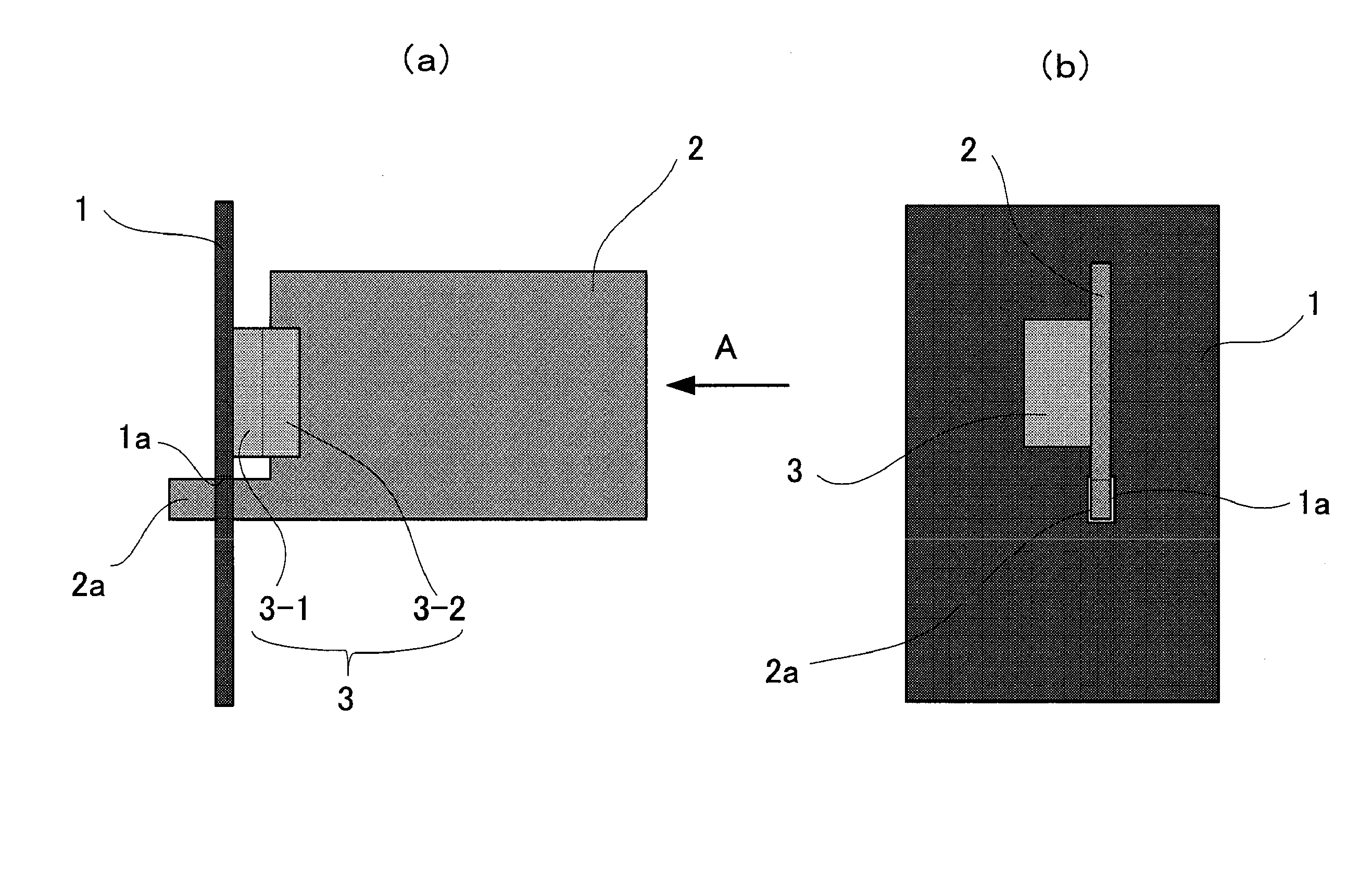

A printed board connecting structure including a first printed board provided with either a male or female connector as a first connector, and a second printed board provided with the other connector (the female or male connector) as a second connector, wherein the first printed board and the second printed board are connected through mating of the first connector and the second connector. The first printed board comprises a guiding hole on a board surface in the vicinity of the first connector; and the second printed board comprises a guiding protrusion for guiding the mating of the first connector and the second connector by first engaging with the guiding hole of the first printed board when the first connector and the second connector are to be mated.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2016046402 | Aug 25, 2014 |
| TW | A | TW201611677 | Jul 15, 2015 |
| CN | A | CN105390870 | Aug 06, 2015 |
International Classification(s)
- 2015 Application Filing Year
- H01R Class
- 3228 Applications Filed
- 2915 Patents Issued To-Date
- 90.31 % Issued To-Date
