ANTENNA DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 18, 2016
app pub date -
Apr 7, 2014
filing date -
Apr 5, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

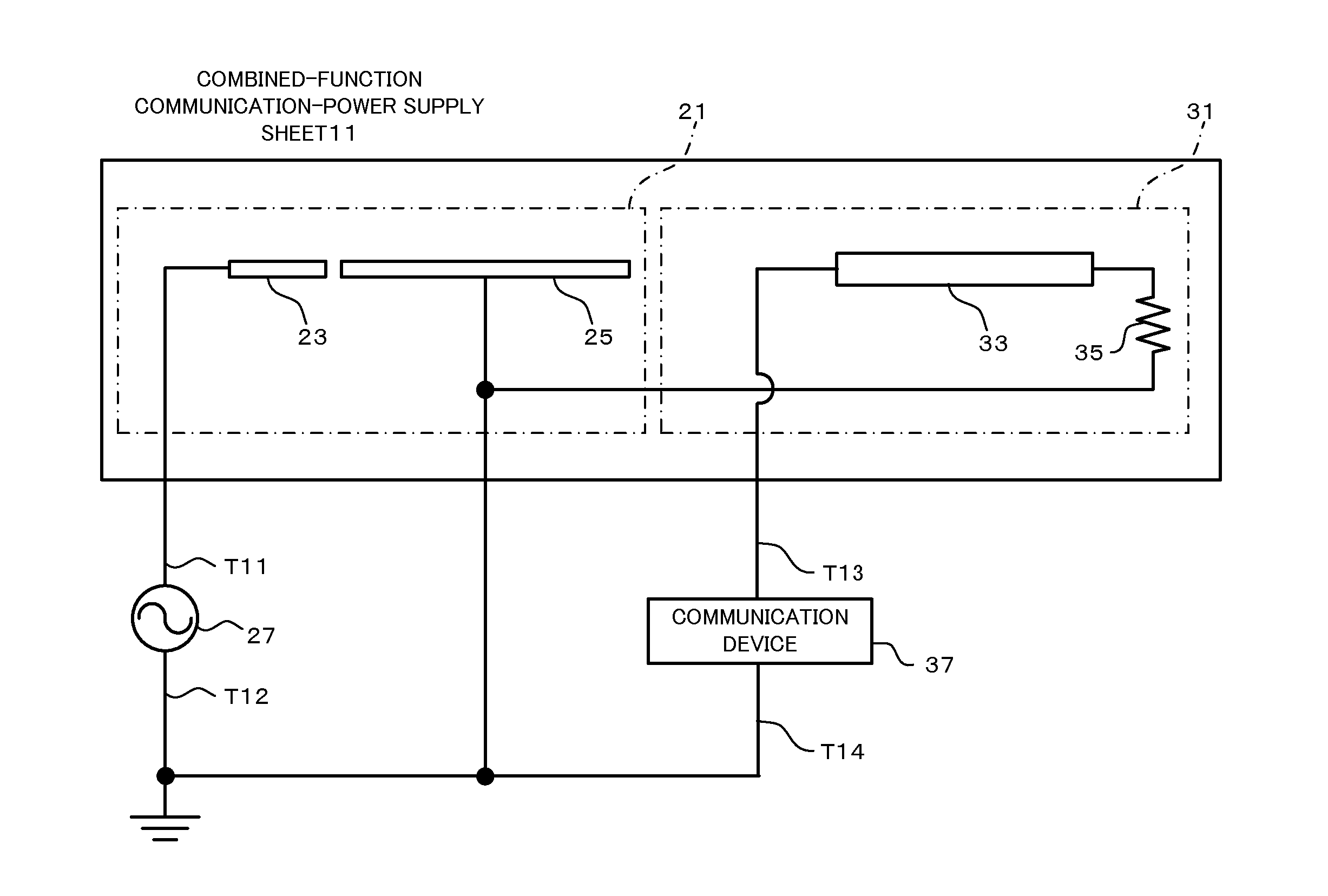

An antenna device is equipped with a power supply part (21) and a communication part (31). The power supply part (21) is equipped with a first active electrode (23) and a first passive electrode (25), and a high frequency voltage is applied between the first active electrode (23) and first passive electrode (25) by a high frequency generator (27). The communication part (31) is equipped with a line part (33), which is electromagnetically coupled with an external device and connected at one end to a power supply point, and a terminal resistor (35) connected to the other end of the line part (33). A signal terminal of a communication device (37) is connected to the power supply point, and the ground terminal of the communication device (37) is connected to the terminal resistor. The antenna device has an overall sheet-like shape.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2014204348 | Apr 05, 2013 |
| CN | A | CN105284003 | Apr 07, 2014 |
| WO | A1 | WO2014163207 | Apr 07, 2014 |
| EP | A1 | EP2985835 | Apr 07, 2014 |
| TW | A | TW201442336 | Apr 07, 2014 |
