LADDER FOR MAST ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 18, 2016
app pub date -
Aug 18, 2014
filing date -
Aug 18, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

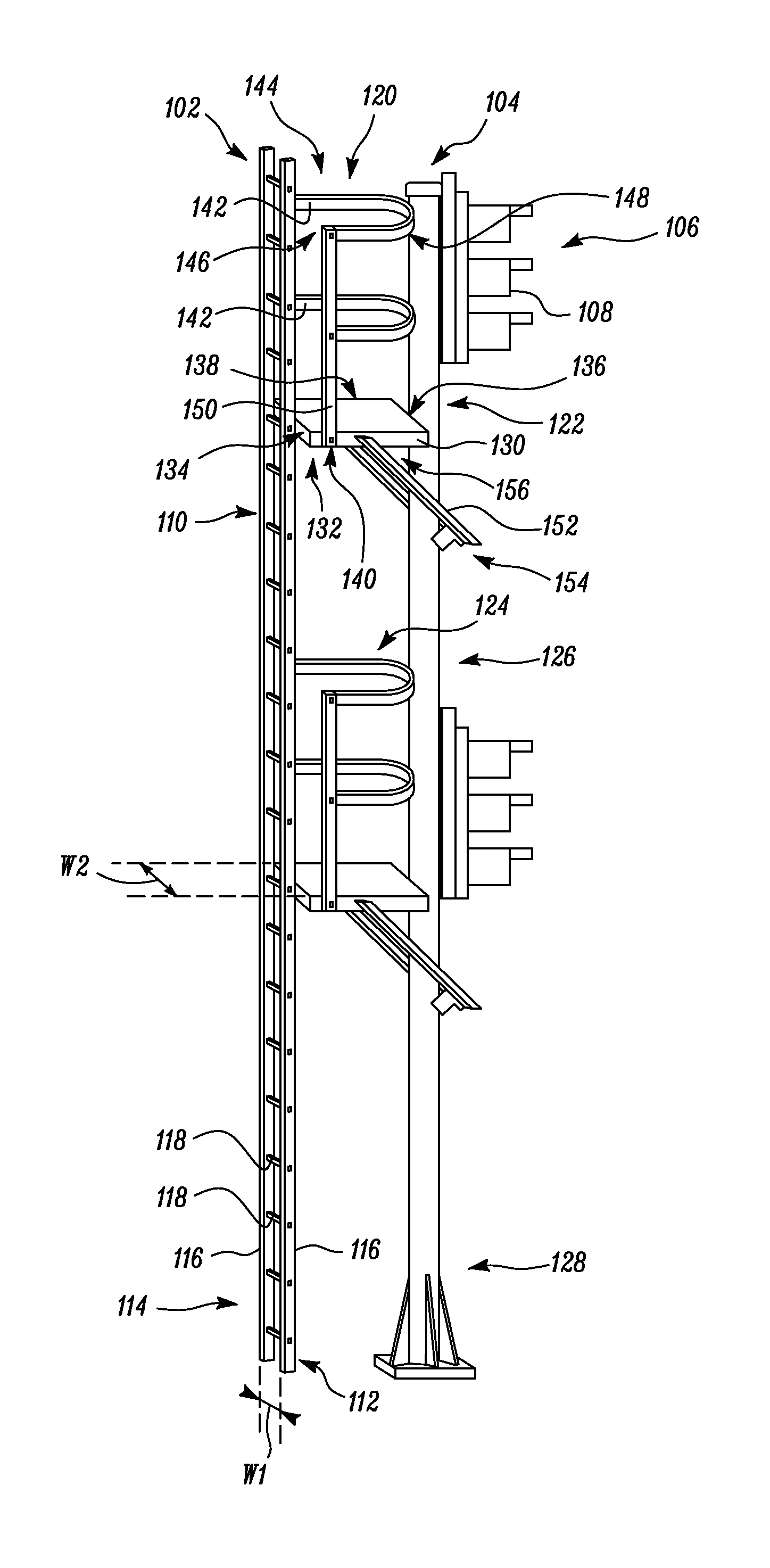

A ladder for a mast assembly is provided. The ladder includes a frame assembly having a pair of side rails and a plurality of rungs. The ladder also includes a sub-assembly affixed to an interior facing side of the frame assembly. The sub-assembly includes a platform provided at a bottom section of the sub-assembly. The sub-assembly also includes a plurality of support rails provided at a top section of the sub-assembly. A first end of each of the support rails is pivotably coupled to the frame assembly. A second end of each of the support rails is configured to contact with the mast assembly when the ladder is in a deployed position with respect to the mast assembly. The frame assembly and the at least one sub-assembly is collapsible against the mast assembly.
First Claim
Other Claims data not available
