Liquid filled bottle having a thin cover member provided with a flexible reinforcing element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Apr 10, 2014
filing date -
Apr 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

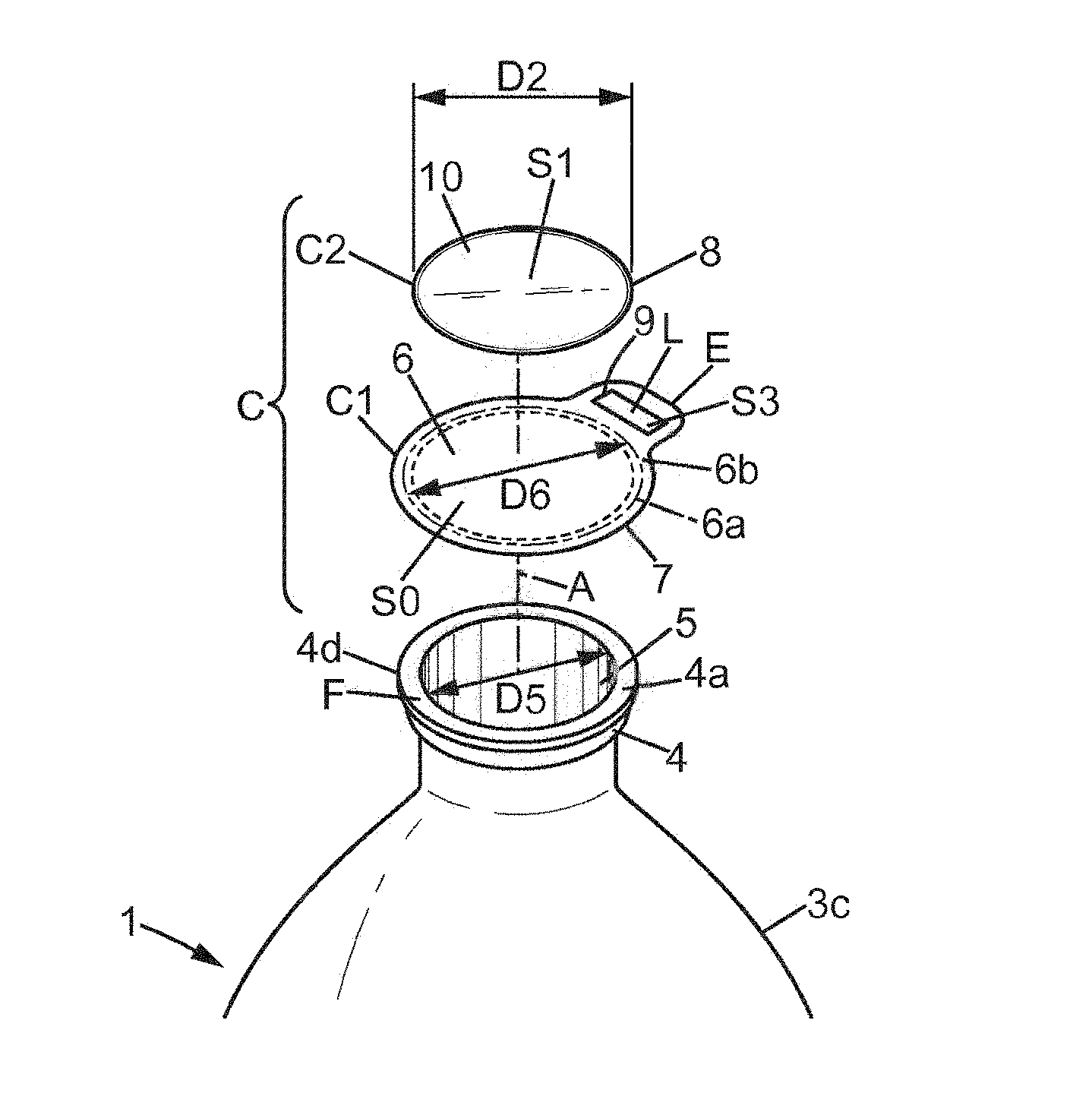

The plastic bottle (1) is filled with liquid and provided with a rigid neck (4) that defines a narrow opening (5) with an inner diameter (D5) typically inferior to 40 mm. A flexible sheet-like cover member (C), having a lower closing element and an upper reinforcing element, is provided to seal the opening. A reinforcing portion (10) of the reinforcing element (C2) is directly fastened to a central portion (6) of the closing element in contact with the annular upper face (F) of the neck and reinforces this central portion. A first surface (S1) suitable for displaying label information is defined by the reinforcing portion. The outer rim (8) of the reinforcing element extends along or close to a rim (4d) of the face (F). An optional pull tab (9) forming part of the closing element (C1) and/or an extension portion forming part of the reinforcing element (C2) may be provided.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
