Dual Drive Adapter for Kitchen Appliance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 13, 2015
filing date -
Aug 15, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

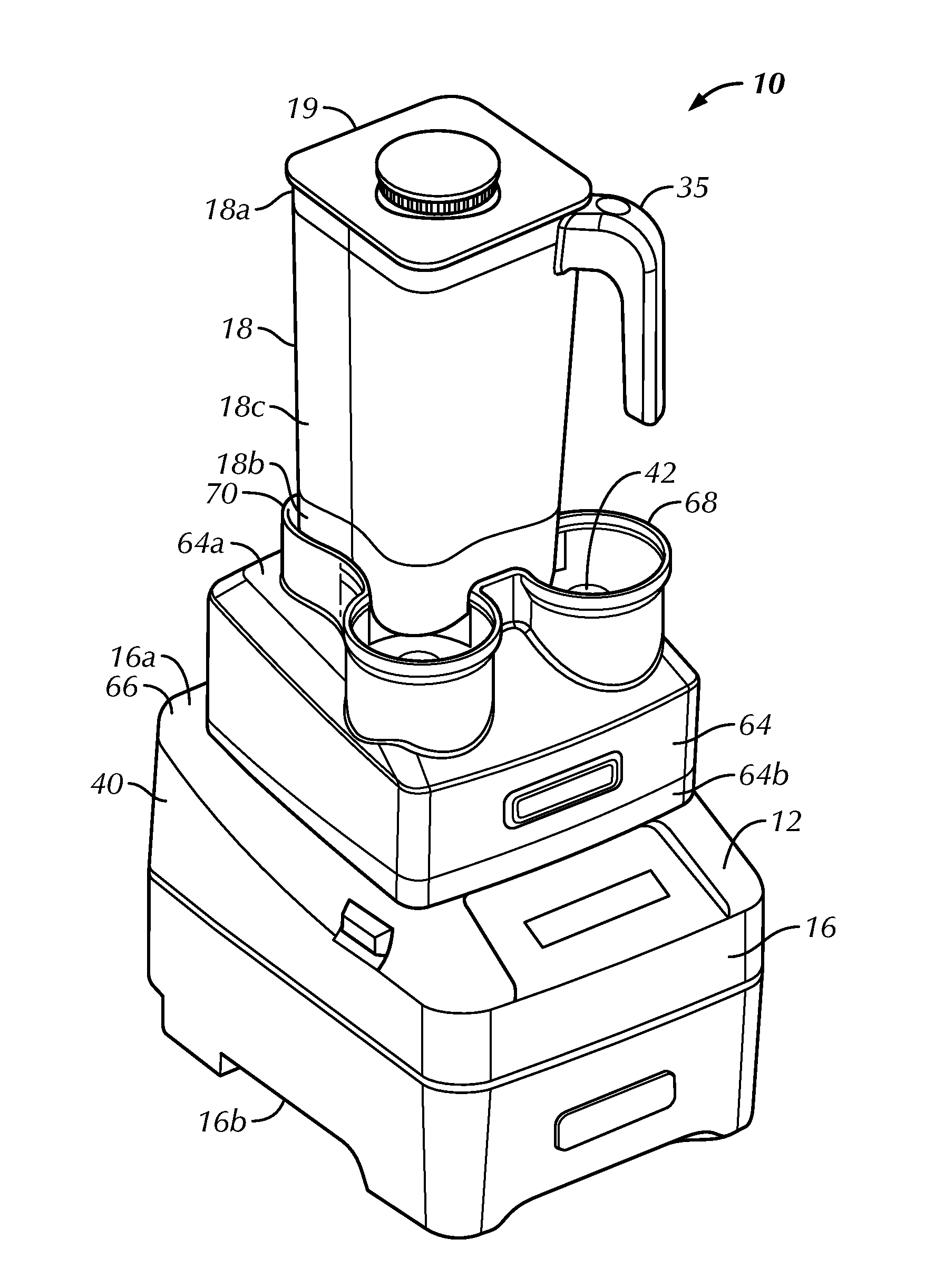

An adapter for a blender is provided. The blender includes a base having a housing enclosing a motor. The adapter includes a first drive shaft having a clutch hub configured to be drivingly coupled to a first set of blending blades and a first pulley, a second drive shaft having a spline configured to be drivingly coupled to a second set of blending blades and a second pulley configured to be operatively coupled to the motor, and a belt which engages the first and second pulleys. The clutch hub and the spline are positioned outside of the housing. Operation of the motor causes rotation of the second pulley, the second drive shaft and the second set of blending blades. The rotation of the second pulley causes movement of the belt which, in turn, causes rotation of the first pulley, the first drive shaft and the first set of blending blades.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | U | CN205197851 | Aug 17, 2015 |
International Classification(s)
- 2015 Application Filing Year
- A47J Class
- 1195 Applications Filed
- 840 Patents Issued To-Date
- 70.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A47J Class
- 16.04 % this patent is cited more than
- 9 Age
