Push-button switch device for vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Feb 25, 2014
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

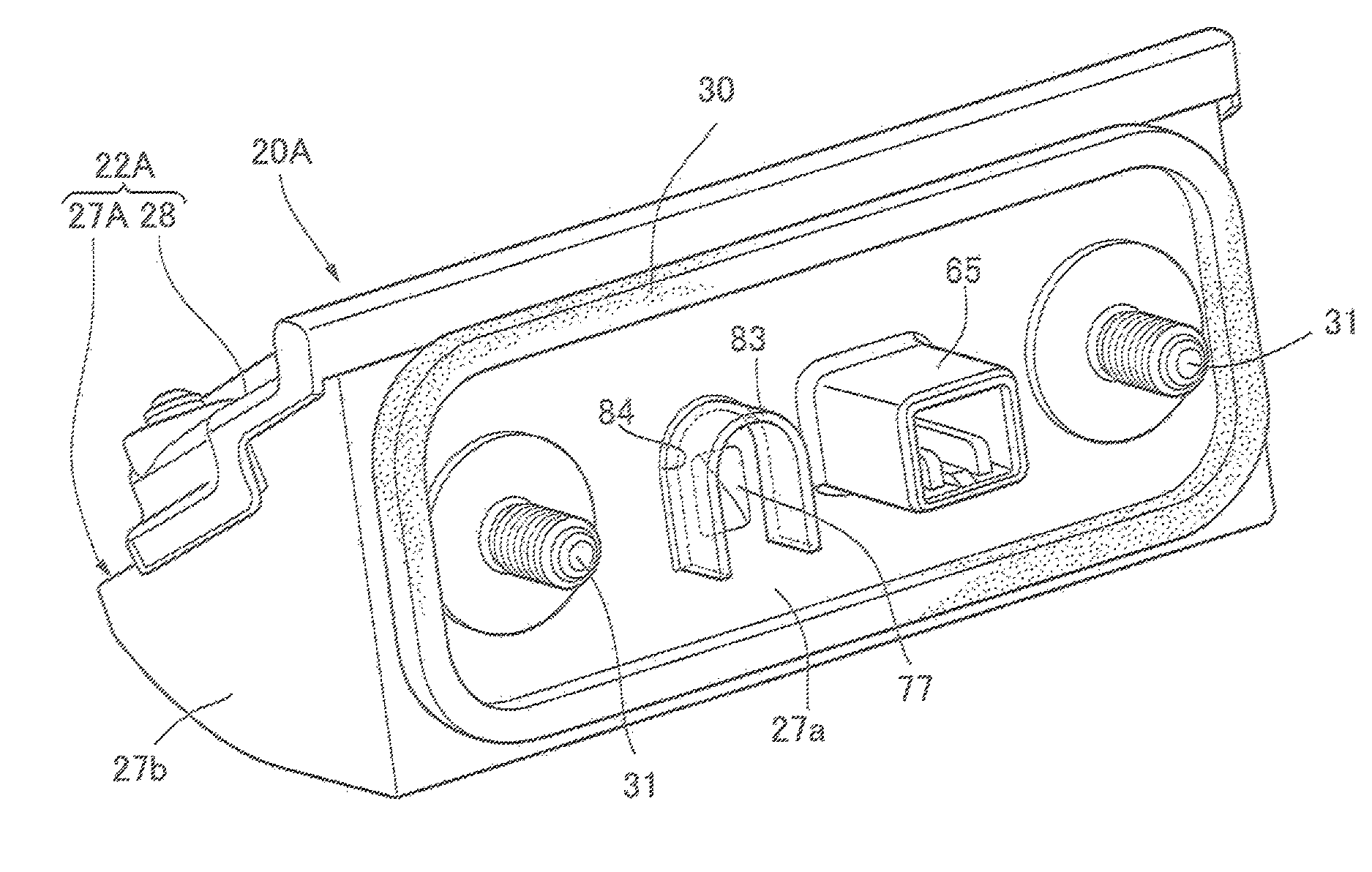

In a push-button switch device for a vehicle including a first case member fixed to a vehicle body or a lid openably and closably mounted on the vehicle body, a second case member mounted on the first case member forming a case together with the first case member, a push-button supported on the case configured for a pushing operation, and a switch housed in and fixed to the case in a state in which waterproofness is ensured while a switching mode thereof is changed in response to a pushing operation of the push-button, the entrance of water into the case is suppressed as far as possible. A labyrinth passage bent up and down is formed between the first and second case members further inside than an abutment part formed by mutual abutment of at least upper edges among peripheral edges of the first and second case members.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E05B Class
- 824 Applications Filed
- 697 Patents Issued To-Date
- 84.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E05B Class
- 26.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
