RESIN CAGE FOR TAPERED ROLLER BEARING AND TAPERED ROLLER BEARING INCLUDING THE RESIN CAGE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 4, 2014
filing date -
Apr 4, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

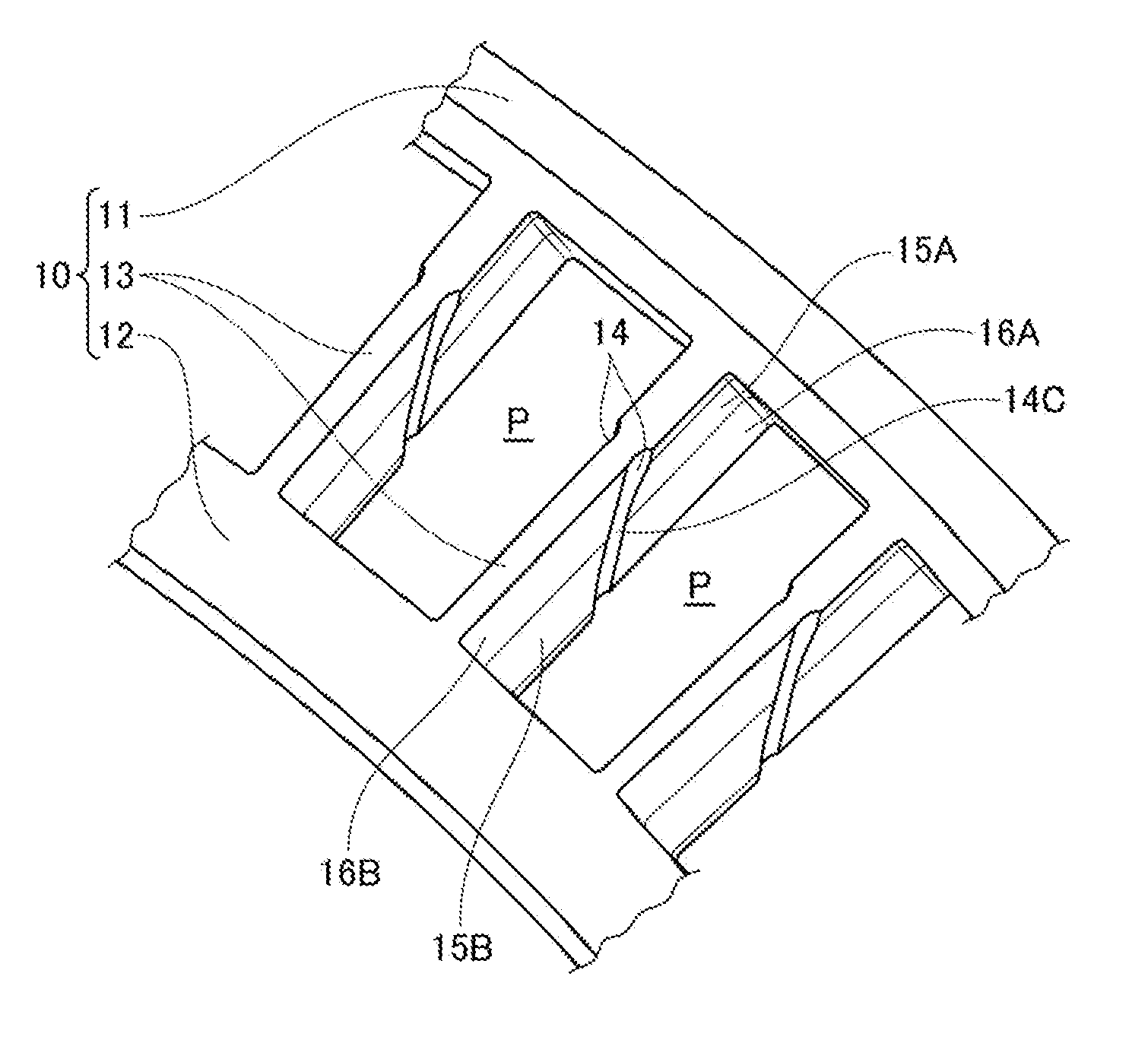

Provided is a resin cage for a tapered roller bearing in which a mold parting line which is extended in an axial direction is formed in a pillar portion defining a pocket. On facing surfaces of adjacent pillar portions, on an outer diameter side from the mold parting line, a first conical surface which slides in contact with an outer peripheral surface of a tapered roller is formed, and a first flat surface in a radial direction is formed in a portion on the outer diameter side from the conical surface. On an inner diameter side from the mold parting line, a second conical surface which slides in contact with the outer peripheral surface of the tapered roller is formed, and a second flat surface in a radial direction is formed in a portion on the inner diameter side from the second conical surface.
First Claim
Other Claims data not available
