NET WRAP AND TWINE REMOVAL SYSTEM AND METHODS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 4, 2016
app pub date -
Aug 1, 2014
filing date -
Aug 1, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

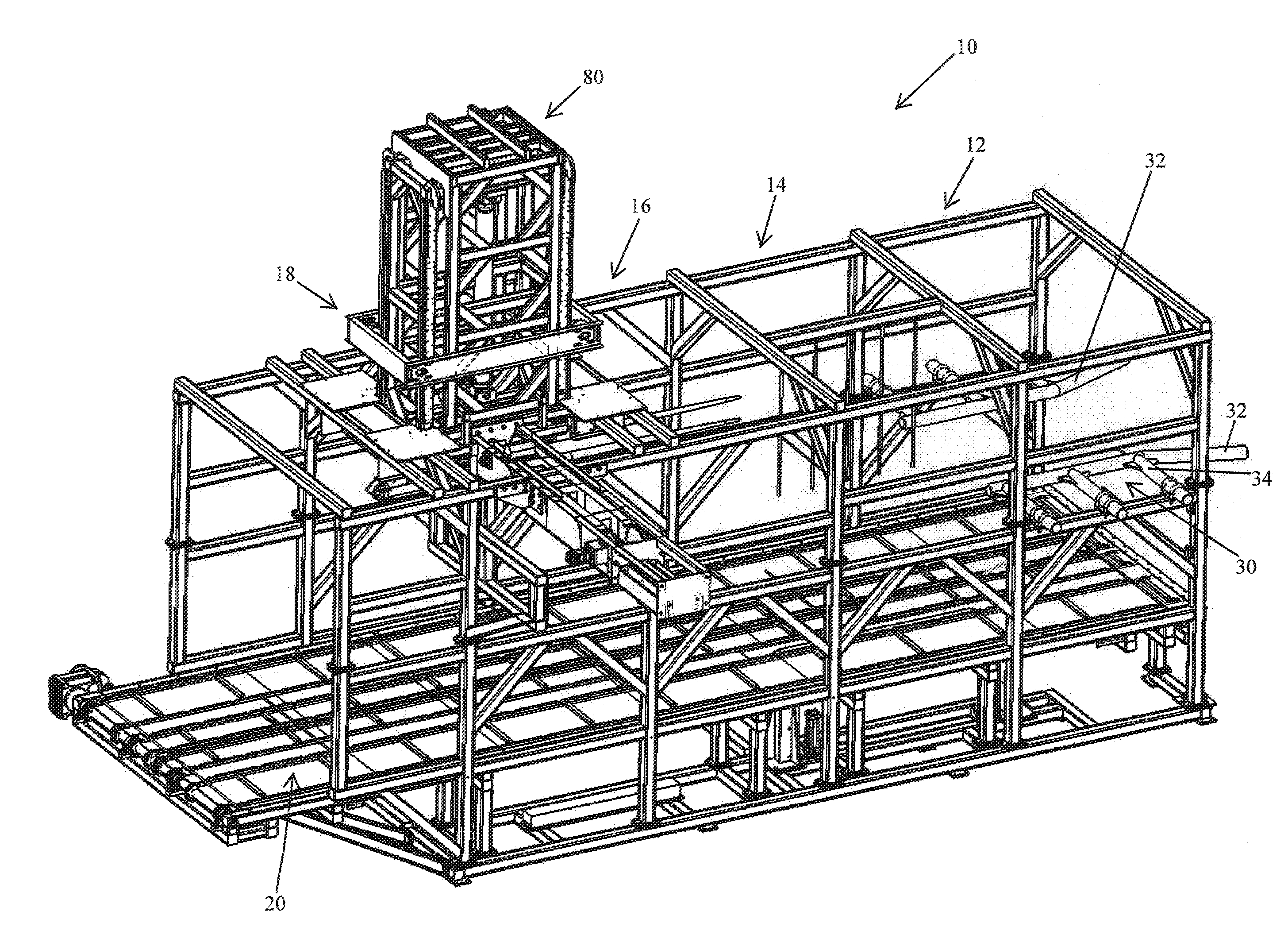

A method of removing a wrapping material from the outer surface of a bale of material including the steps of moving the bale of material to a cutting station, cutting wrapping material along a length of the bale, moving a plurality of rollers into contact with the wrapping material, rotating the rollers relative to the wrapping material until first and second ends of the wrapping material are free to move relative to an outer surface of the bale, placing a first spear of a material wind-up system between the outer surface of the bale and the wrapping material, rotating the material wind-up system to wind the wrapping material around first and second spears, positioning the first and second spears in a generally horizontal plane, and stripping the wrapping material from the first and second spears with a fin that extends downwardly from a carriage of a material removal system and between the first and second spears of the material wind-up station by sliding the carriage toward a distal end of the first and second spears.
First Claim
Other Claims data not available
