RECIPROCATING WINDSHIELD WIPER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 4, 2016
app pub date -
Oct 9, 2015
filing date -
Jan 17, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

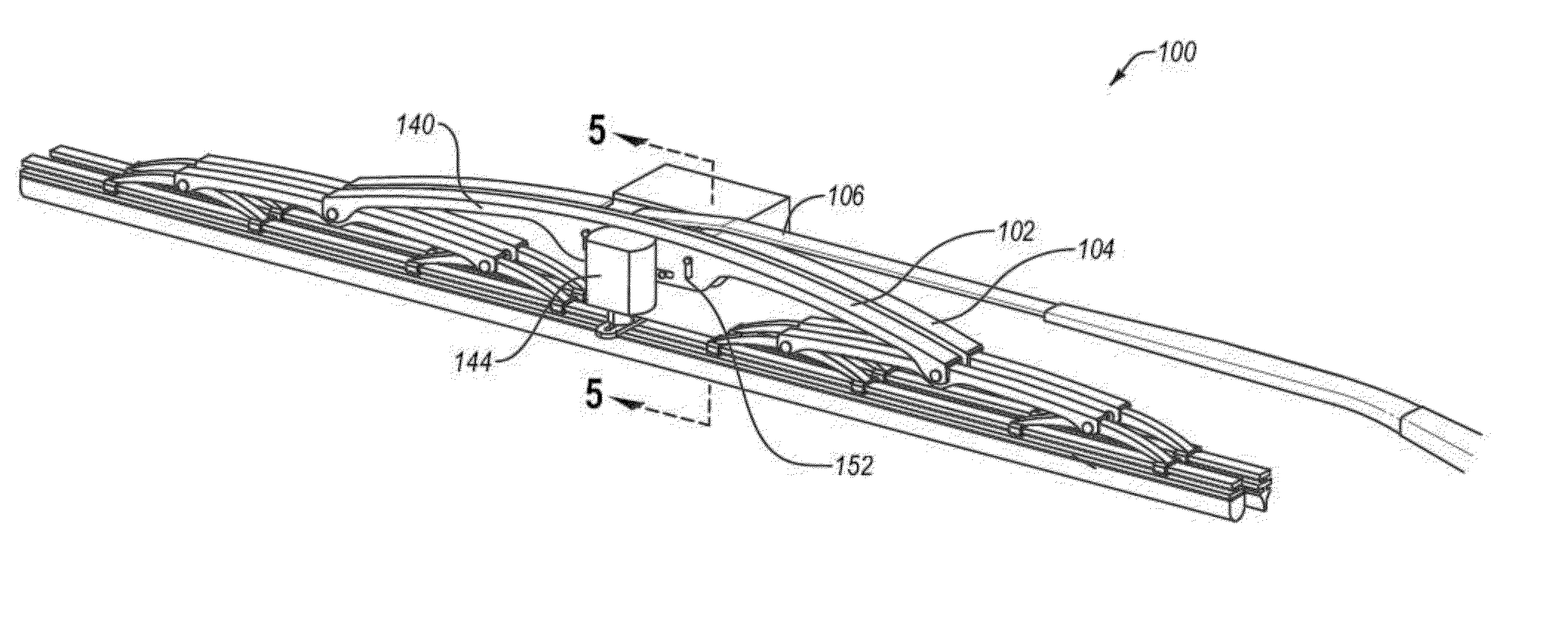

A windshield wiper includes a support structure, a scrubbing wiper assembly, and a motor. The scrubbing wiper assembly is slidably attached to the support structure and has a central longitudinal axis extending in the elongate direction between a first end and a spaced apart second end. The scrubbing wiper assembly includes a slider element and a wiper blade rigidly secured to the slider element. The motor is mounted to the support structure and is engaged with the slider element to reciprocally move the scrubbing wiper blade along the central longitudinal axis. The reciprocation can impart a linear torque to the slider element. Methods of cleaning and polishing a windshield using a windshield wiper are also included.
First Claim
Other Claims data not available
