VEHICULAR OPERATING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 28, 2016
app pub date -
Feb 14, 2014
filing date -
Feb 28, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

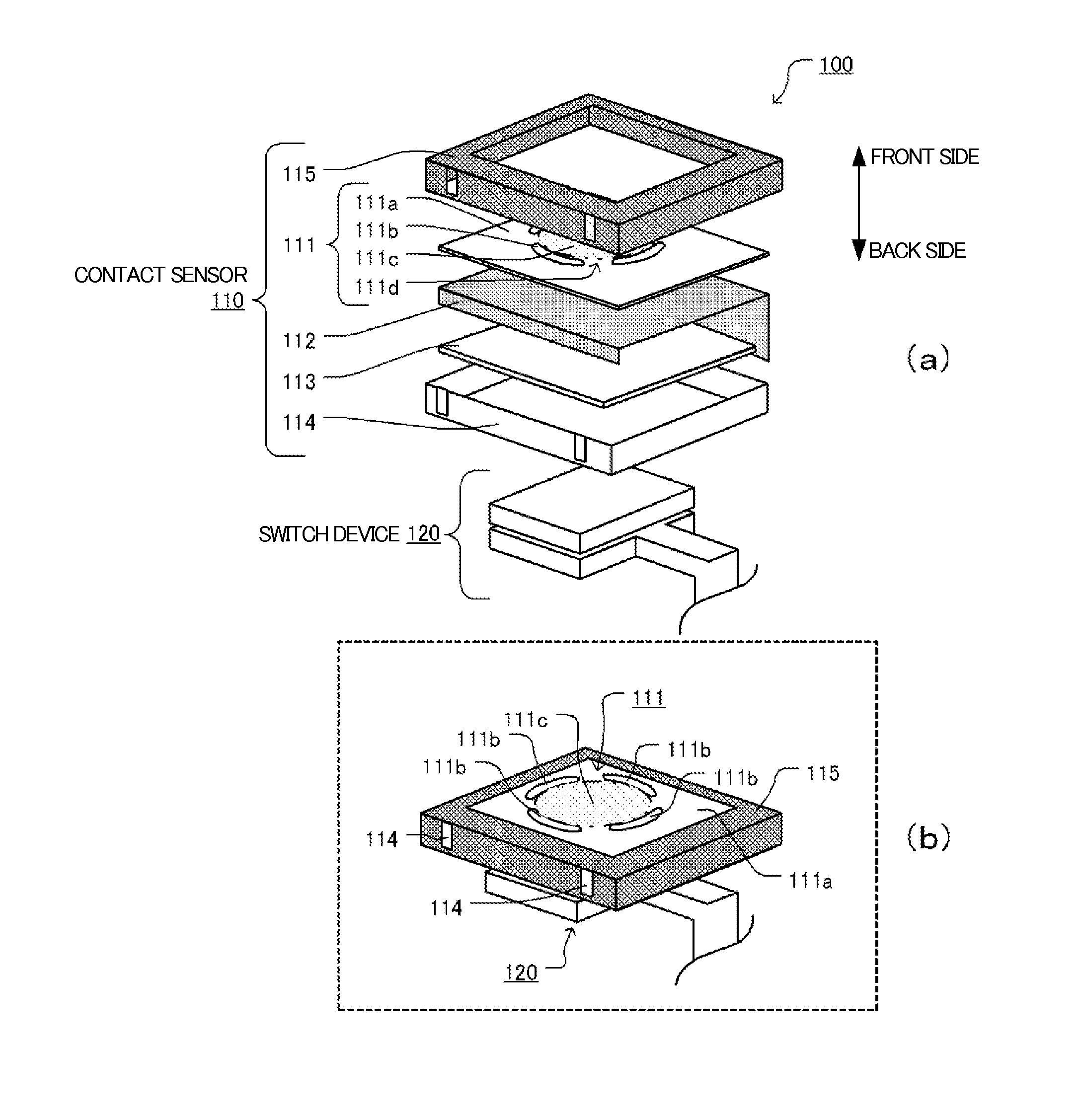

Provided is a vehicular operating device that can improve input precision even during operation by the thumbs while the steering wheel is grasped. The vehicular operating device is installed in a steering device of a means of transport and receives an input operation, wherein the vehicular operating device is provided with an operation surface with which a detection object that performs the input operation comes in contact, and a sensor unit for detecting the position where the detection object comes in contact with the operation surface, the operation surface being provided with a design that indicates a rotation gesture area, and the sensor unit being such that a portion for determining a rotation gesture is made into an annular area accounting for the moveable range of the thumb used by the user to grasp the steering device.
First Claim
Other Claims data not available
