AIR SEPARATION METHOD AND APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 28, 2016
app pub date -
Jul 28, 2014
filing date -
Jul 28, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

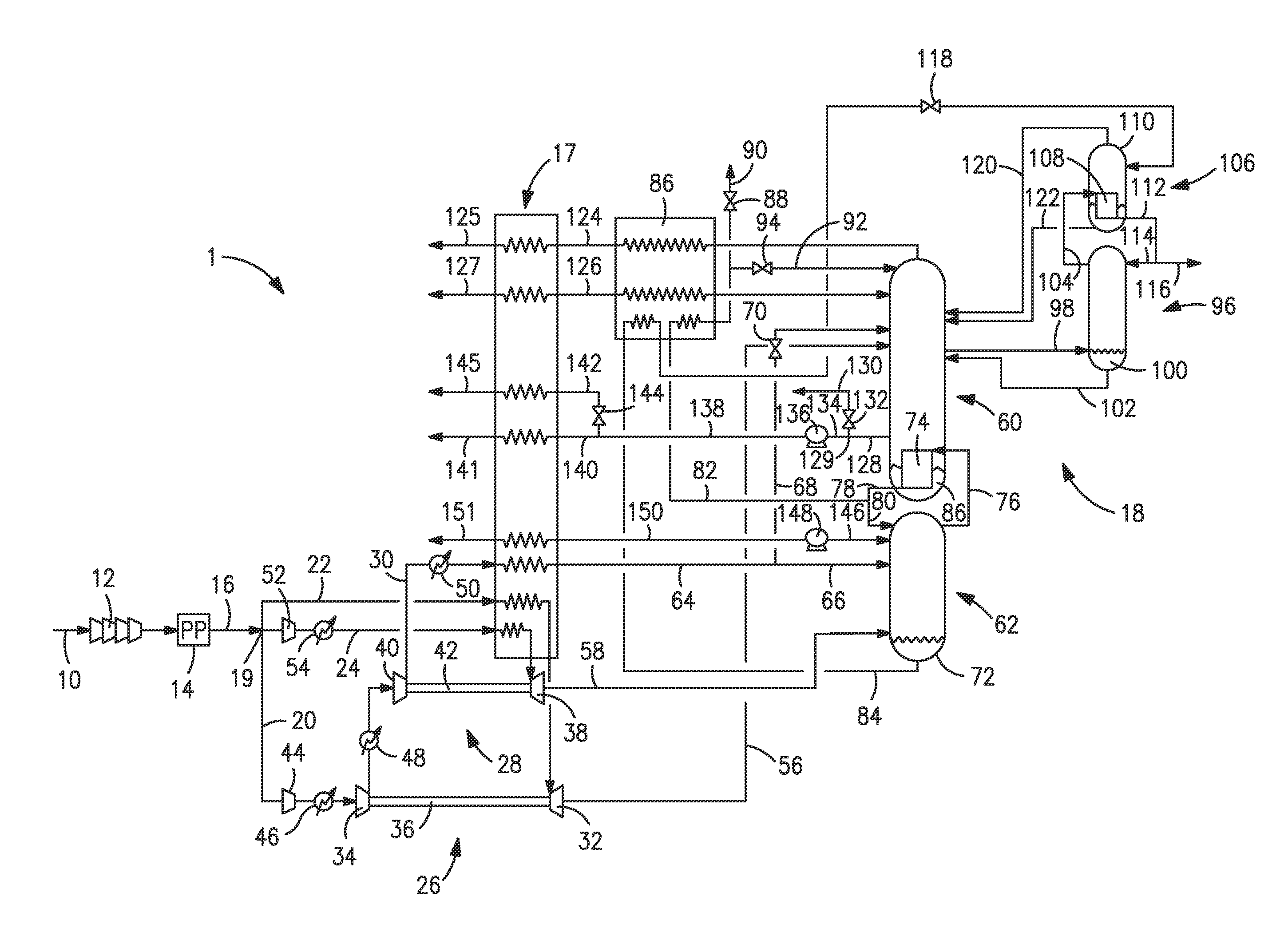

A method and apparatus for separating air by cryogenic rectification in which cooled, compressed and purified air is separated in a distillation column system having higher and lower pressure columns operatively associated with one another in a heat transfer relationship to produce an oxygen-rich liquid stream from the lower pressure column. The oxygen-rich liquid stream is pumped and heated through indirect heat exchange with a compressed heat exchange stream to form a pressurized oxygen product stream. Part of the air is sequentially and successively compressed in booster compressors driven by turboexpanders to form the compressed heat exchange stream while other parts of the air are expanded in turboexpanders driving the booster compressors to form exhaust streams that are introduced into both the higher and lower pressure columns to generate refrigeration.
First Claim
Other Claims data not available
