CENTRIFUGAL PUMP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 13, 2015
filing date -
Jul 22, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

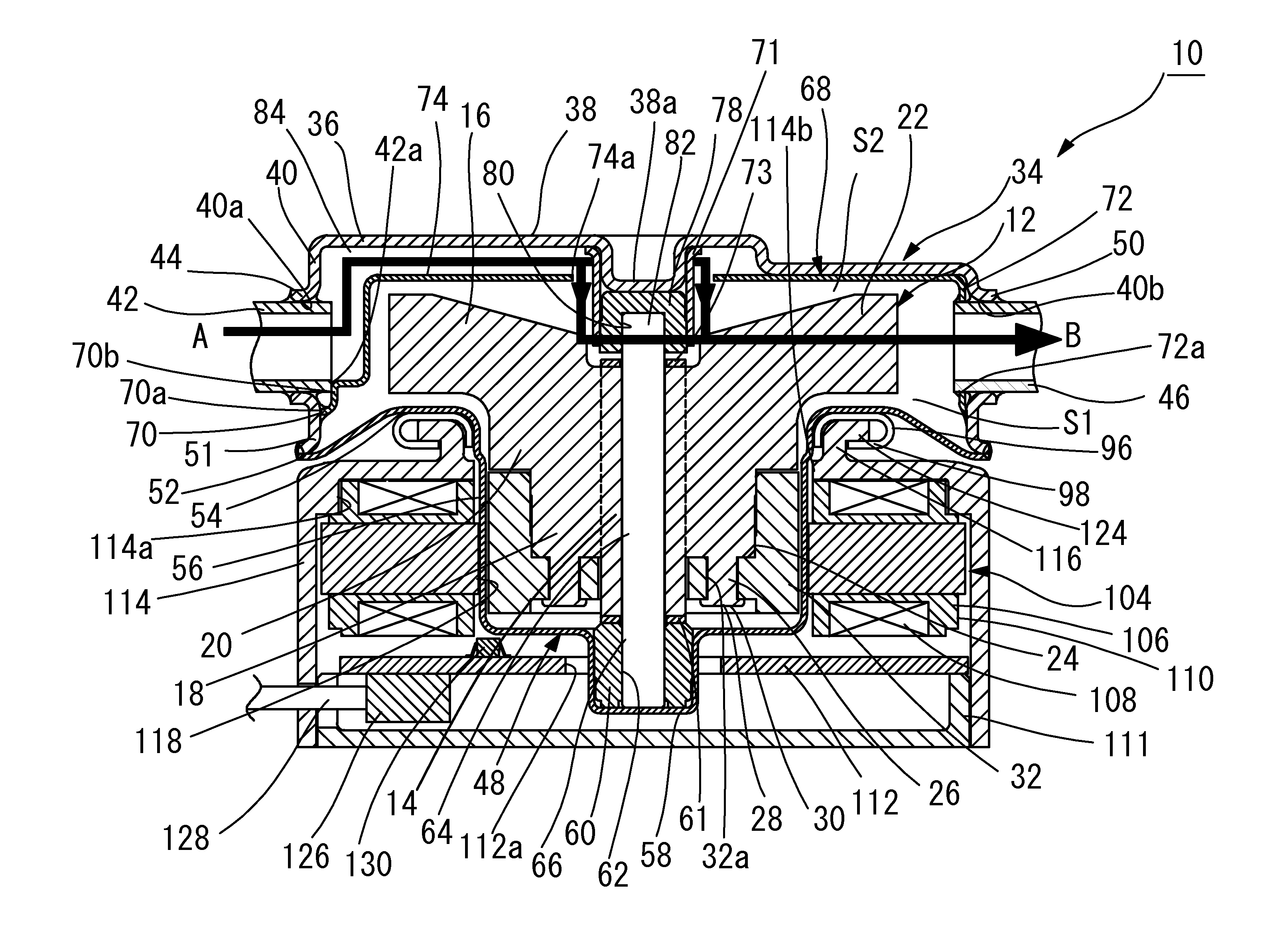

A centrifugal pump includes a rotating blade member including an impeller member and a rotor magnet provided under the impeller member, a metallic main body casing in which the rotating blade member is accommodated, and a coil portion configured to rotate the rotating blade member. The coil portion is disposed to be located in a periphery of the rotor magnet. The metallic main body casing includes an upper main body casing, and a lower main body casing which is fixed to the upper main body casing. The lower main body casing includes a blade accommodating portion, which extends horizontally from an outer periphery of the lower main body casing to an inner periphery side, and a rotor magnet accommodating portion, which extends downwardly from the blade accommodating portion.
First Claim
Other Claims data not available
