Locking telescoping rod
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Jan 21, 2016
app pub date -
Jul 21, 2014
filing date -
Jul 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

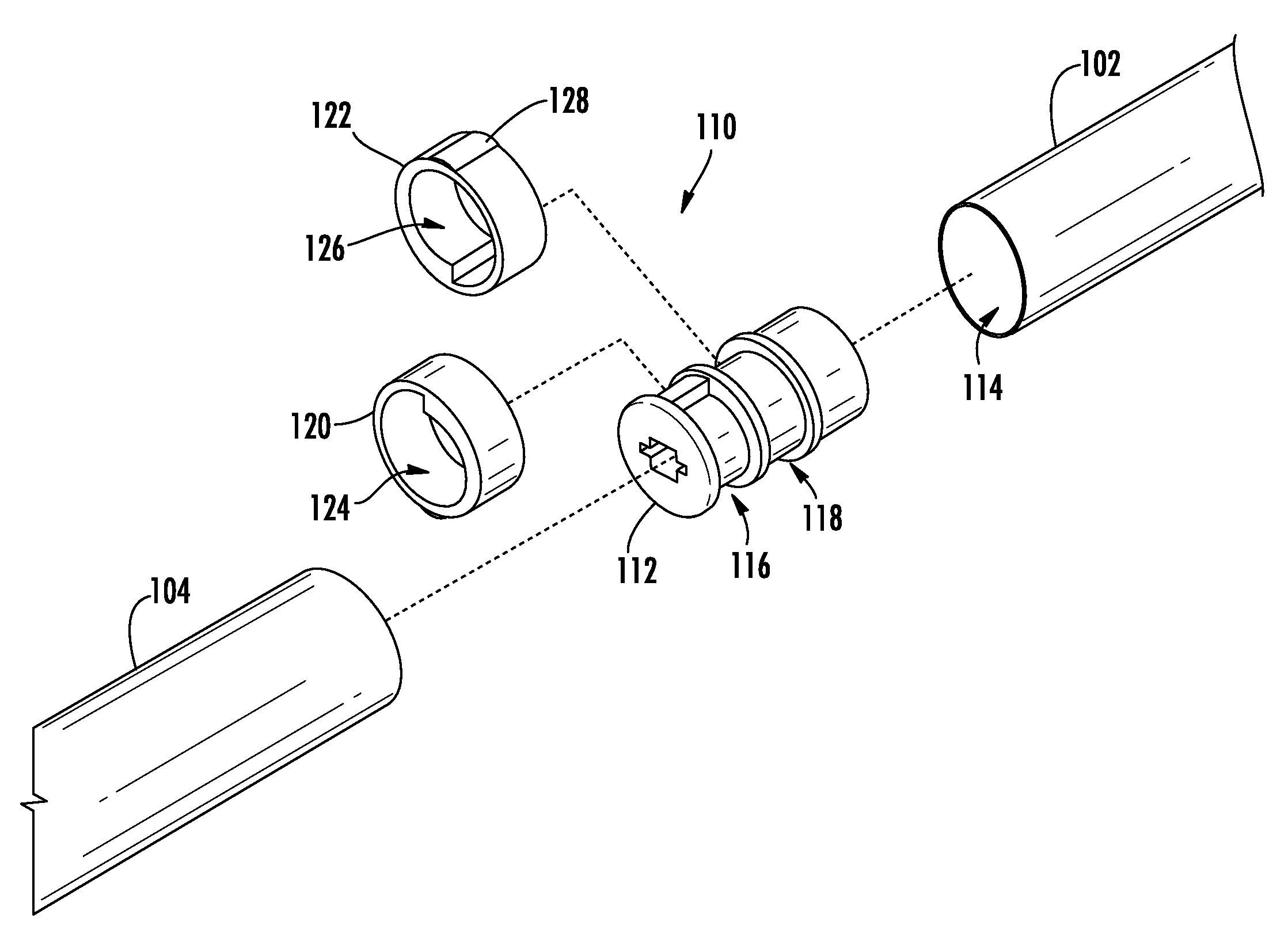

A telescoping rod is adjustable to a range of household environments and includes a first tubular member defining a primary axis. A cam body is secured to an end of the first tubular member, and the cam body defines ramped outer surfaces that vary in distance from the primary axis as a function of angular position about the axis. A second tubular member is sized to slide over the first tubular member and the cam body. The rod also includes a first cam sleeve and a second cam sleeve disposed about the ramped outer surfaces of the cam body. Rotation of the second tubular member about the primary axis relative to the cam body causes the first and the second cam sleeves to exert outward forces against an inner surface of the second tubular member that are applied at substantially different angles relative to each other.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- F16B Class
- 1263 Applications Filed
- 1022 Patents Issued To-Date
- 80.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16B Class
- 36.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
