METHOD FOR EVALUATING A STATUS OF AN INKJET PRINT HEAD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 21, 2016
app pub date -
Jul 2, 2015
filing date -
Jul 15, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

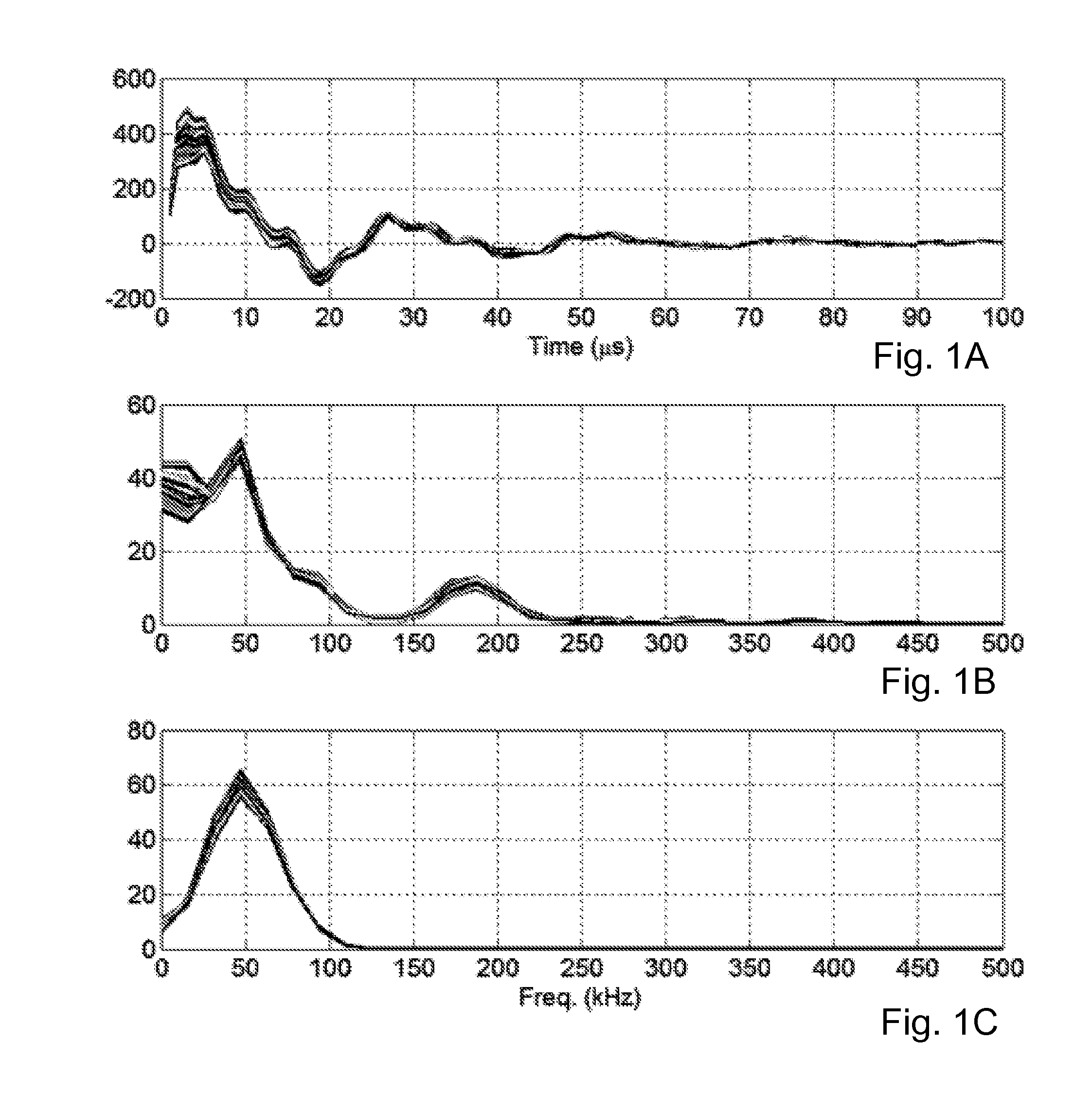

A method is provided to determine a droplet ejection state of a pressure chamber of a piezo-actuated inkjet print head, the method comprising a step of analyzing that includes filtering a residual pressure wave signal using a predetermined filter. The filter is designed to remove a low-frequency signal contribution generated by piezo material of the piezo actuator. Such a low-frequency signal contribution results from a piezo material property that varies over all piezo actuators without affecting the functional properties of the piezo actuator. Hence, for controlling the operation of the inkjet print head, in particular for controlling a droplet size and a droplet speed, such a signal contribution may be removed enabling a simple and nozzle-independent analysis of the residual pressure wave signal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 9 Age
