CUSTOMIZED DRILLING JIG FOR IMPLANTATION OF A HEARING AID
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 20, 2015
filing date -
Feb 23, 2010
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

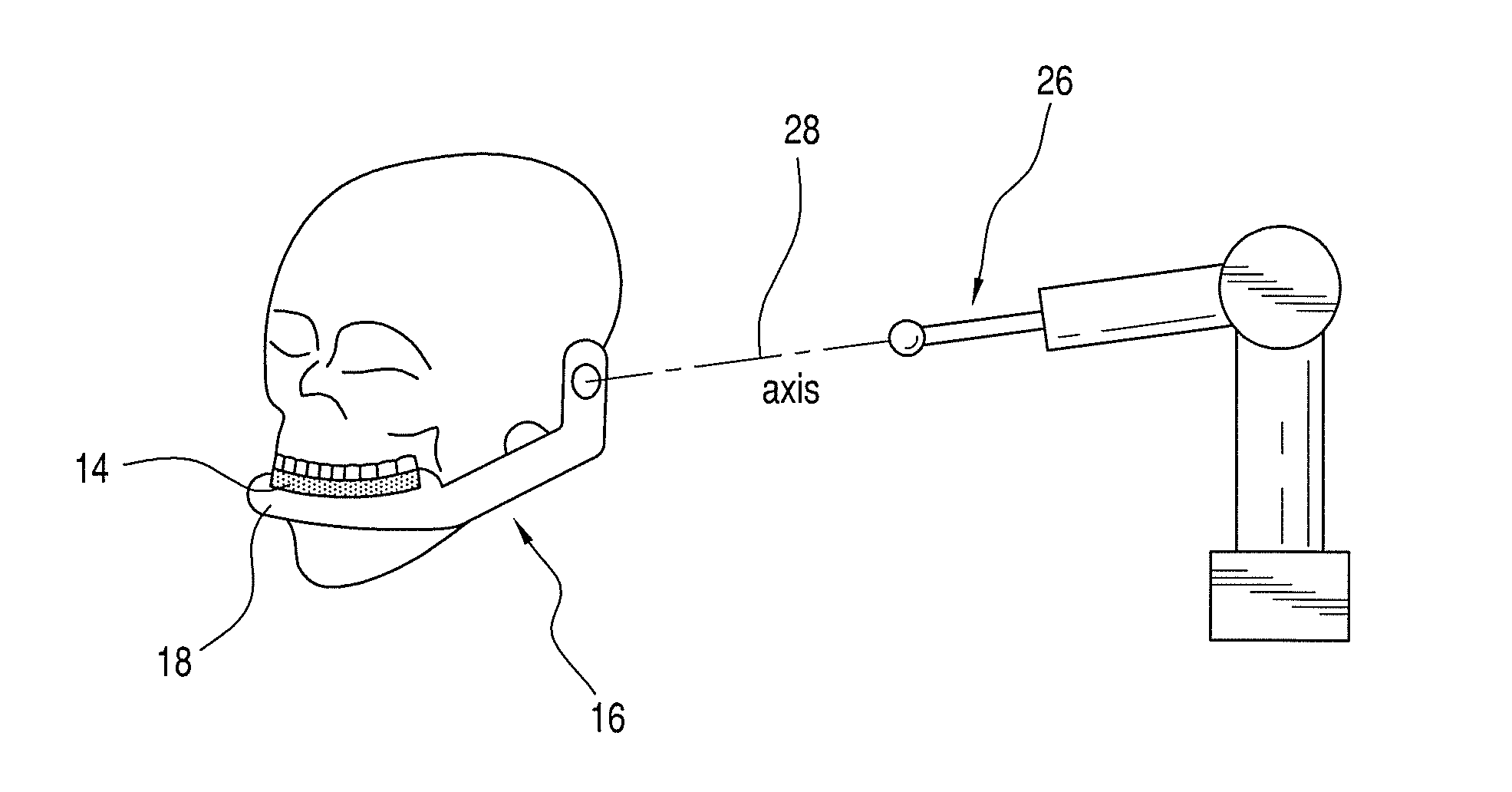

A customized drilling jig for implantation of a hearing aid involves a molded imprint (14) of a patient's upper teeth (12) made of a solidified elastic material connected to a jig (16) having a lateral beam (20) and navigation benchmarks (22) and with which a three-dimensional image of the patient's head can be captured for determining a minimal invasive drilling axis (28) for hearing aid implantation based on the three-dimensional image. The customized jig has a drilling guide opening in a lateral beam of the jig for guiding a drilling tool (26). The position and orientation of the drilling guide opening are selected to guide the drilling tool along the determined minimal invasive drilling axis when the jig is positioned on the patient's head by using the imprint (14).
