EXPANSION JOINT FOR CONNECTING AN EXHAUST COLLECTOR OF AN ENGINE TO A DUCT SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 14, 2016
app pub date -
Jul 8, 2014
filing date -
Jul 8, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

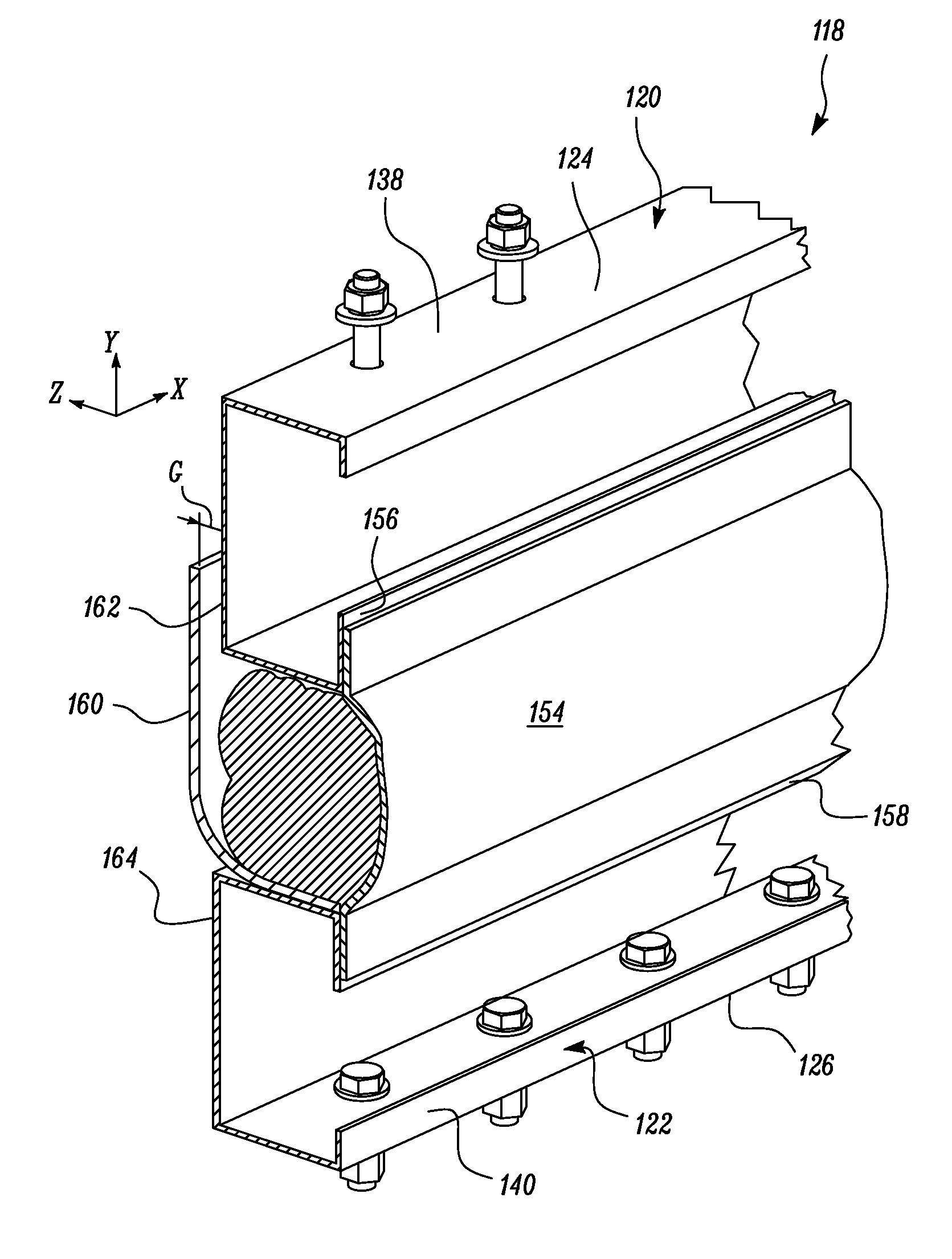

An expansion joint for connecting an exhaust collector of an engine to a duct system includes an upper frame, a lower frame, a resilient member, and a fabric membrane. The upper frame is formed from a plurality of first members in which ends of adjacent first members are releasably coupled to each other. The lower frame is disposed in a spaced-apart relation to the upper frame. The lower frame is formed from a plurality of second members in which ends of adjacent second members are releasably coupled to each other. The resilient member is disposed between mutually coupled ends of the first members and between mutually coupled ends of the second members. The resilient member is configured to elastically deform in response to a variation in the lengths of the first and the second members. The fabric membrane is affixed to an outer periphery of the upper and lower frames.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 9 Age
