Pavement repair system utilizing solid phase autoregenerative cohesion
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 24, 2017
Grant Date -
Jan 14, 2016
app pub date -
Sep 4, 2015
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

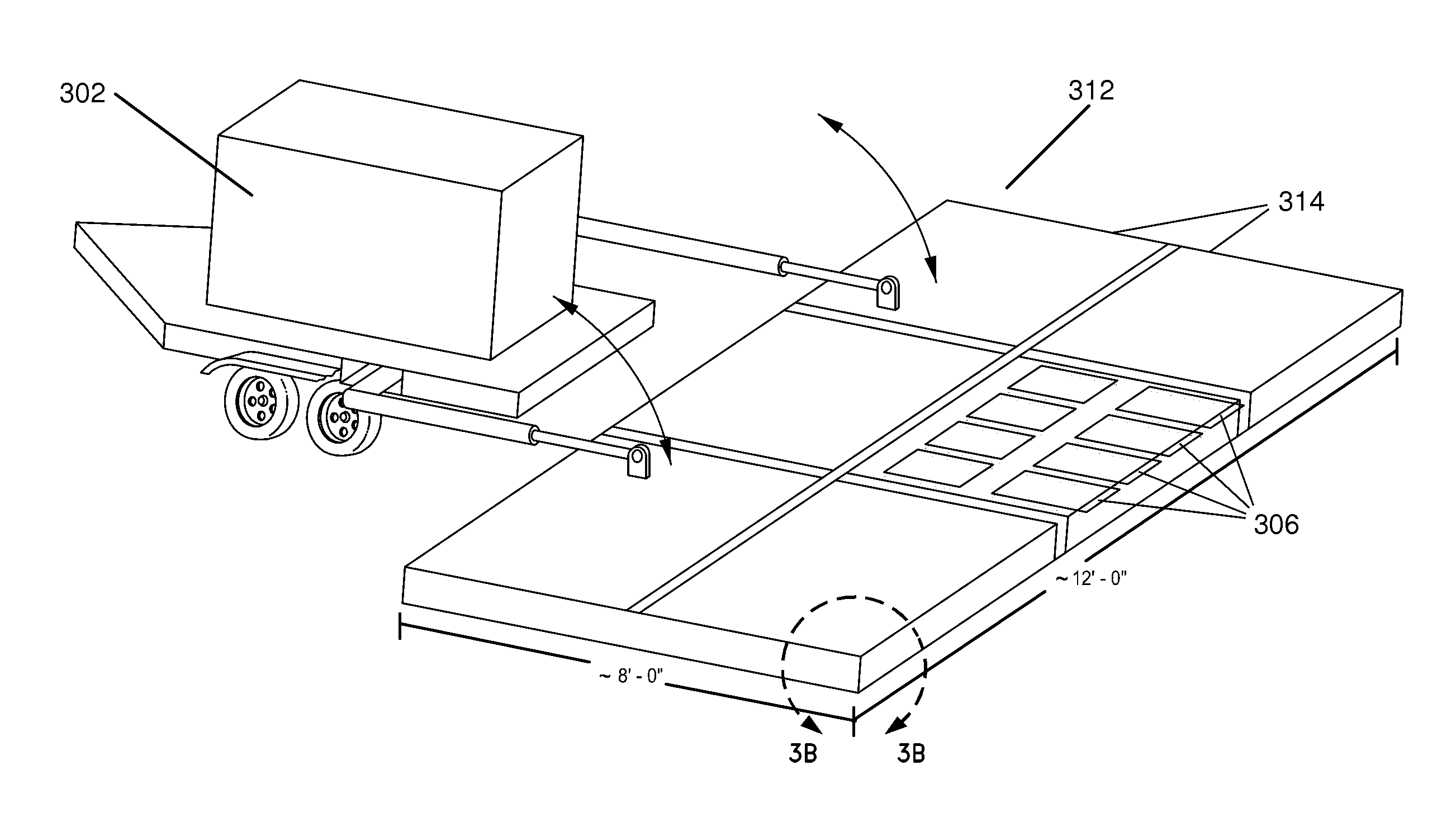

A method for repairing an aged asphalt pavement is provided. The method involves passing an emitter over the aged asphalt pavement, wherein the emitter generates electromagnetic radiation having a wavelength of from 20 microns to 1 mm that penetrates into the pavement to a depth of at least 2 inches. The asphalt pavement is repaired by disturbing voids and interstices in the damaged pavement without dehydrogenation of the asphalt, such that oligomers present in the aged asphalt are linked together into longer polymer chains to improve ductility of the aged asphalt.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- H05B:ELECTRIC HEATING; ELECTRIC LIGHTING NOT OTHERWISE ....
- G21K:TECHNIQUES FOR HANDLING PARTICLES OR ELECTROMAGNET....
- C09D:COATING COMPOSITIONS, e.g. PAINTS, VARNISHES, LACQ....
- E01C:CONSTRUCTION OF, OR SURFACES FOR, ROADS, SPORTS GR....
- C08L:COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C10C:WORKING-UP TAR, PITCH, ASPHALT, BITUMEN; PYROLIGNE....
- 2015 Application Filing Year
- H05B Class
- 3093 Applications Filed
- 2473 Patents Issued To-Date
- 79.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- H05B Class
- 87.00 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 24, 2028 |
