Apparatus and methods for automated dispensing of medications and supplements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Sep 21, 2015
filing date -
Dec 5, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

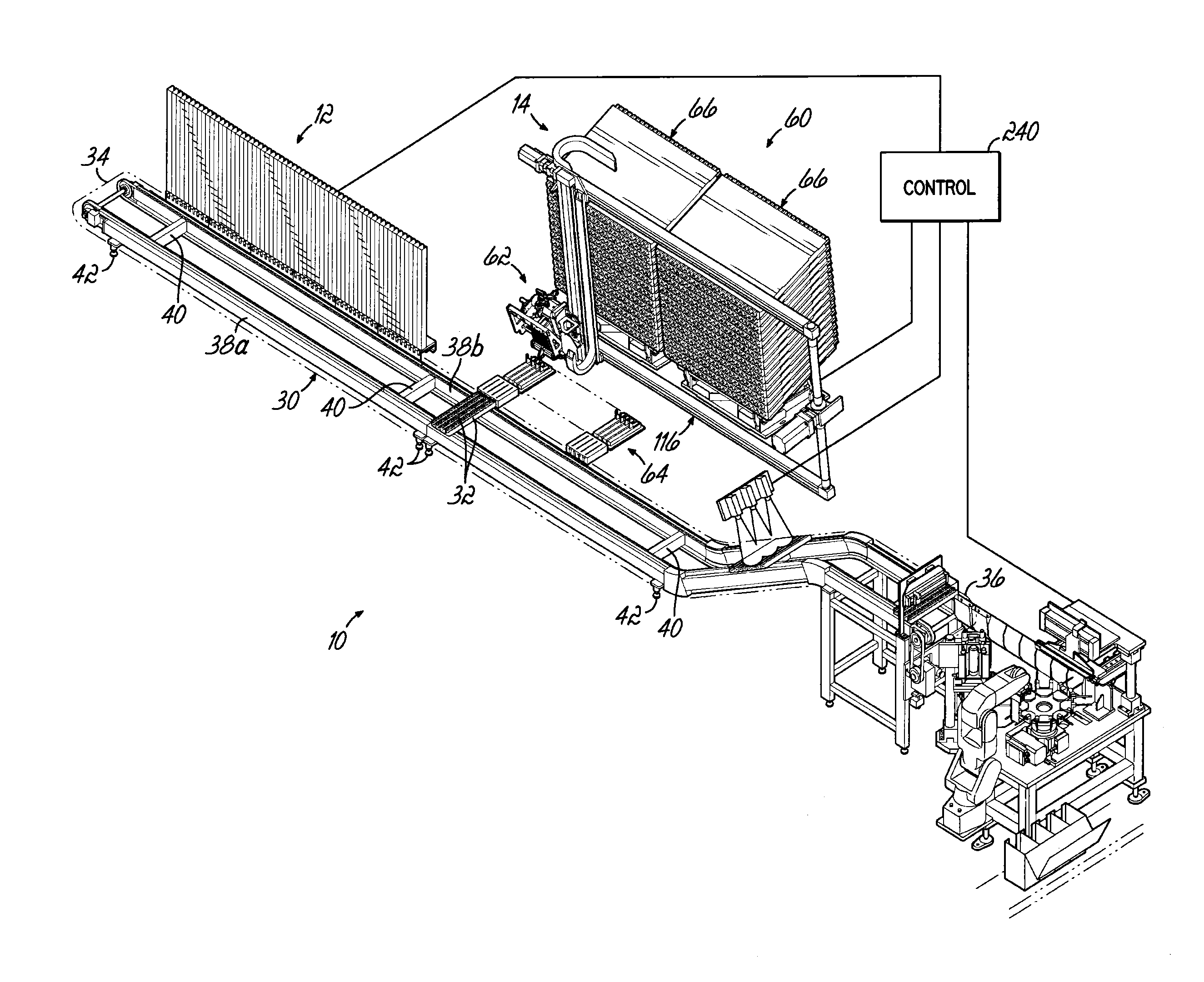

A system for assembling and dispensing an order made up of one or more individually packaged items from a plurality of different individually packaged items includes a storage module containing one or more packages of each of the items, and a conveyor having selectively assignable spaces configured to receive the packaged items associated with a particular order and to transport the packaged items to a processing location. A pick device is movable relative to the storage module and is configured to retrieve a package from the storage module. A transfer station adjacent the conveyor receives one or more of the packaged items from the pick device and an actuator associated with the transfer station moves the packaged items from the transfer station to the conveyor when the assigned space associated with the order is in the registration with the transfer station.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B65G Class
- 1502 Applications Filed
- 1240 Patents Issued To-Date
- 82.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B65G Class
- 34.36 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
