CARTRIDGE, MACHINE AND SYSTEM FOR THE PREPARATION OF BEVERAGES AND PROCESS FOR MANUFACTURING THE CARTRIDGE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 14, 2016
app pub date -
Feb 21, 2014
filing date -
Feb 22, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

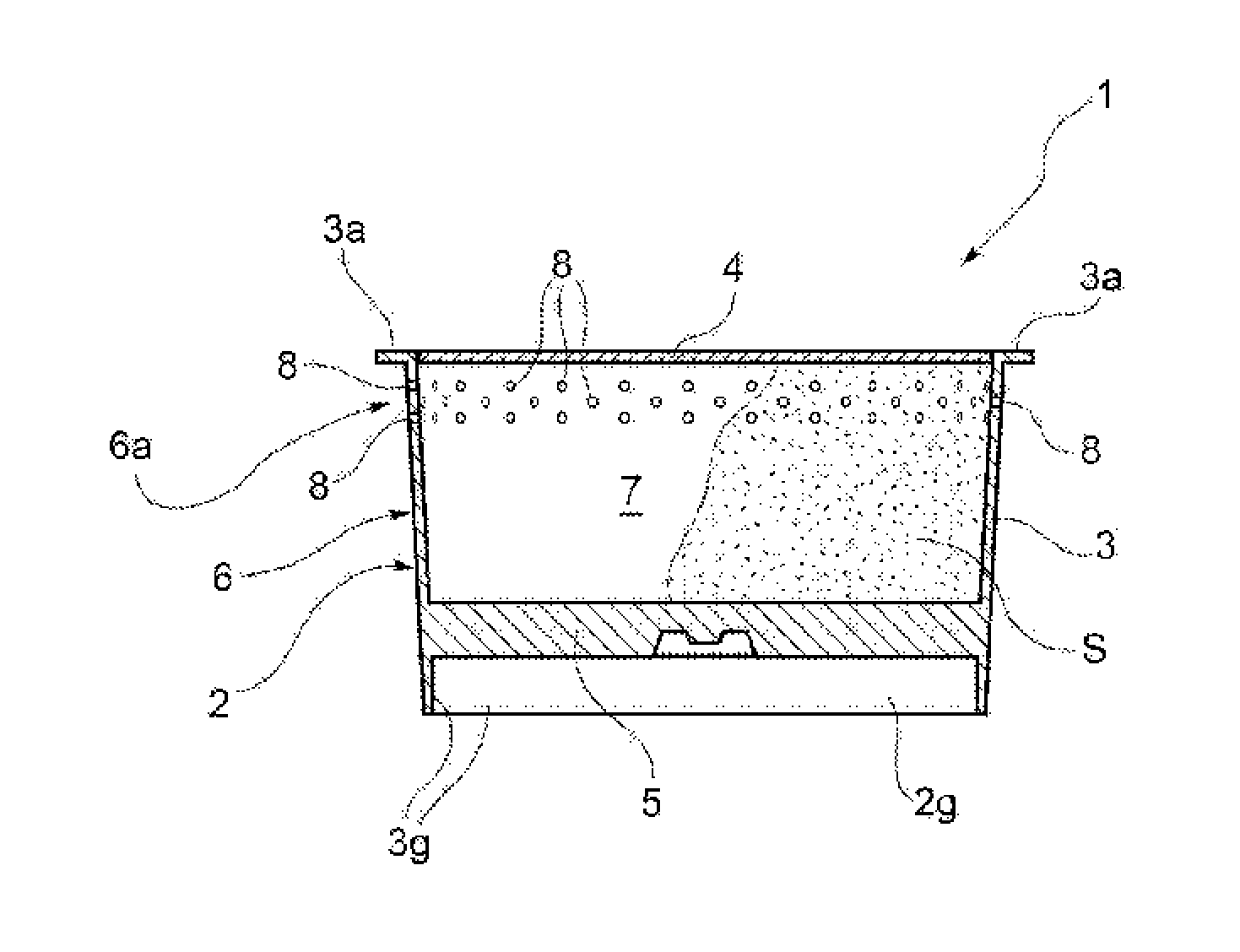

The cartridge (1) according to the invention comprises an envelope (2) having a first and a second end wall (4, 5) connected together by an annular lateral wall (6) and defining an inner chamber (7) containing a quantity or dose of a substance (S) for preparation of the beverage. The envelope (2) has at least one first and at least one second permeable wall (6a, 5) acting as an inlet for the introduction of a flow of water into the chamber (7) and as an outlet from it respectively for outflow of the beverage from chamber (7). Between the first and the second permeable walls (6a, 5) the envelope (2) has an outwardly projecting annular formation (3g). A portion of the permeable inlet wall (6a) for the introduction of water into the chamber (7) is made in the annular lateral wall (6) of the envelope (2). The annular formation (3g) extends from the second end wall (5) in a direction substantially opposite to the first end wall (4).
