INGAAS FINFET ON PATTERNED SILICON SUBSTRATE WITH INP AS A BUFFER LAYER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 7, 2016
app pub date -
Mar 12, 2015
filing date -
Jul 2, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

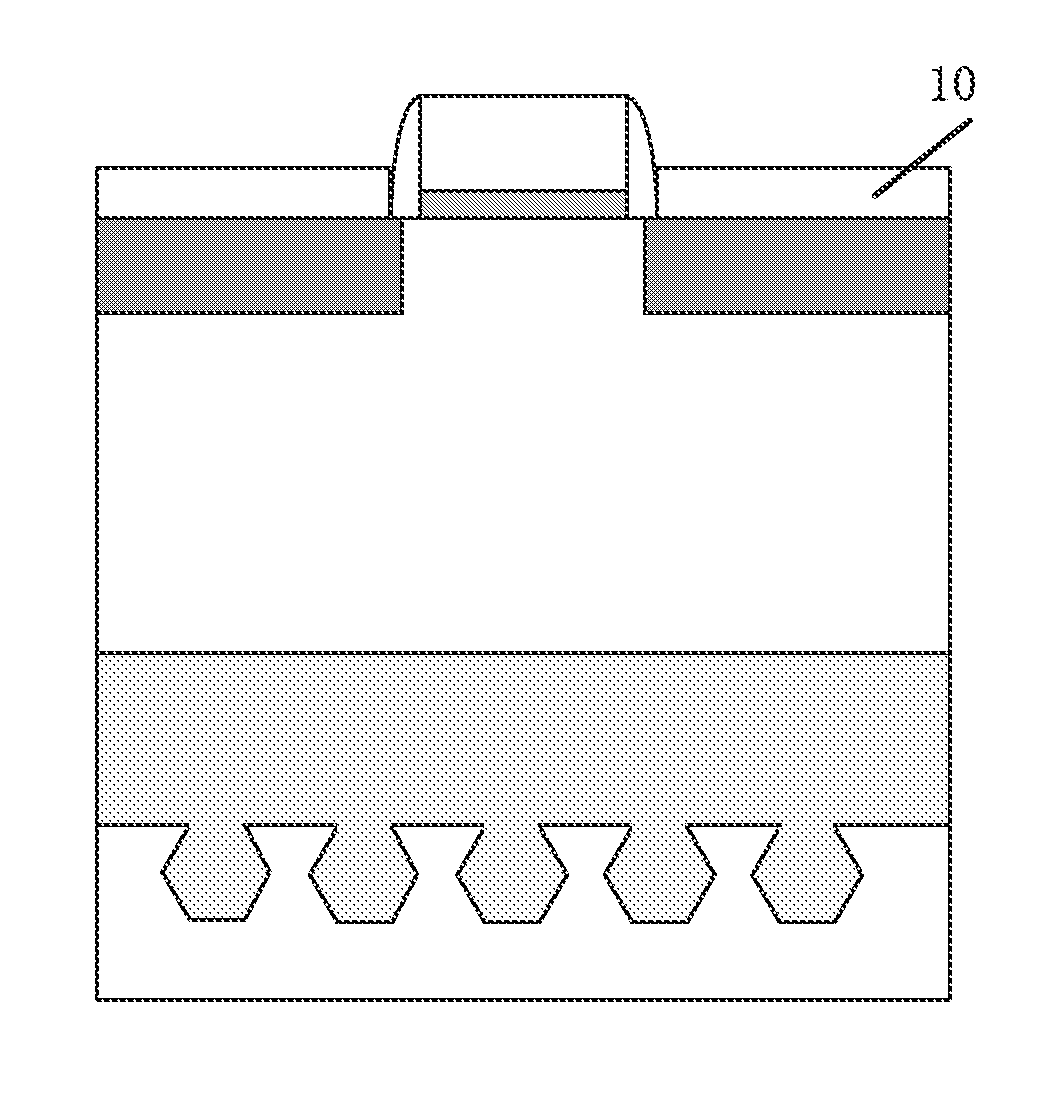

A method for manufacturing a semiconductor device includes providing a substrate having an array of cavities. Each of the cavities has a plurality of lateral sides, and each lateral side has a lateral direction matching a lateral crystal plane of the substrate. The method also includes forming a buffer layer on the substrate and filling the cavities, and forming a fin-type channel layer on the buffer layer. Because the independently grown crystals in the cavities have a lateral direction in line with the direction of the lateral crystal plane, the dislocation defect density is significantly reduced, thereby greatly improving the device performance.
