Winding device for self-winding automatic watch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Grant Date -
Jan 7, 2016
app pub date -
Mar 20, 2014
filing date -
Apr 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

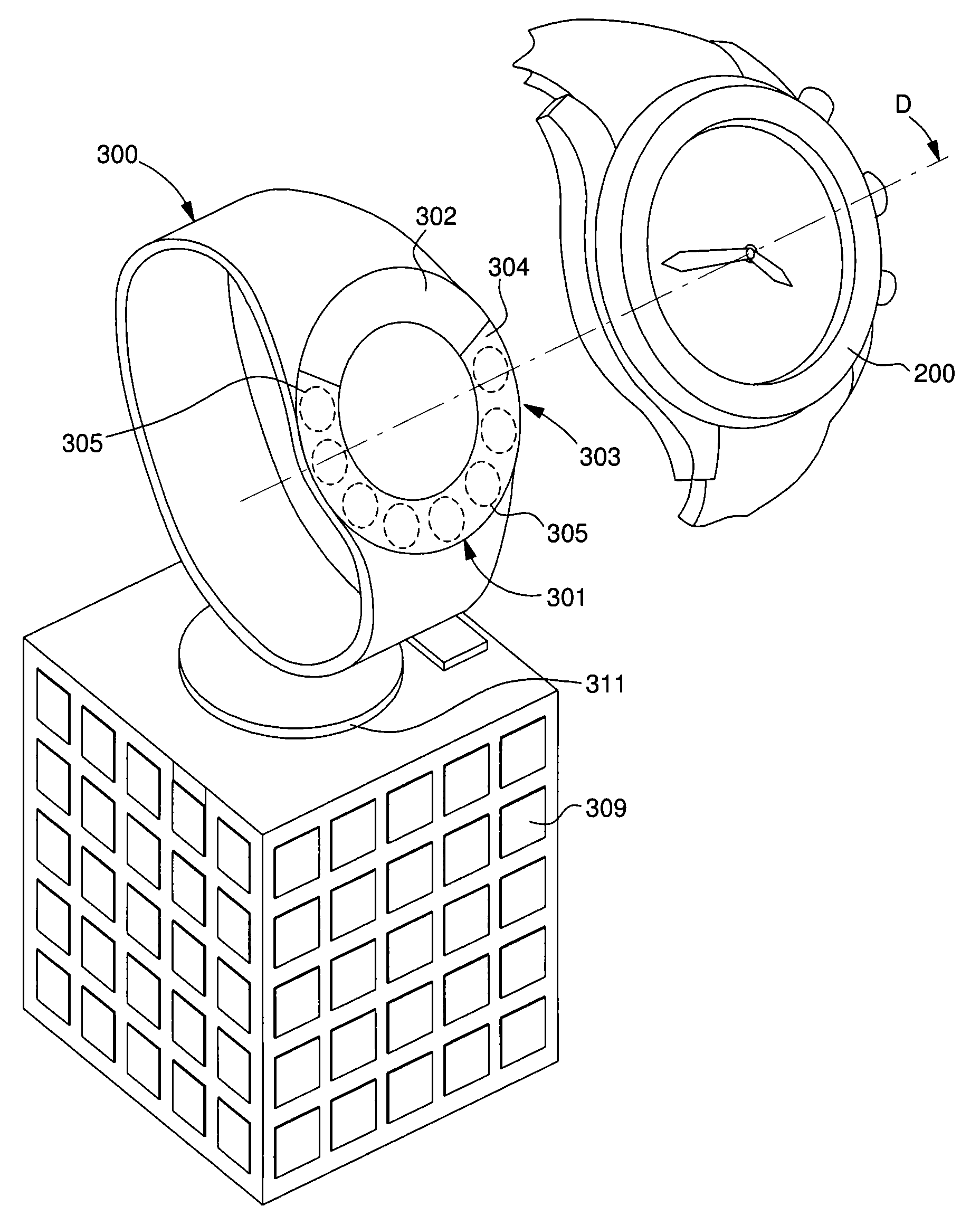

A device for winding automatic watches, including an electrical energy source and a receptacle support including a surface configured to receive in abutment a back cover of a watch, the device configured to generate a magnetic and/or electrostatic field or eddy currents, in a fixed position underneath the bearing surface and generate, on a substantially annular angular sector, a magnetic and or electrostatic field that varies as a function of time and whose direction is orthogonal to the bearing surface, or generating eddy currents that vary as a function of time. The device can be provided for a watch including an automatic winding mechanism with an oscillating weight including a first ferromagnetic inner part and a second heavy metal peripheral part, and possibly with a paramagnetic conductive disc coaxial to the oscillating weight.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G04B Class
- 214 Applications Filed
- 202 Patents Issued To-Date
- 94.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G04B Class
- 23.77 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
