IMAGING OPTICAL SYSTEM AND PROJECTION EXPOSURE SYSTEM FOR MICROLITHOGRAPHY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 7, 2016
app pub date -
Sep 9, 2015
filing date -
Oct 26, 2007
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

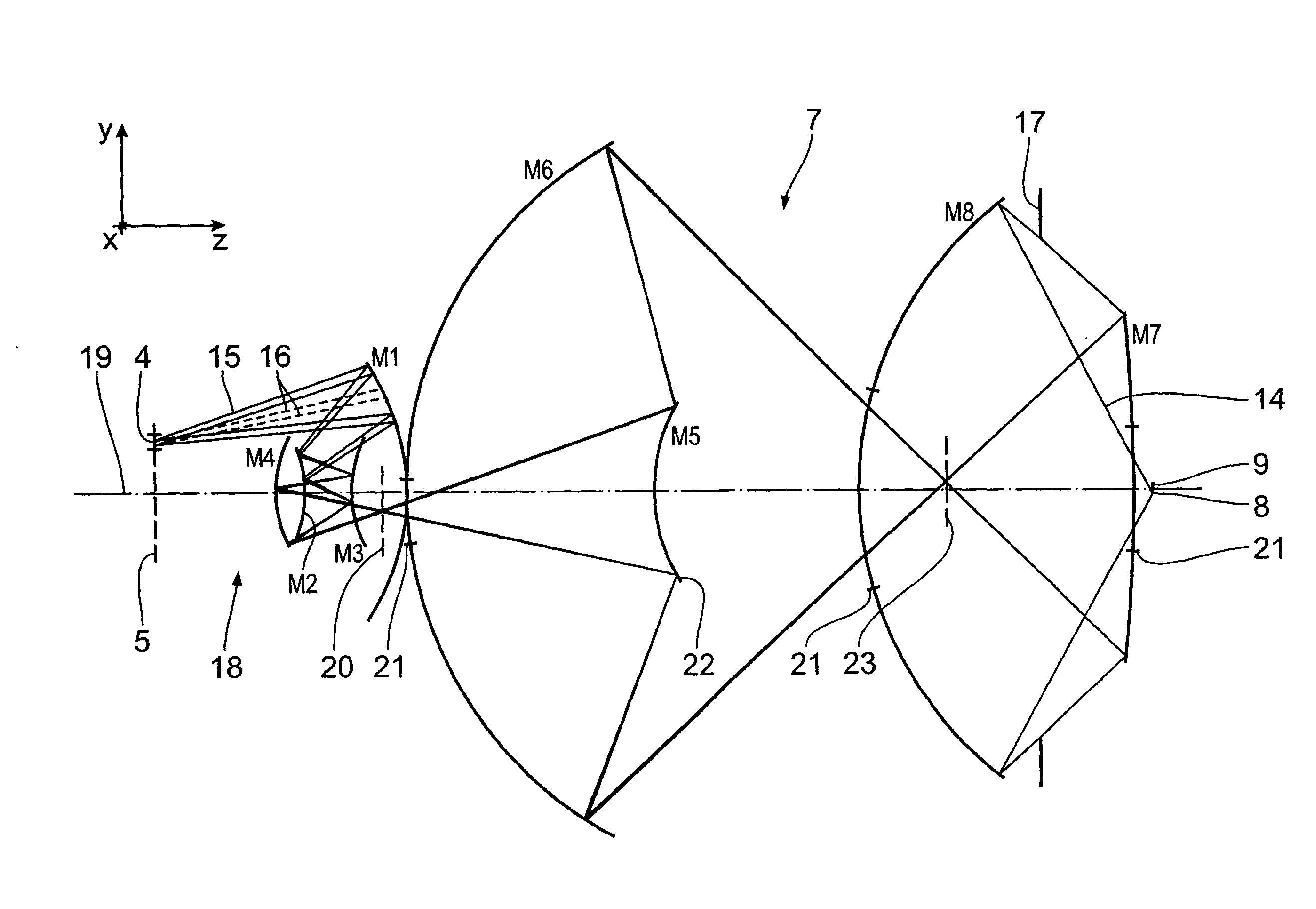

An imaging optical system includes a plurality of mirrors that image an object field in an object plane into an image field in an image plane. At least one of the mirrors is obscured, and thus has a opening for imaging light to pass through. The fourth-last mirror in the light path before the image field is not obscured and provides, with an outer edge of the optically effective reflection surface thereof, a central shadowing in a pupil plane of the imaging optical system. The distance between the fourth-last mirror and the last mirror along the optical axis is at least 10% of the distance between the object field and the image field. An intermediate image, which is closest to the image plane, is arranged between the last mirror and the image plane. The imaging optical system can have a numerical aperture of 0.9. These measures, not all of which must be effected simultaneously, lead to an imaging optical system with improved imaging properties and/or reduced production costs.
First Claim
Other Claims data not available
