UNDERSEA PIPE-LAYING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 8, 2015
filing date -
Jan 13, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

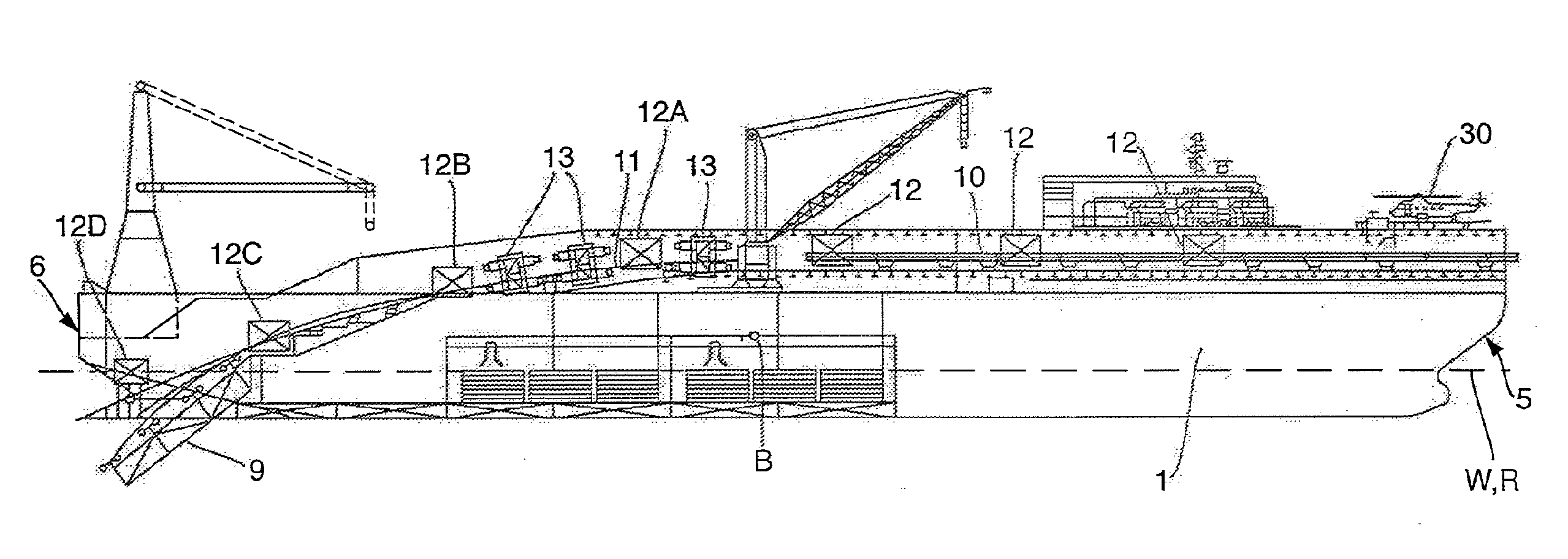

A vessel for laying a pipeline includes a plurality of workstations disposed along a pipelaying path that includes an upstream portion away from a first end of the vessel and a plurality of ramps in the region of the first end of the vessel. The plurality of ramps includes a first ramp which is disposed along the pipelaying path, whose inclination is adjustable and which has a first upstream end and a second downstream end, and a second ramp which is disposed along the pipelaying path downstream of the first ramp, whose inclination is adjustable and which has a first upstream end and a second downstream end. The downstream end of the first ramp is positioned inboard of the first end of the vessel and above the bottom of the vessel and the upstream end of the second ramp is positioned inboard of the first end of the vessel and above the bottom of the vessel. An external ramp assembly is provided, including ramps and that can be pivoted relative to one another and locked in a selected position by a locking arrangement.
