WIRING SUBSTRATE AND METHOD FOR PRODUCING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 17, 2015
app pub date -
Jun 16, 2015
filing date -
Jun 17, 2014
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

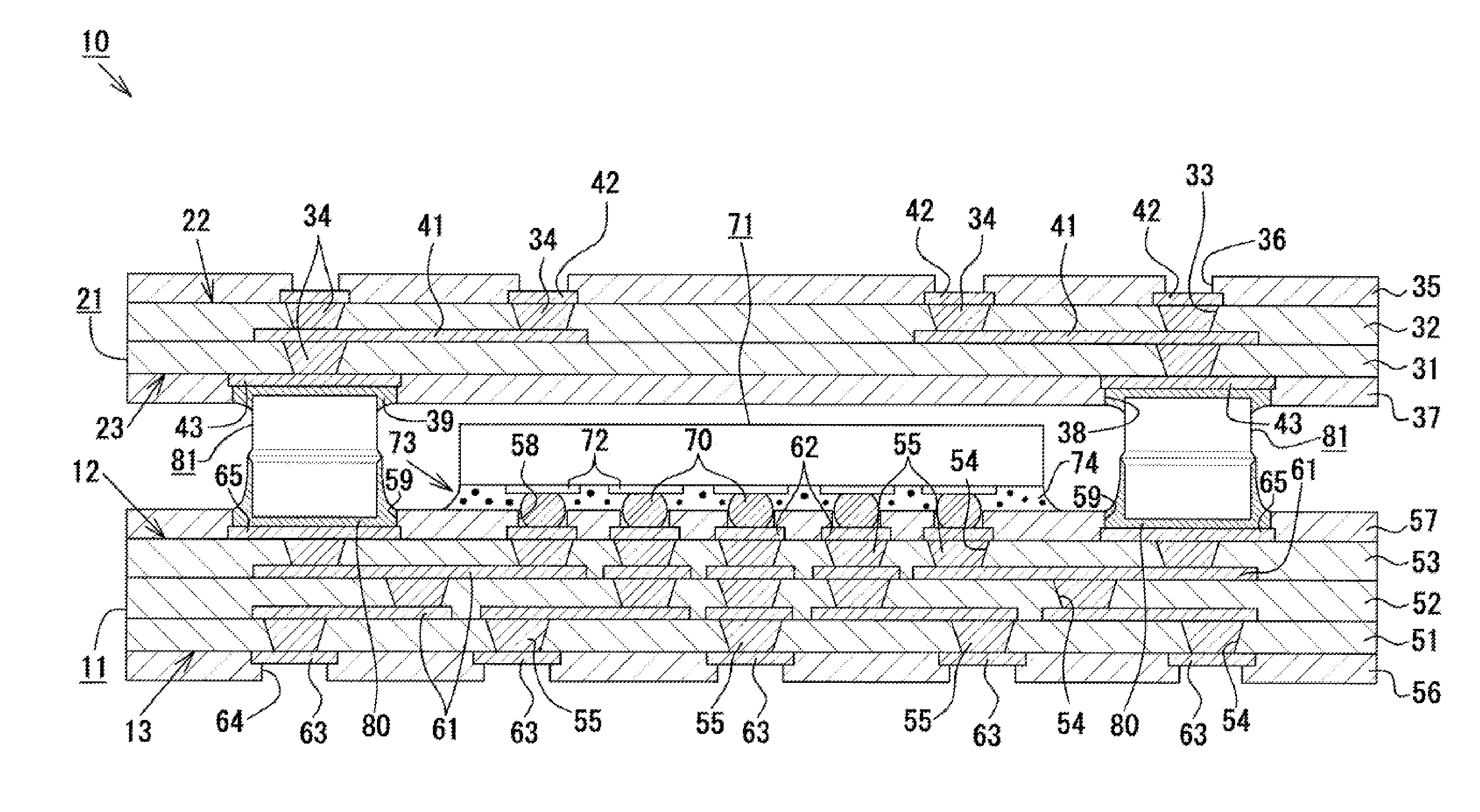

A wiring substrate includes a first substrate to be connected to a second substrate. Electrodes are disposed on a substrate main surface of the first substrate, and columnar terminals are bonded onto the electrodes via solder portions. Each columnar terminal includes a columnar terminal body, and a projecting piece that projects from an outer peripheral surface of the columnar terminal body at a center portion, in a height direction, of the outer peripheral surface of the columnar terminal body. Each columnar terminal has a shape vertically symmetrical about the projecting piece.
