POROUS ELECTRODE ASSEMBLY, LIQUID-FLOW HALF-CELL, AND LIQUID-FLOW CELL STACK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 17, 2015
app pub date -
Jan 31, 2013
filing date -
Jan 31, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

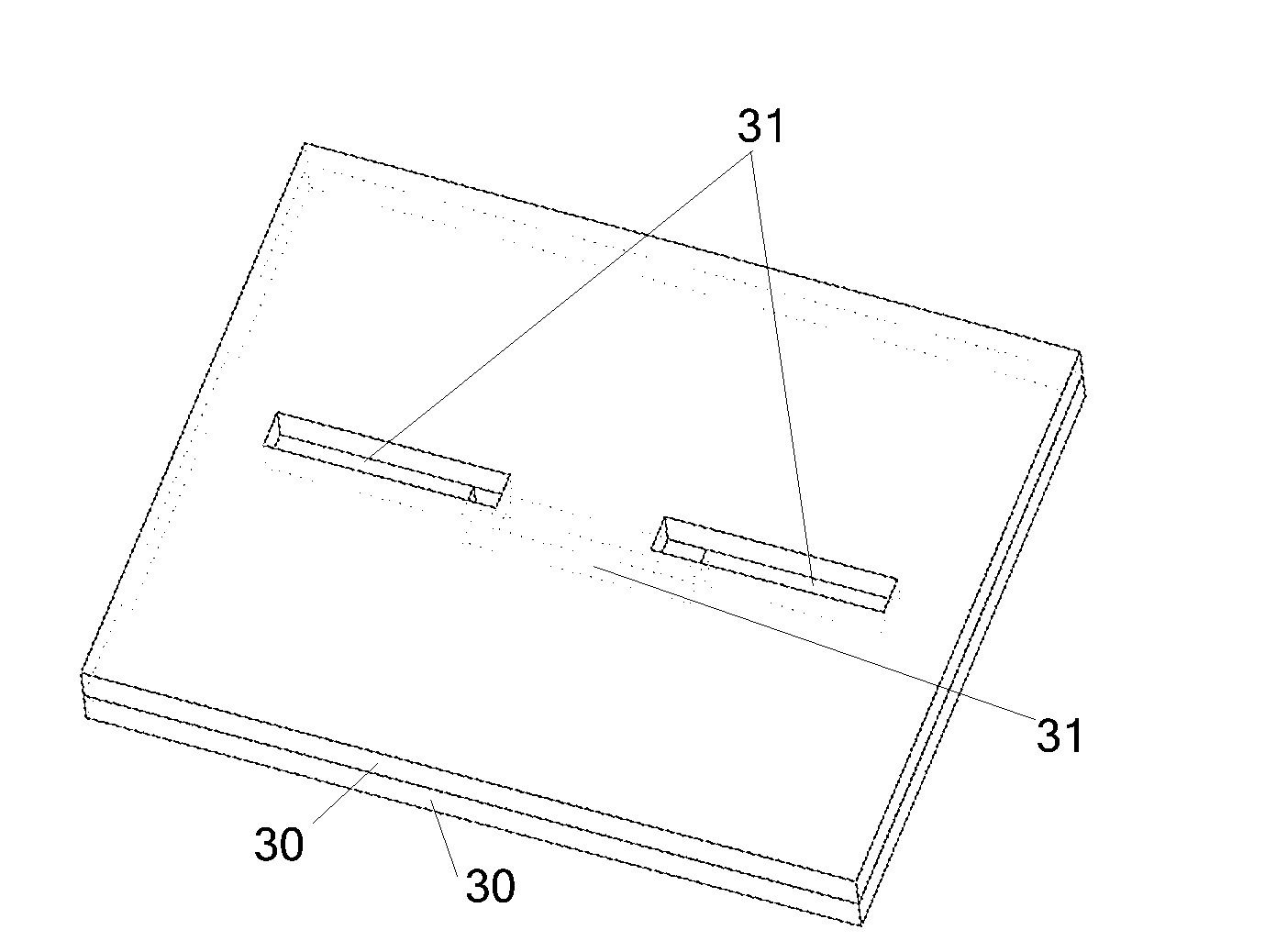

The disclosure discloses a porous electrode assembly, a flow half-cell and a flow cell stack. The porous electrode assembly includes multiple porous electrodes which are stacked, wherein at least two porous electrodes are flow passage electrodes with flow passage, and a part of flow passages of at least two flow passage electrodes are mutually communicated to form a flow field. The flow field used for circulating an electrolyte and formed by communicating the flow passages one another is arranged in at least one porous electrode of the porous electrode assembly, and the electrolyte flows in the porous electrodes under a flow guide effect of the flow field, so that surface areas, permeated by the electrolyte, of solid parts of the porous electrodes are enlarged, flow resistance of the porous electrodes to the flowing of the electrolyte is reduced, and a flow pressure difference is reduced.
First Claim
Other Claims data not available
