DEVICE AND METHOD FOR DETERMINING THE POSITION OF A MOVABLE TRANSPORTATION UNIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 17, 2015
app pub date -
Jun 10, 2015
filing date -
Jun 12, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

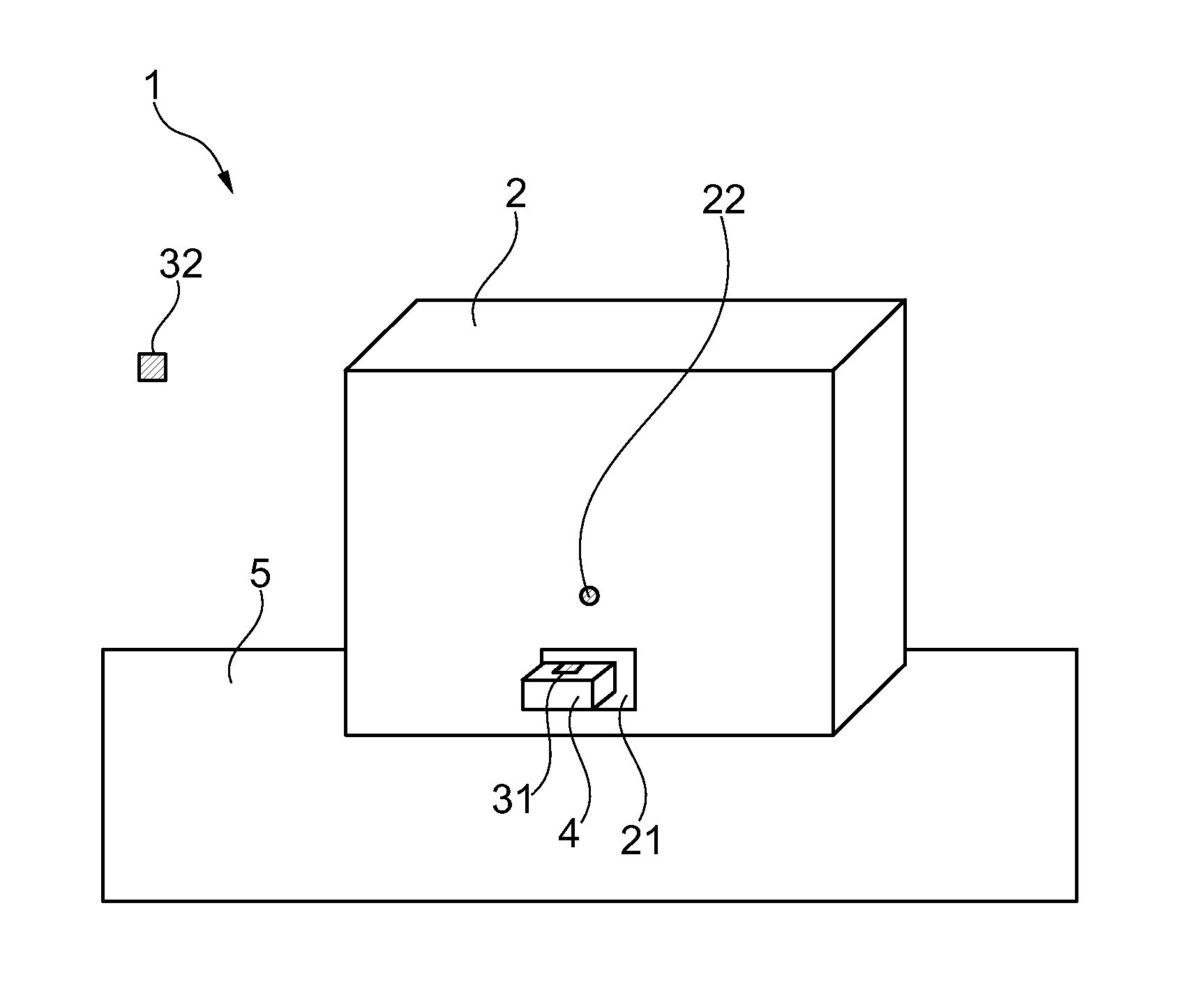

A device and a method for determining the position of a movable transportation unit are described. The device and the method are suitable for accurately detecting the position, automatically fixing loads in position and/or loading and unloading transportation units in aircraft in a relatively quick manner. The device includes a movable transportation unit and a detection means. The transportation unit has a recess for receiving a locking unit in order to lock the transportation unit. The detection means detects when the recess in the movable transportation unit is in a position for engagement with the locking unit. The method for determining the position of a movable transportation unit includes moving the transportation unit from an initial position into a target position, providing the locking unit at the target position of the transportation unit, and locking the locking unit by the engagement thereof in the recess in the transportation unit.
First Claim
Other Claims data not available
