Method for producing a curved honeycomb structure made from composite material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 17, 2015
app pub date -
Jan 29, 2014
filing date -
Jan 29, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

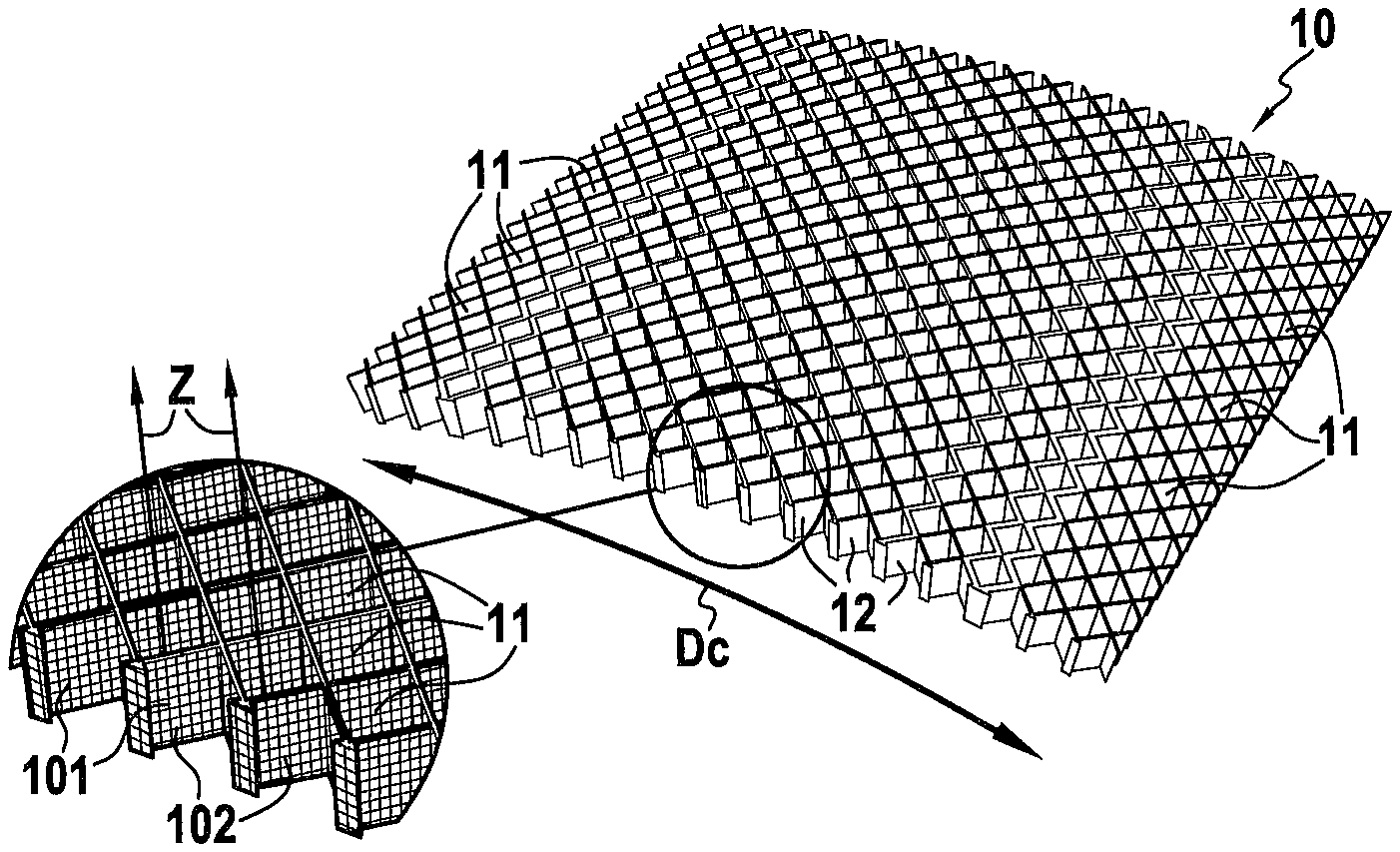

A method of fabricating a curved cellular structure includes making an expandable fiber structure by multilayer weaving between layers of warp yarns and layers of weft yarns, the structure having zones of non-interlinking extending in the thickness of the structure, the non-interlinking zones spaced apart from one another by portions of interlinking between layers of weft yarns, the portions of interlinking offset by one or more weft yarns in a direction parallel to the direction of the layers of weft yarns between each series of these planes; impregnating the fiber structure with a resin; expanding the fiber structure on support tooling to form a cell in the fiber structure at each zone of non-interlinking, the tooling also presenting a curved shape corresponding to the shape of the cellular structure that is to be fabricated; and polymerizing the resin of the fiber structure to form a curved cellular structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- D03D:WOVEN FABRICS; METHODS OF WEAVING; LOOMS
- C04B:LIME; MAGNESIA; SLAG; CEMENTS; COMPOSITIONS THEREO....
- B29C:SHAPING OR JOINING OF PLASTICS; SHAPING OF SUBSTAN....
- B29D:PRODUCING PARTICULAR ARTICLES FROM PLASTICS OR FRO....
- B29B:PREPARATION OR PRETREATMENT OF THE MATERIAL TO BE ....
- D06M:TREATMENT, NOT PROVIDED FOR ELSEWHERE IN CLASS D0....
- 2014 Application Filing Year
- D03D Class
- 204 Applications Filed
- 161 Patents Issued To-Date
- 78.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- D03D Class
- 50.75 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 7, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2031 |
