Plate type fuel reformer of fuel cell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 10, 2015
app pub date -
Jun 5, 2014
filing date -
Jun 5, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

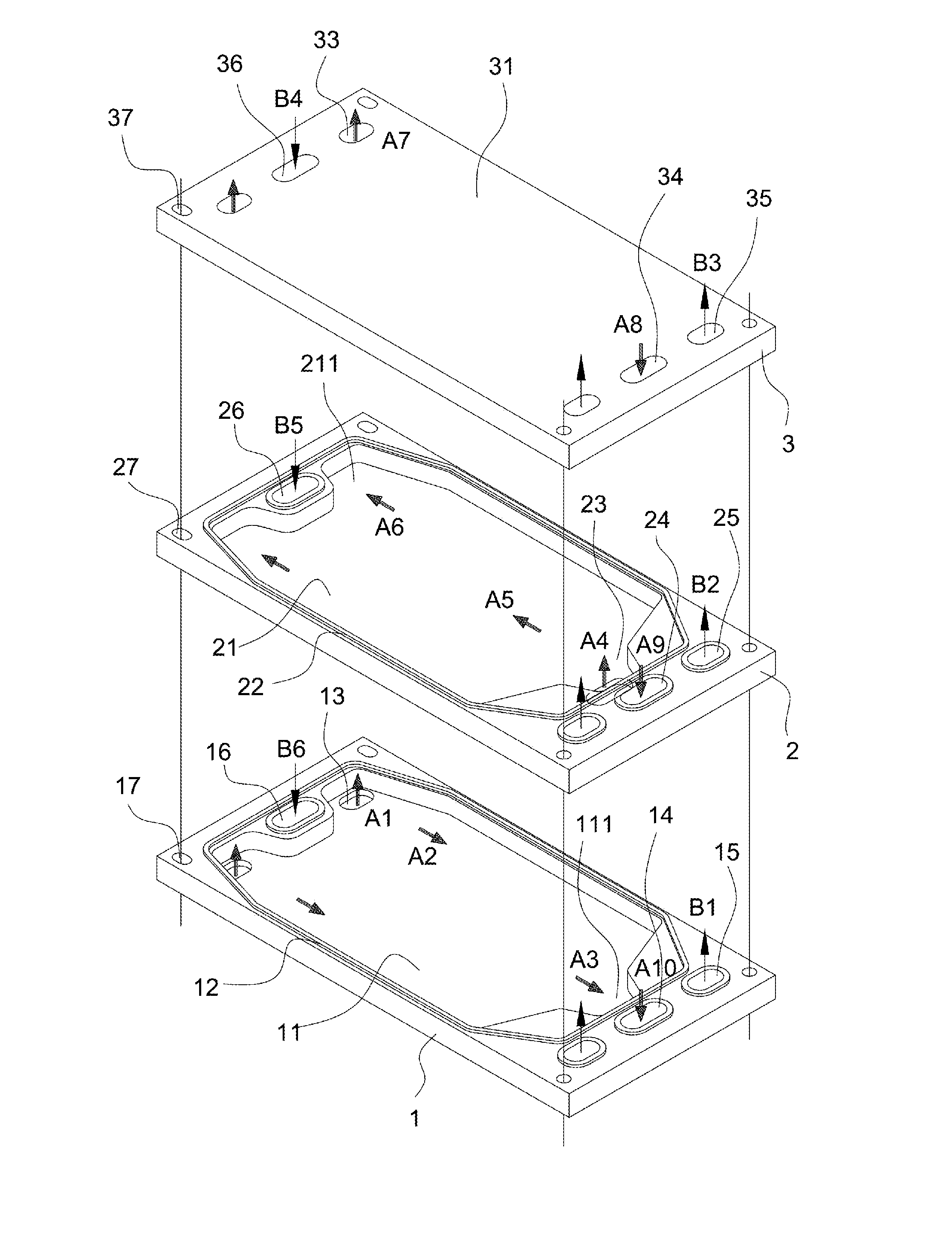

A plate type fuel reformer of fuel cells includes a reformer module stacked by multiple sheet components, and an engaging surface formed on a surface of the reformer module and adhered to a surface of the default fuel cell module in order to form a great thermally-conductive combination. Detachable connections are formed between each of the sheet components and between the sheet components and the fuel cells module. The edge of the reformer module is non-protruding from the side of the fuel cell module after connection. Multiple containing spaces are respectively formed between each of the sheet components for containing default catalyst units. Also, an independent air channel is formed for guiding outside air to into the fuel cell module and a fuel channel is formed for containing the default catalyst units and guiding outside fuel to react with the catalyst units to generate hydrogen gas and carbon monoxide.
