LIQUID CRYSTAL DISPLAY DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 17, 2015
filing date -
Nov 7, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

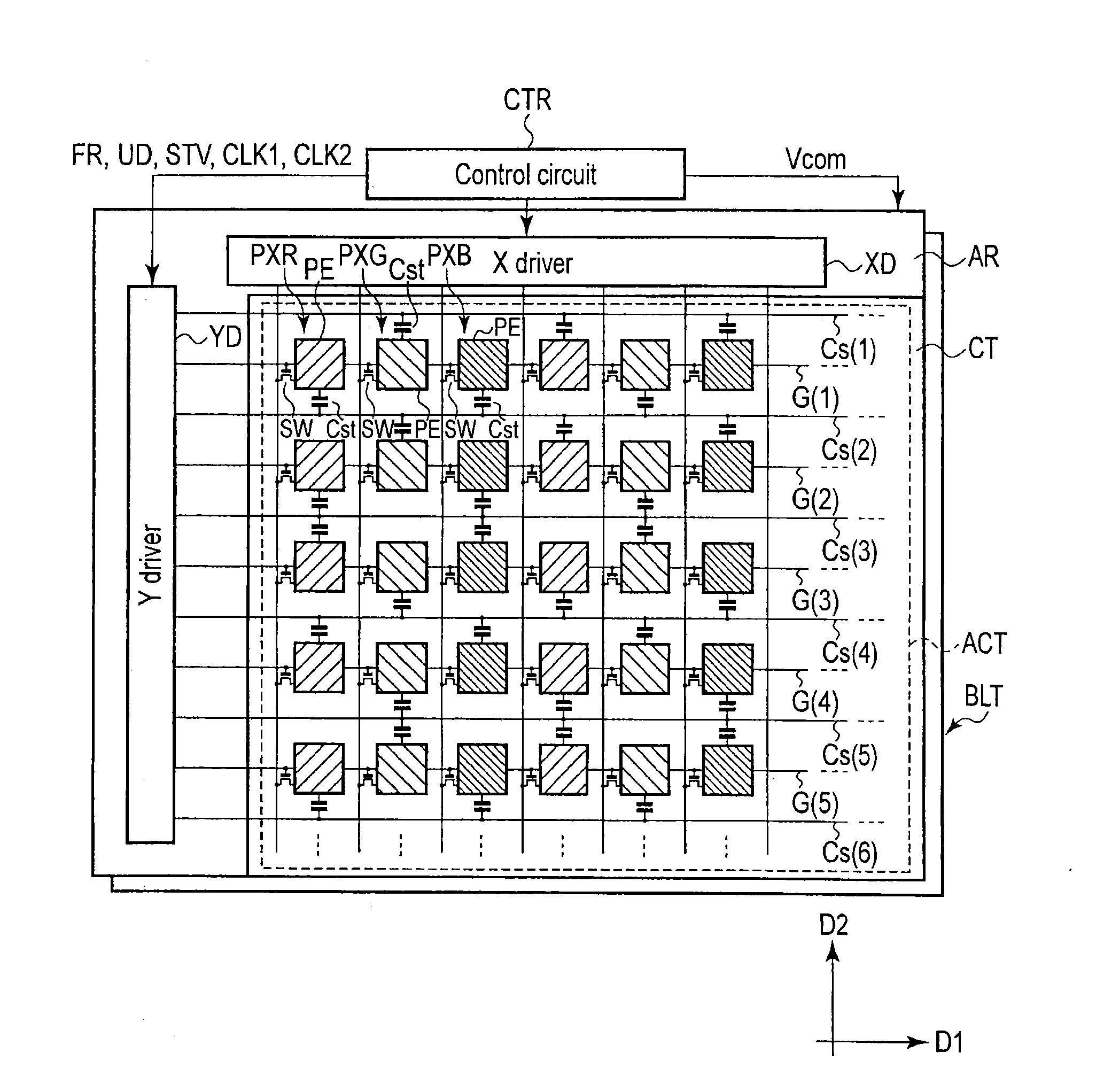

According to one embodiment, a display device includes an array substrate including pixel electrodes arranged in a matrix, gate lines and auxiliary capacitance lines extending a first direction, signal lines extending a second direction, and a driving circuit configured to drive the gate lines, the signal lines, and the auxiliary capacitance lines, a counter substrate arranged opposite the array substrate, a liquid crystal layer held between the substrates, and a controller configured to control the driving circuit in such a manner that a polarity of a signal supplied to each of the signal lines varies in units of horizontal periods during a frame period when the polarity control signal for the first scan is identical to the polarity control signal for the second scan.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G09G Class
- 10.86 % this patent is cited more than
- 10 Age
