CABLE CONNECTION CASING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 10, 2015
app pub date -
Jan 23, 2013
filing date -
Jan 23, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

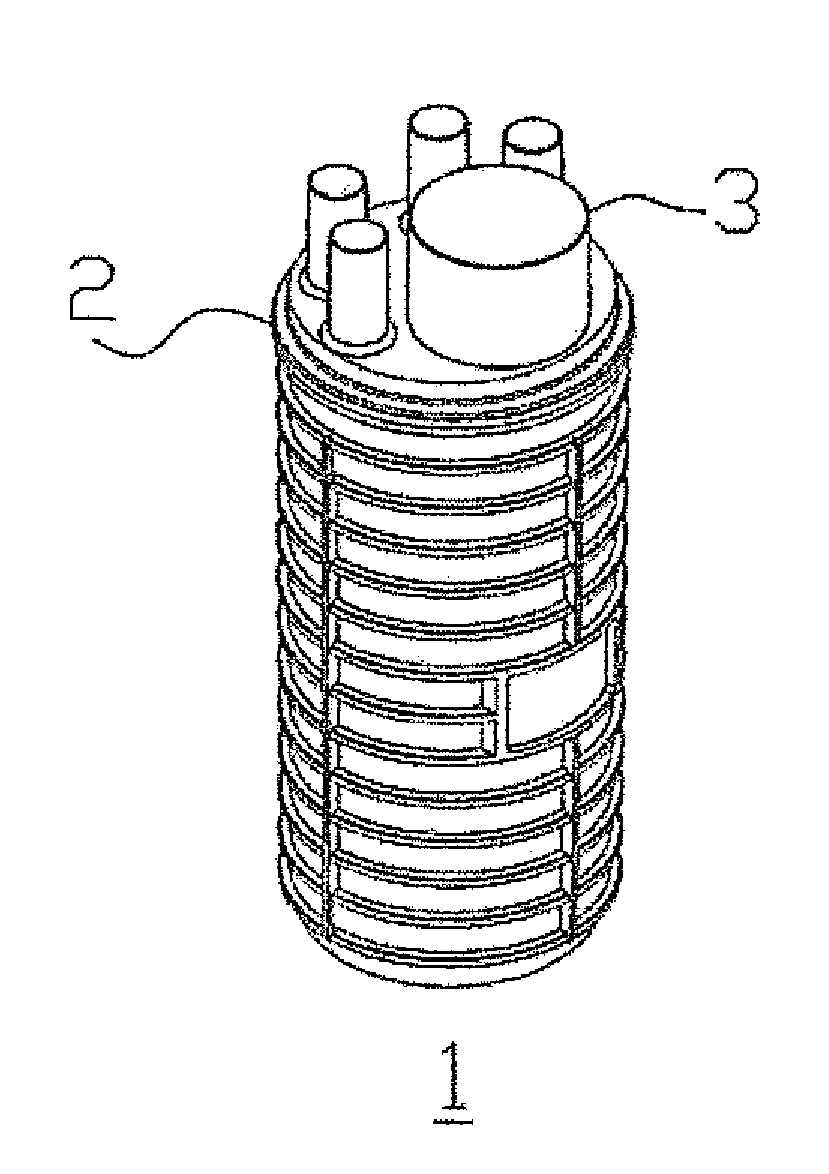

A cable splice box is disclosed. The cable splice box includes a pillar to form therein a waterproof structure. The pillar includes a pillar body having at least two longitudinal grooves, each of which has a bore diameter X configured to accommodate a cable segment; a longitudinal surface having at least two longitudinal slits, each of which has a width Y not less than X, corresponds to one of the two longitudinal grooves, and forms an opening thereon; and two longitudinal elastic pieces, each of which is disposed on one of the at least two longitudinal slits to keep the cable segment in the respective longitudinal groove. The cable splice box provides better operation, reduced cost and consistent construction quality.
