LIQUID SENSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 3, 2015
app pub date -
May 26, 2015
filing date -
May 29, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

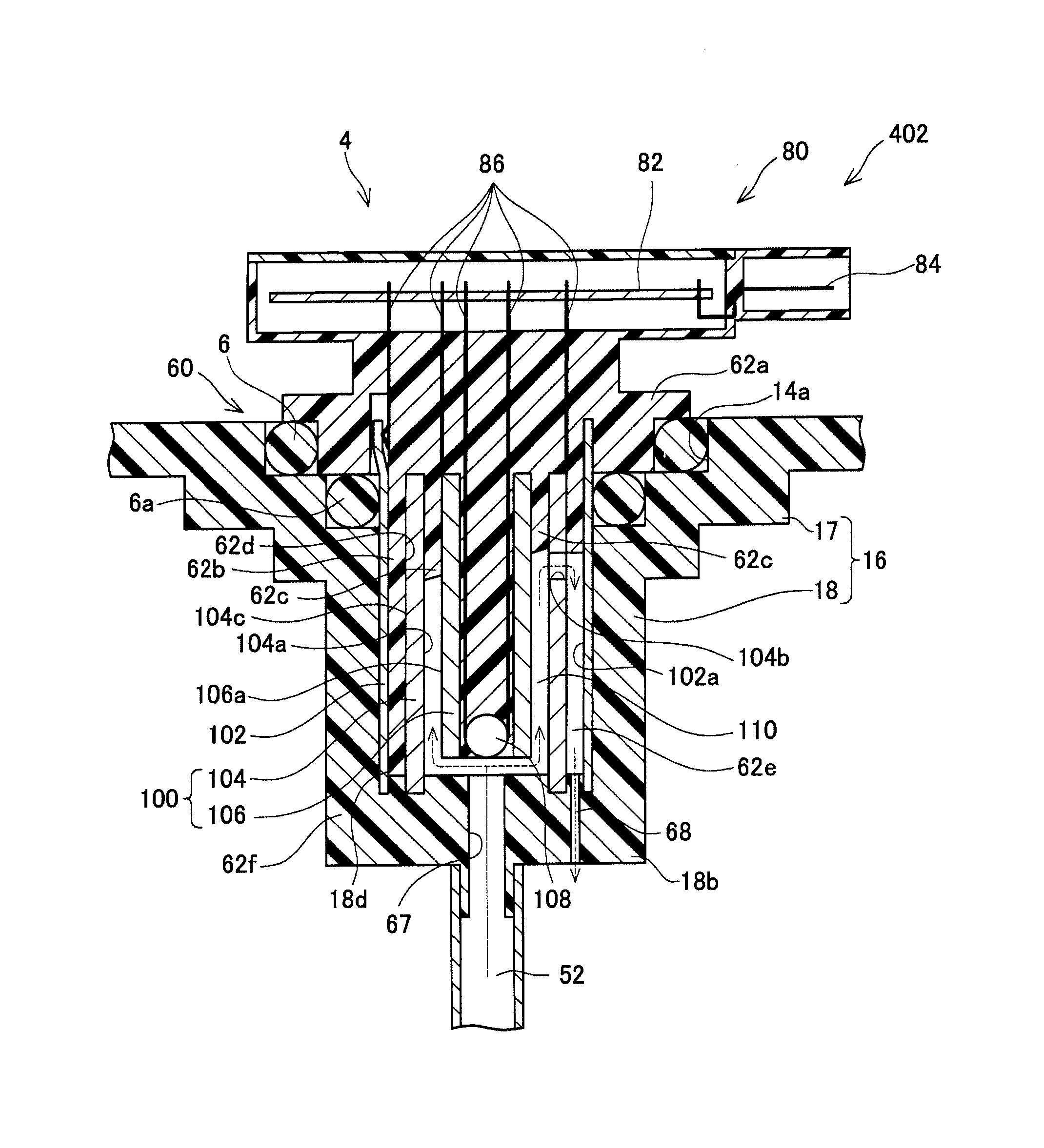

A sensor may be provided with a first electrode having a first opposing surface; a second electrode having a second opposing surface opposing the first opposing surface with an interval in between; an insulator accommodating the first electrode and the second electrode, and contacting a contact surface being a part of a surface of the first electrode other than the first opposing surface, or a part of a surface of the second electrode other than the second opposing surface, or a combination thereof; and a shield electrode surrounding the insulator. The shield electrode may have a third opposing surface opposing the contact surface via the insulator. The third opposing surface may contact the insulator.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01N Class
- 23.45 % this patent is cited more than
- 10 Age
