LIGHT EMITTING DISPLAY BOARD AND DISPLAY PANEL RETAINING INTERFACE FOR A DOMESTIC APPLIANCE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 3, 2015
app pub date -
May 30, 2014
filing date -
May 30, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

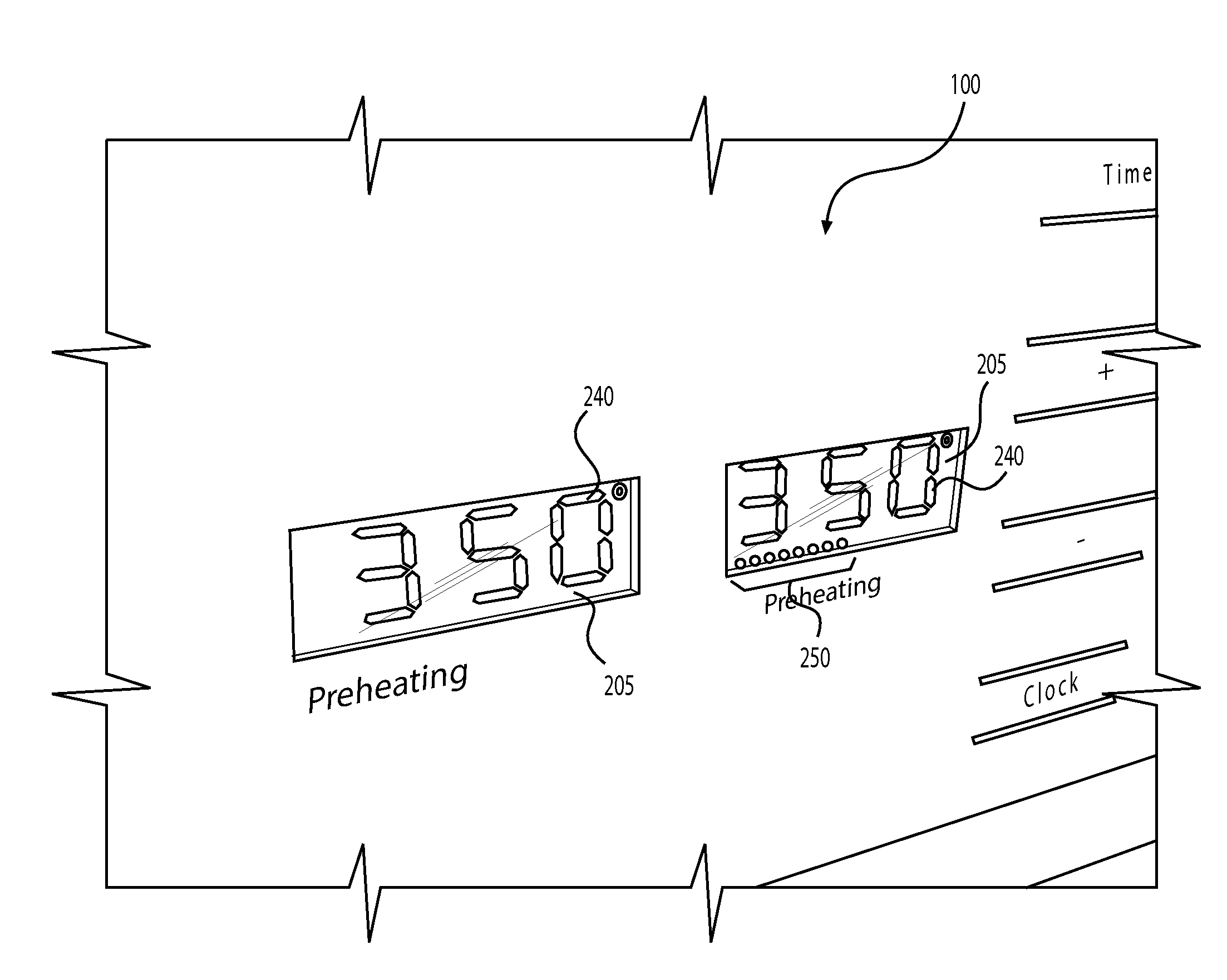

A domestic appliance is provided having an appliance body; a control panel mounted to the appliance body, the control panel having a front side visible to a user of the domestic appliance when the appliance is in an operating condition, and a back side facing the appliance body; a light box attached to the back side of the control panel, the light box having an opening that faces the back side of the control panel, a protrusion that protrudes in a direction away from the control panel and surrounds the opening; and a light emitting display board attached to the light box, the light emitting display board having a light source that emits light and directs the light toward the control panel. The light source is surrounded by the protrusion.
First Claim
Other Claims data not available
