Fluid control apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Nov 7, 2013
filing date -
Nov 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

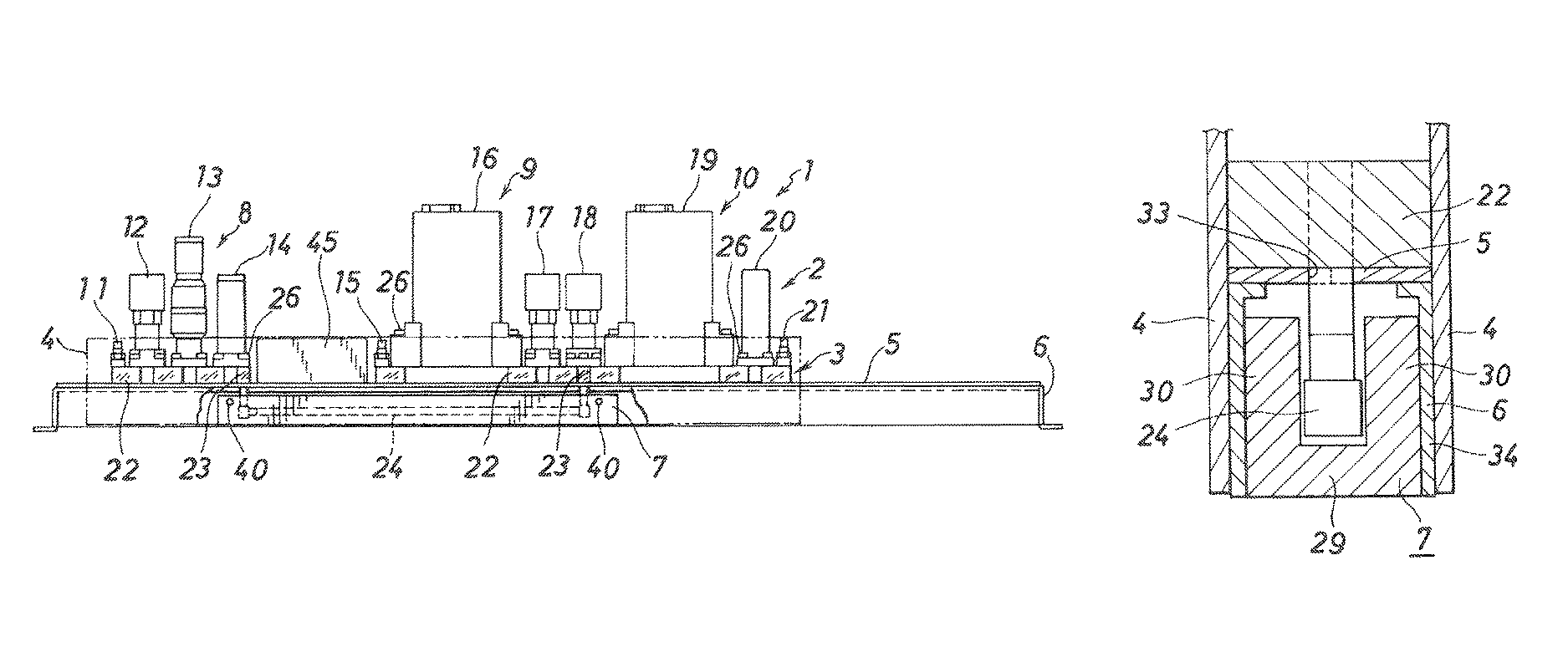

Provided is a fluid control apparatus in which a pipe heating member may be mounted or removed with flexibility (i.e., without affecting other components) while one line, composed of the plurality of fluid control devices arranged in series, as a unit may be added or modified readily. The apparatus includes: a plate-shaped support member 5 to which a plurality of passage blocks 22 are detachably mounted; a hollow metal mounting member 6 having an upper surface to which the support member 5 is secured and being detachably mounted to a base member; and a pipe heating member 7 fitted into the mounting member 6. The pipe heating member 7, including a bottom wall 29 and a pair of side walls 30, accommodates a pipe 24 between the side walls 30 and is fitted into the mounting member 6 with the pipe heating member 7 abutting the mounting member 6.
