Vacuum Ejector With Multi-Nozzle Drive Stage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 26, 2015
app pub date -
Dec 21, 2012
filing date -
Dec 21, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

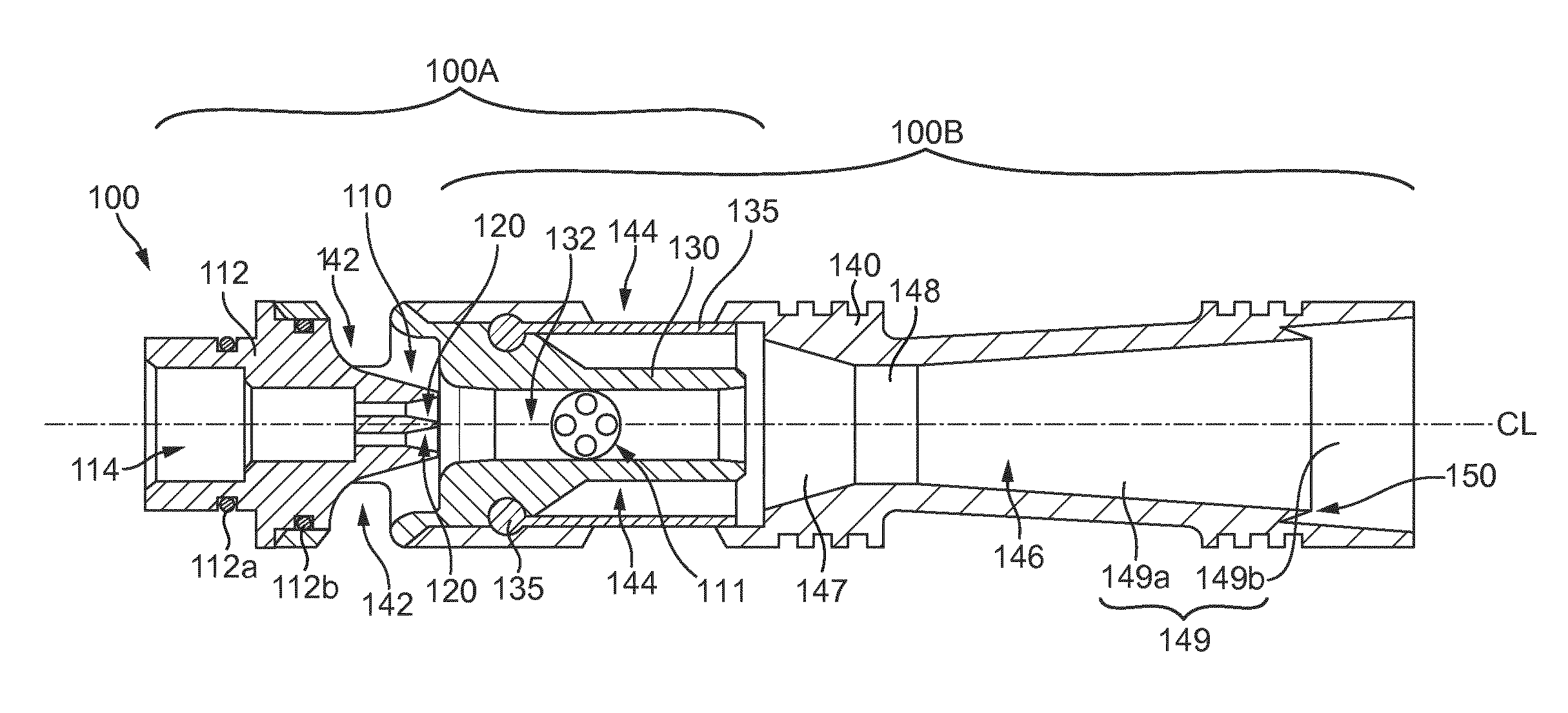

So as to reduce its size, the invention provides a multistage ejector for generating a vacuum across a first, drive stage comprising a drive nozzle array for generating drive flow of air from a compressed air source, the drive nozzle array including two or more nozzles arranged to feed respective air jets together substantially directly into a common outlet of the drive stage so as to entrain air in a volume surrounding the air jets into the drive flow in order to generate a vacuum across the drive stage, the outlet of the drive stage being the inlet of a converging-diverging nozzle of a second stage, the converging-diverging nozzle being arranged to direct said air as a second stage air jet substantially directly into an outlet of the second stage so as to entrain air in a volume surrounding the second stage air jet into the flow in order to generate a vacuum across the second stage.
