PROCESS FOR MOLDING A 3-DIMENSIONAL PART
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 26, 2015
app pub date -
Dec 18, 2013
filing date -
Dec 19, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

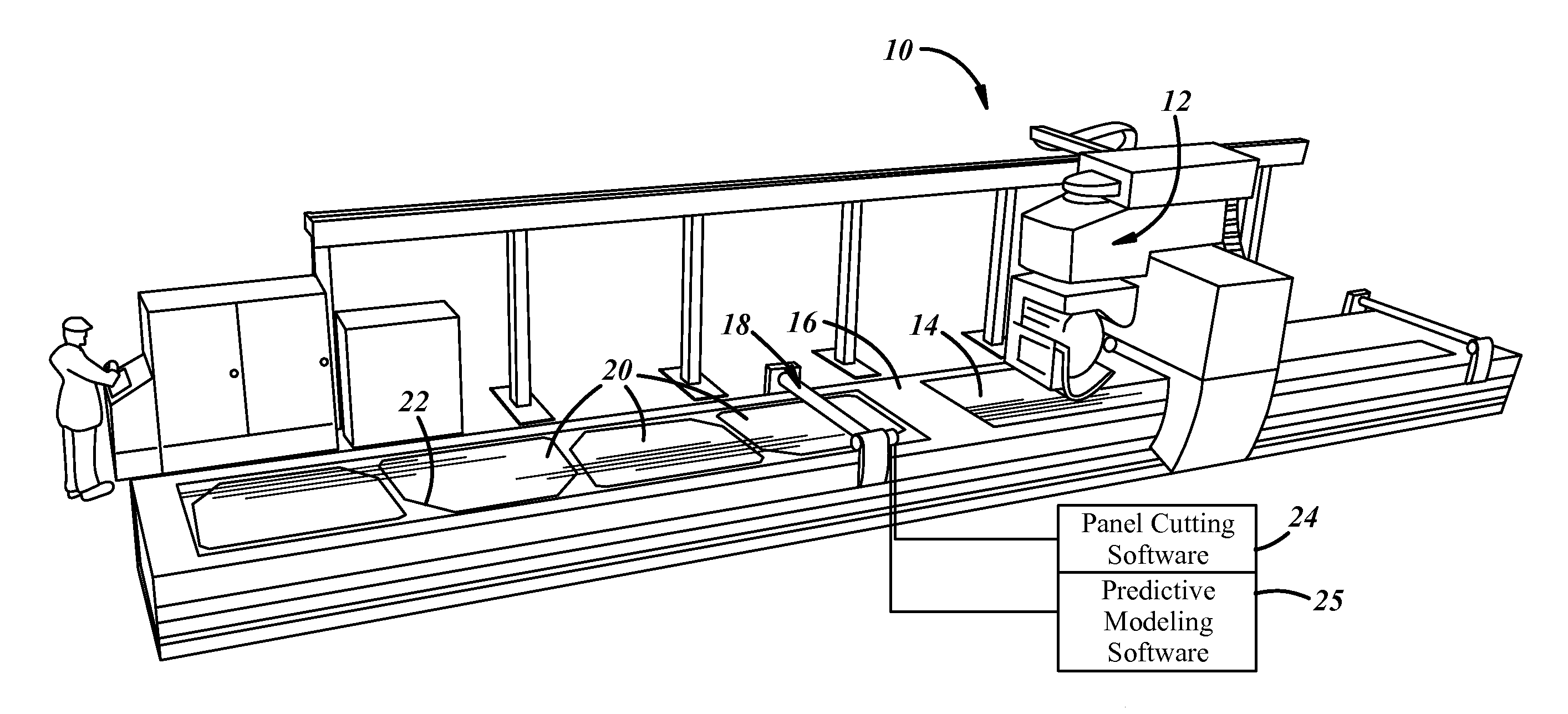

A process uses predictive modeling software for selectively applying relief cuts and tension to the fibers in a 2-dimensional panel prior to shaping the panel into a 3-dimensional part. The predictive modeling software identifies areas of fiber tension in the final molded product, and relief cuts are made in those areas. The plies are loaded into grippers attached to a supporting frame and predictive modeling software is used to identify areas of fiber compression in the final molded product. Tension is applied to the identified areas of fiber compression. The panel is molded in a form and cure press, and the tension is maintained on the material while closing the mold halves. The molded part is able to conform to the final mold shape without tearing in areas of tension and without material buildup in areas of compression in the final molded part or post mold distortion.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | A1 | EP2934860 | Dec 18, 2013 |
| WO | A1 | WO2014100127 | Dec 18, 2013 |
| CN | A | CN104918770 | Dec 18, 2013 |
International Classification(s)
- 2013 Application Filing Year
- B29C Class
- 3653 Applications Filed
- 3211 Patents Issued To-Date
- 87.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B29C Class
- 21.83 % this patent is cited more than
- 10 Age
