METHOD FOR MANUFACTURING HOLLOW HYDRO-FORMED PRODUCT using MULTI-TUBE ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 26, 2015
app pub date -
Feb 15, 2013
filing date -
Feb 13, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

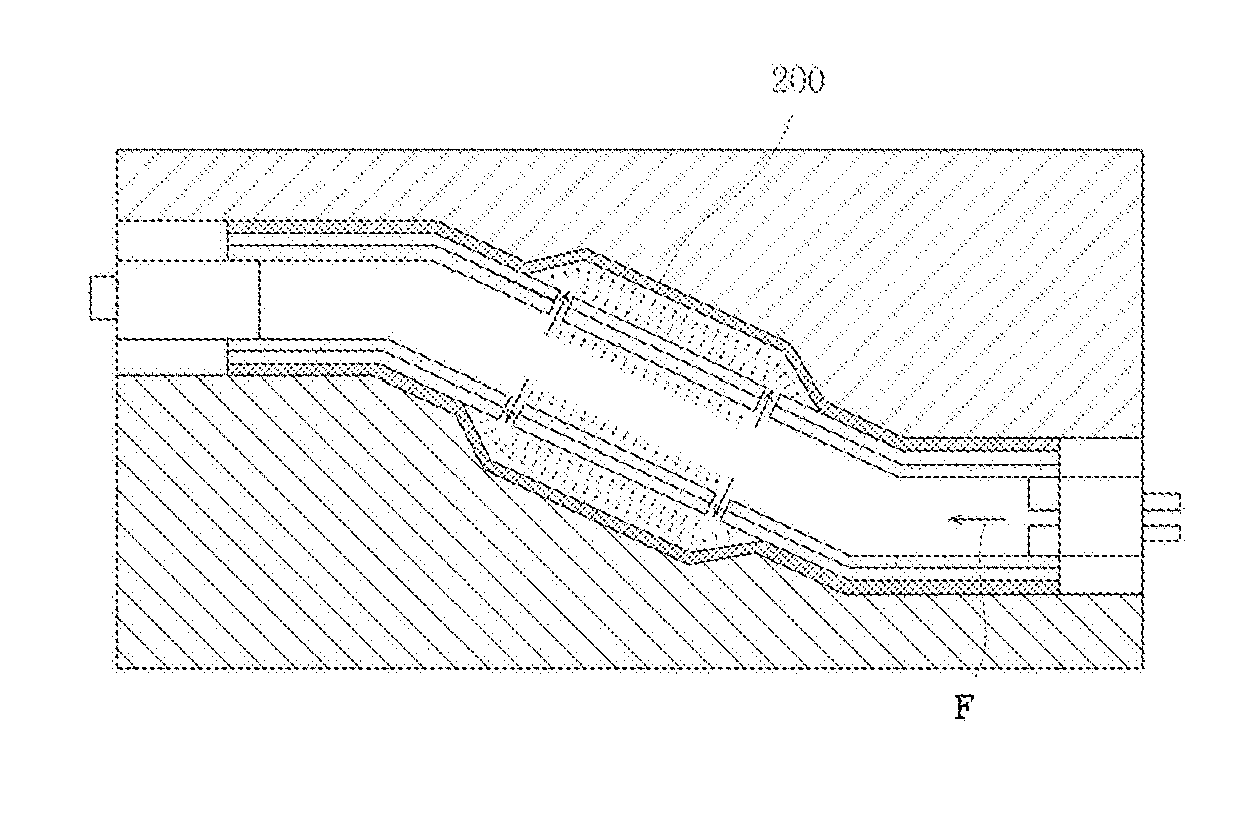

A method for manufacturing a hollow hydro-formed product using a multi-tube assembly is provided, which comprises the steps of: (a) stably placing a multi-tube assembly in a Die, the hollow inner tube having fluid channel holes radially formed therethrough; (b) injecting fluid into the inner periphery of the inner tube; (c) applying fluid pressure to the inner periphery of the outer tube by the fluid while the fluid is discharged through the fluid channel holes of the inner tube; and (d) obtaining a formed product having an intended outer peripheral shape completed according to diameter-enlargement and plastic deformation of the outer tube. The inner periphery of the outer tube is pressed and hydro-formed by discharging the fluid through the fluid channel holes of the inner tube formed through the inner tube of the multi-tube assembly.
