FLOW FIELDS FOR USE WITH AN ELECTROCHEMICAL CELL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 19, 2015
app pub date -
May 13, 2015
filing date -
May 15, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

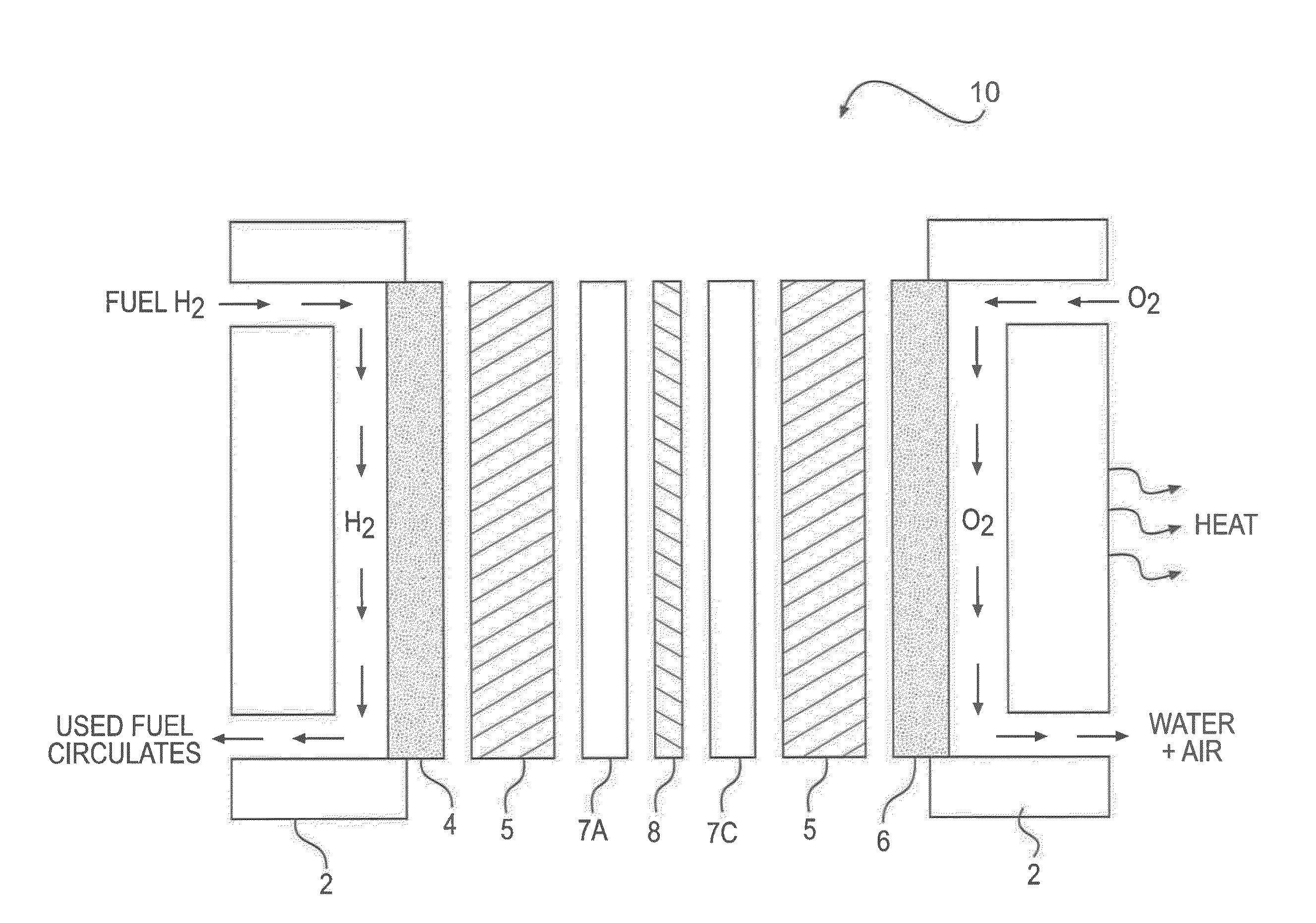

A flow field for use in an electrochemical cell is disclosed. The flow field includes a porous metallic structure including an inlet port and an outlet port. The flow field further includes a plurality of first channels formed in the structure. Each of the plurality of first channels extends from a first proximal end in fluid communication with the inlet port and terminates at a first distal end within the structure. The flow field also includes a plurality of second channels formed in the structure. Each of the plurality of second channels extends from a second distal end in fluid communication with an outlet port and terminates at a second proximal end within the structure.
First Claim
Other Claims data not available
