CLEANING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 19, 2015
app pub date -
Dec 9, 2013
filing date -
Dec 7, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

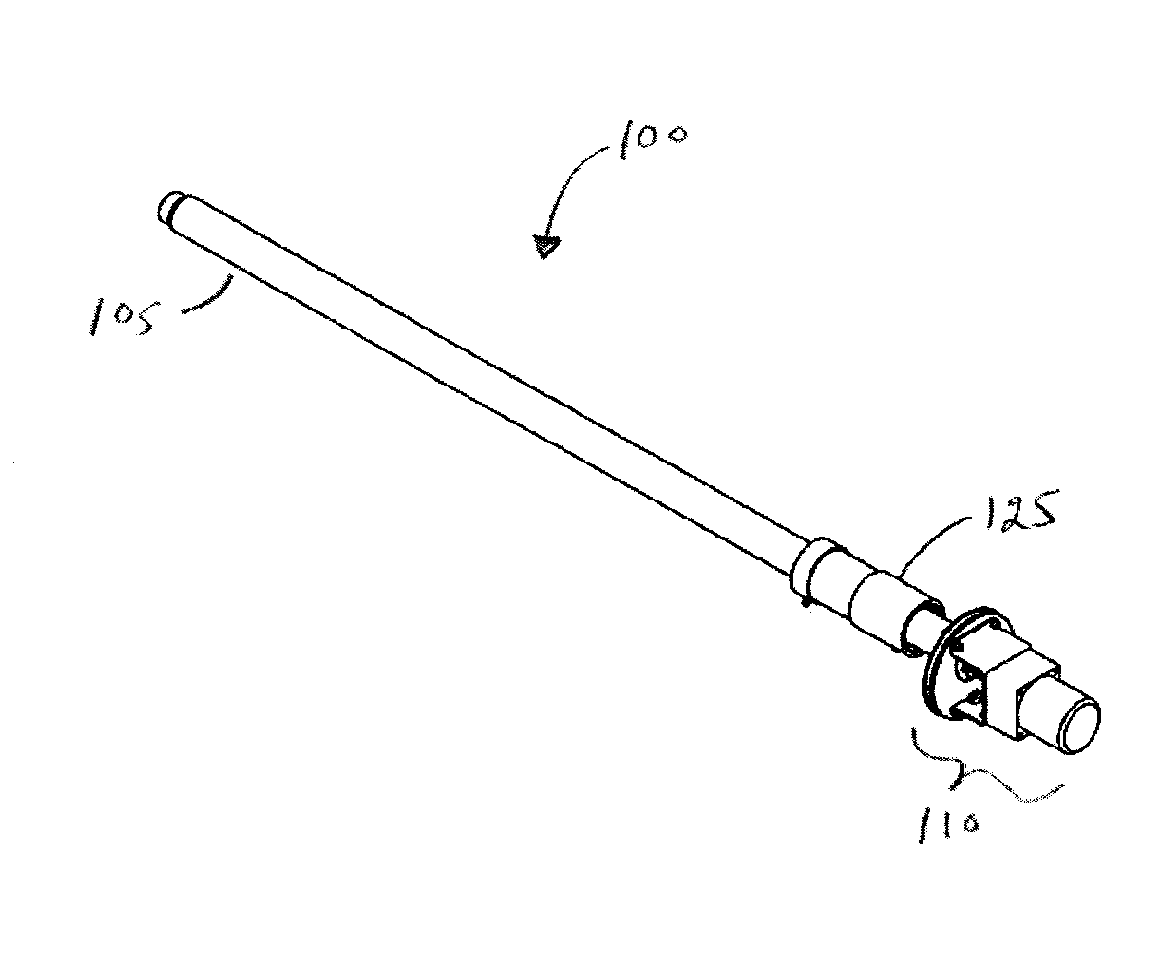

There is disclosed a cleaning apparatus for a radiation source assembly in a fluid treatment system. The cleaning system comprises: a cleaning carriage comprising at least one cleaning element for contact with at least a portion of the exterior of the radiation source assembly; a rodless cylinder comprising an elongate housing having a longitudinal axis; a slidable element disposed on an exterior surface of the elongate housing, the slidable element being: (i) coupled to the cleaning carriage, and (ii) magnetically coupled to a driving element disposed within the elongate housing, the driving element comprising a friction modifying element in contact with an interior surface of the elongate housing to define a first frictional resistance in a rotational direction about the longitudinal axis and a second frictional resistance in an axial direction along the longitudinal axis, the friction modifying element configured such that the first frictional resistance is greater than the second friction resistance; and an elongate motive element coupled to the driving element.
First Claim
Other Claims data not available
