Controlling Gate Formation for High Density Cell Layout
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 26, 2015
filing date -
Dec 15, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

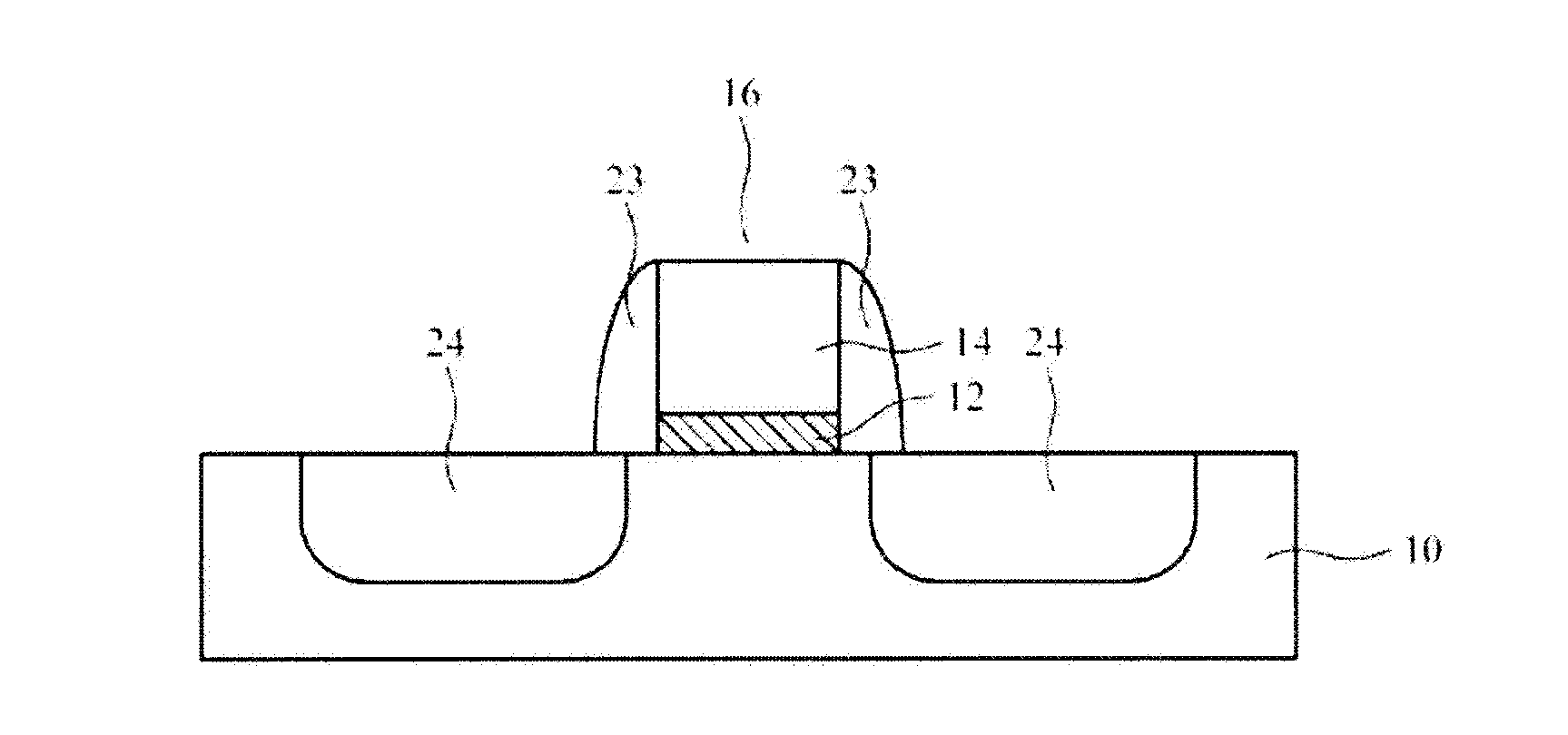

Methods of forming a semiconductor structure and the semiconductor structure are disclosed. In one embodiment, a semiconductor structure includes a substrate having a first active region, a second active region, and an insulating region separating the first and the second active regions. The structure further includes a vertical gate structure extending over the first and the second active regions and the insulating region, and a horizontal gate structure extending over the insulating region between the first and the second active regions.
