ELECTROPHORETIC DISPLAY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 15, 2015
filing date -
Jun 3, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

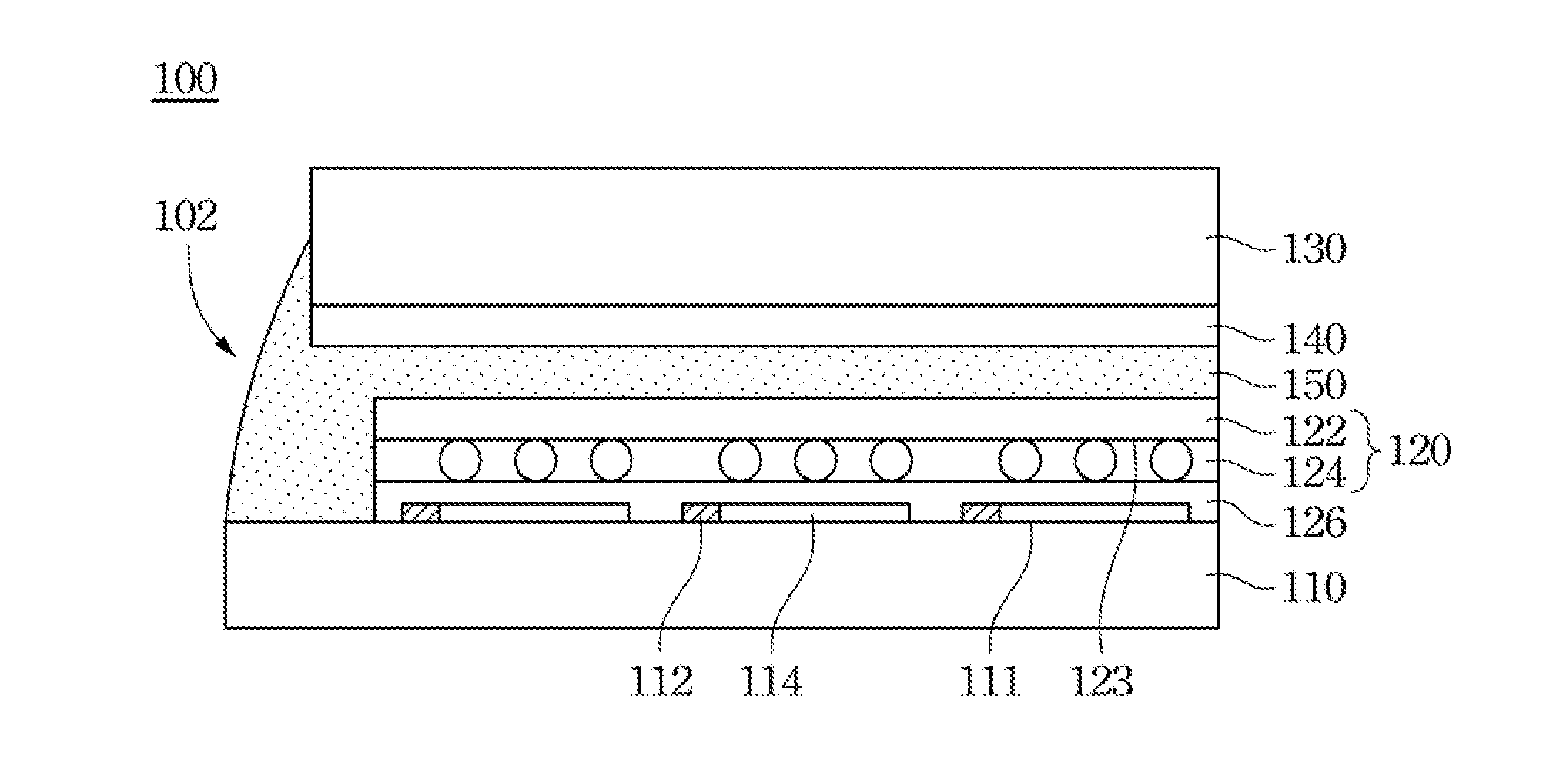

Disclosed herein is an electrophoretic display, which includes a first substrate, an electrophoretic layer, a second substrate, a stress controlling layer and an adhesive layer. The first substrate includes at least one active device and at least one pixel electrode electrically coupled to the active device. The electrophoretic layer is disposed above the pixel electrode. The second substrate is disposed above the electrophoretic layer. The stress controlling layer is formed on a lower surface of the second substrate. The adhesive layer is disposed between the surface stressed layer and the electrophoretic layer, and is in contact with the stress controlling layer and the electrophoretic layer. The adhesion between the stress controlling layer and the adhesive layer is about 75% to 125% of the adhesion between the electrophoretic layer and the adhesive layer.
First Claim
Other Claims data not available
