Air nozzle arrangement in a fluidized bed boiler, grate for a fluidized bed boiler, and a fluidized bed boiler
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Nov 7, 2013
filing date -
Nov 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

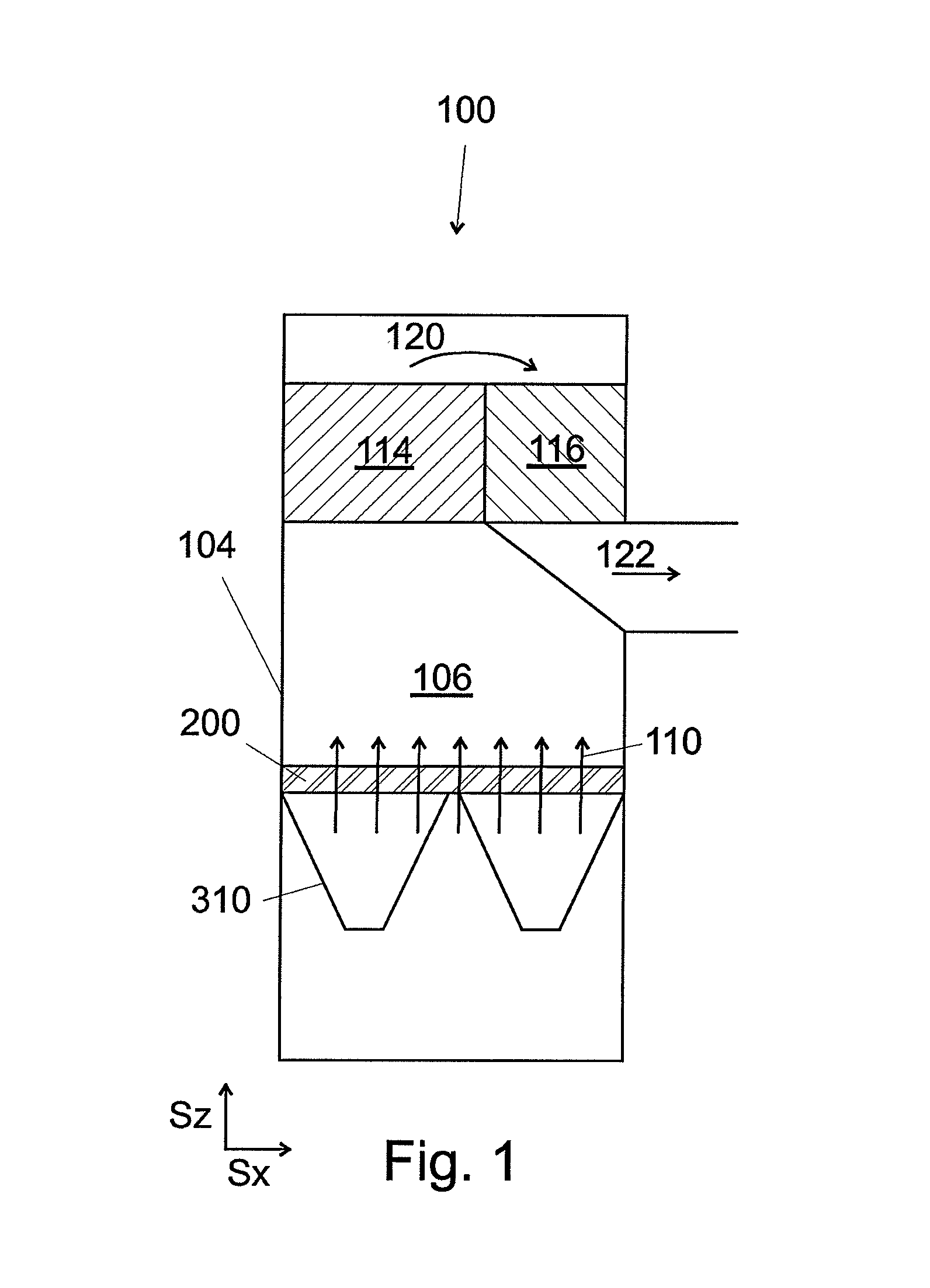

An air nozzle arrangement for a fluidized bed boiler, comprising an air feed pipe and an air nozzle which limit an air feed duct configured to supply air to the furnace of the fluidized bed boiler. The air nozzle arrangement comprises a surface configured to guide coarse material along said surface. At least part of said surface is thermally insulated from the air nozzle and/or the air feed pipe. Furthermore, at least part of said surface is configured to protect at least part of said air nozzle and/or air feed pipe. Thus, the temperature of said surface is configured to be high when the fluidized bed boiler is in operation, whereby the solidification of molten material of the fluidized bed in the air nozzle arrangement is reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F23H Class
- 5 Applications Filed
- 4 Patents Issued To-Date
- 80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23H Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
