METHOD AND DEVICE FOR MANUFACTURING A COMPOSITE PART BY DRAPE FORMING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 17, 2014
filing date -
Jan 17, 2012
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

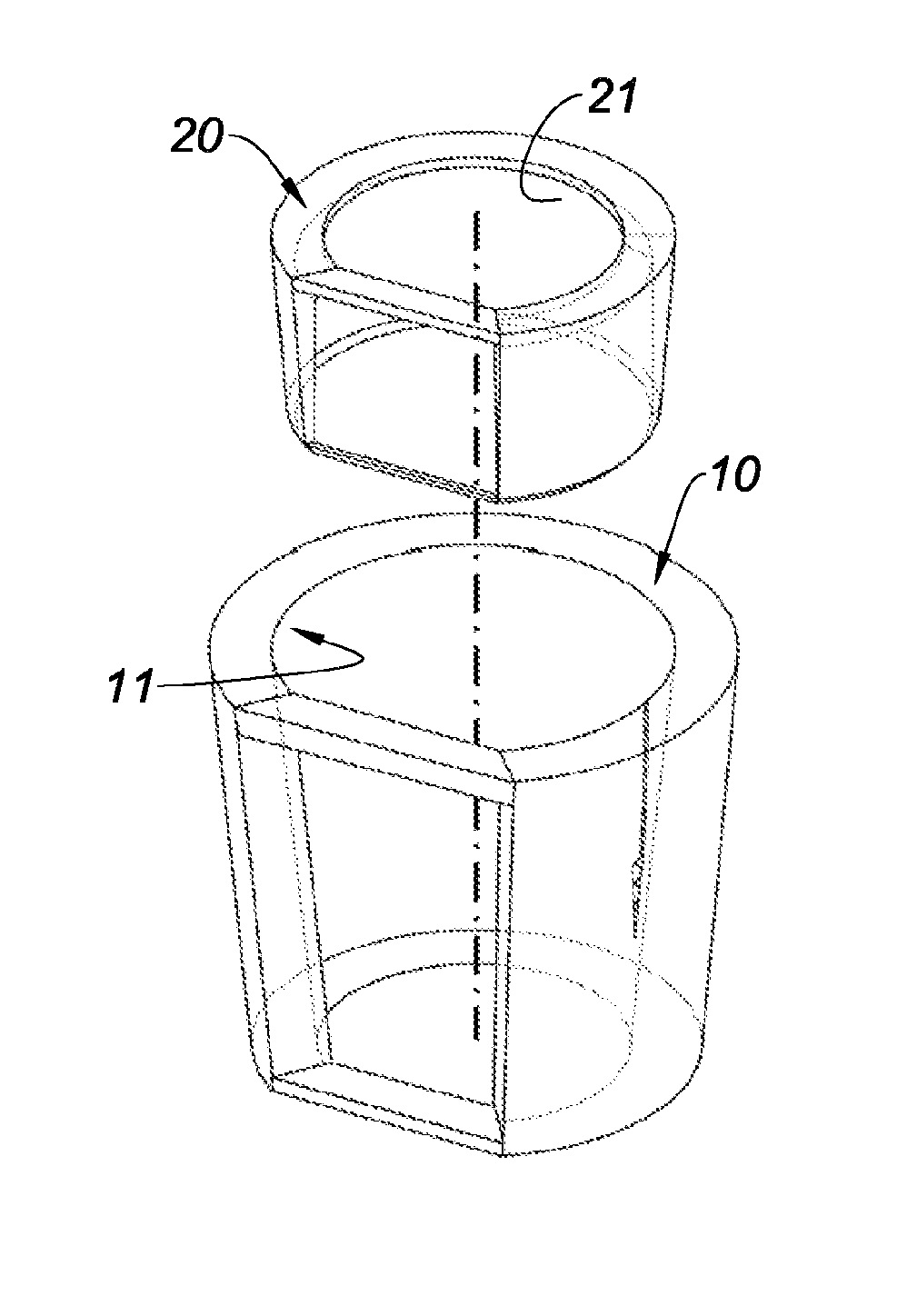

The present disclosure relates to methods for manufacturing a part made from a composite material by means of a drape forming operation as well as to a tool for implementing the methods. In particular, the part has at least one inner convex surface. The methods use at least one outer manufacturing mold and at least one intermediate mold. The inner surface of the outer manufacturing mold substantially defines outer lines of the part to be manufactured, and the intermediate mold is arranged opposite the inner surface of the outer manufacturing mold such that an inner surface of the intermediate mold at least partially defines the molding lines of an intermediate portion of the part to be produced.
