METHOD OF PREPARING A SUBSTRATE FOR NANOWIRE GROWTH, AND A METHOD OF FABRICATING AN ARRAY OF SEMICONDUCTOR NANOSTRUCTURES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 29, 2015
app pub date -
Apr 21, 2015
filing date -
Apr 25, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

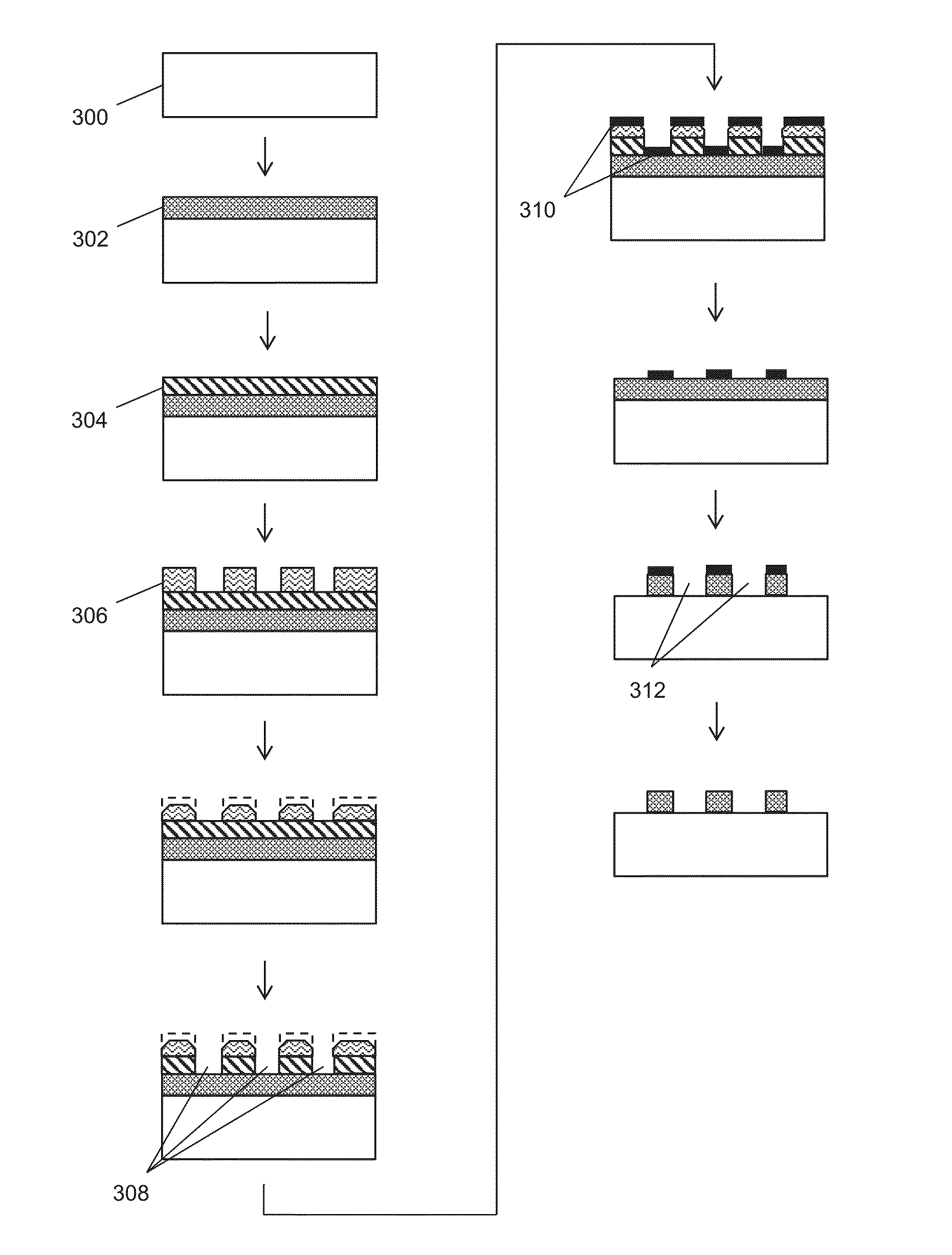

The present invention provides a reproducible preliminary in-situ oxide removal step for patterned self-assisted III-V semiconductor nanowire growth. Here “in-situ” means located within the same treatment environment or apparatus as the nanowire growth process, e.g. with a molecular beam epitaxy (MBE) apparatus or the like. Providing an in-situ process may prevent the formation of a thin oxide layer during transfer of the substrate into the nanowire growth apparatus.
