METHODS AND SYSTEM FOR CONTROLLING A LINEAR MOTOR FOR A DEEP WELL OIL PUMP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 26, 2013
filing date -
Nov 26, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

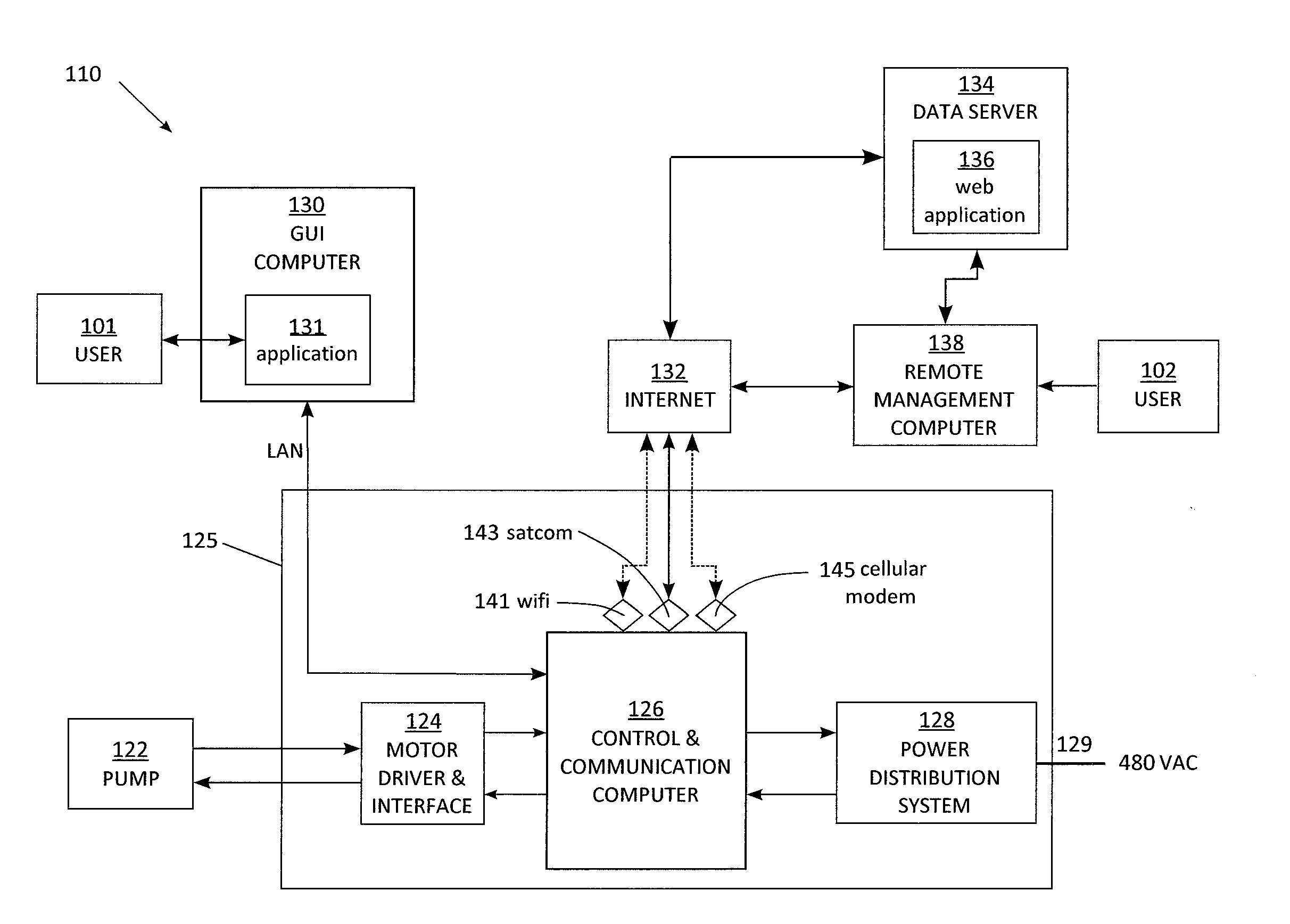

A deep well linear motor pump system (122) comprising a downhole linear electric motor (222) having a stator and a shaft configured to move linearly relative to the stator, a downhole pump (220) having an inlet (227), an outlet (228), and a piston coupled to the linear motor shaft, a motor driver system (318) connected with the linear motor and configured to provide drive commands to the linear motor, a surface control computer (126) connected with the motor drive system and configured to control the linear motor, a sensor system (224) communicating with the control computer and configured to sense operating parameters of the linear motor, and the sensor system comprising a synchronous serial interface encoder configured to sense position of the motor shaft and a temperature sensor configured to sense the temperature of the motor.
First Claim
Other Claims data not available
